Step 1. Face screw on WIFI antenna toward bolt of port on rear panel. Rotate according to the

figure until the antenna is fixed in place.

Step 2. After WIFI antenna is fixed on WIFI port on rear panel, you can adjust direction of WIFI

antenna corresponding to actual need.

3.3.2 Remove WIFI Antenna

Please see Figure 3- 7 Remove WIFI antenna to remove the antenna.

Step 1. Hold threaded end of WIFI antenna, rotate it according to direction in the figure until WIFI

antenna is removed from bolt of port.

Step 2. Take down WIFI antenna from port on rear panel.

Install Cable

Please follow the steps listed below to install the cable. See Figure 3- 8 I/O port.

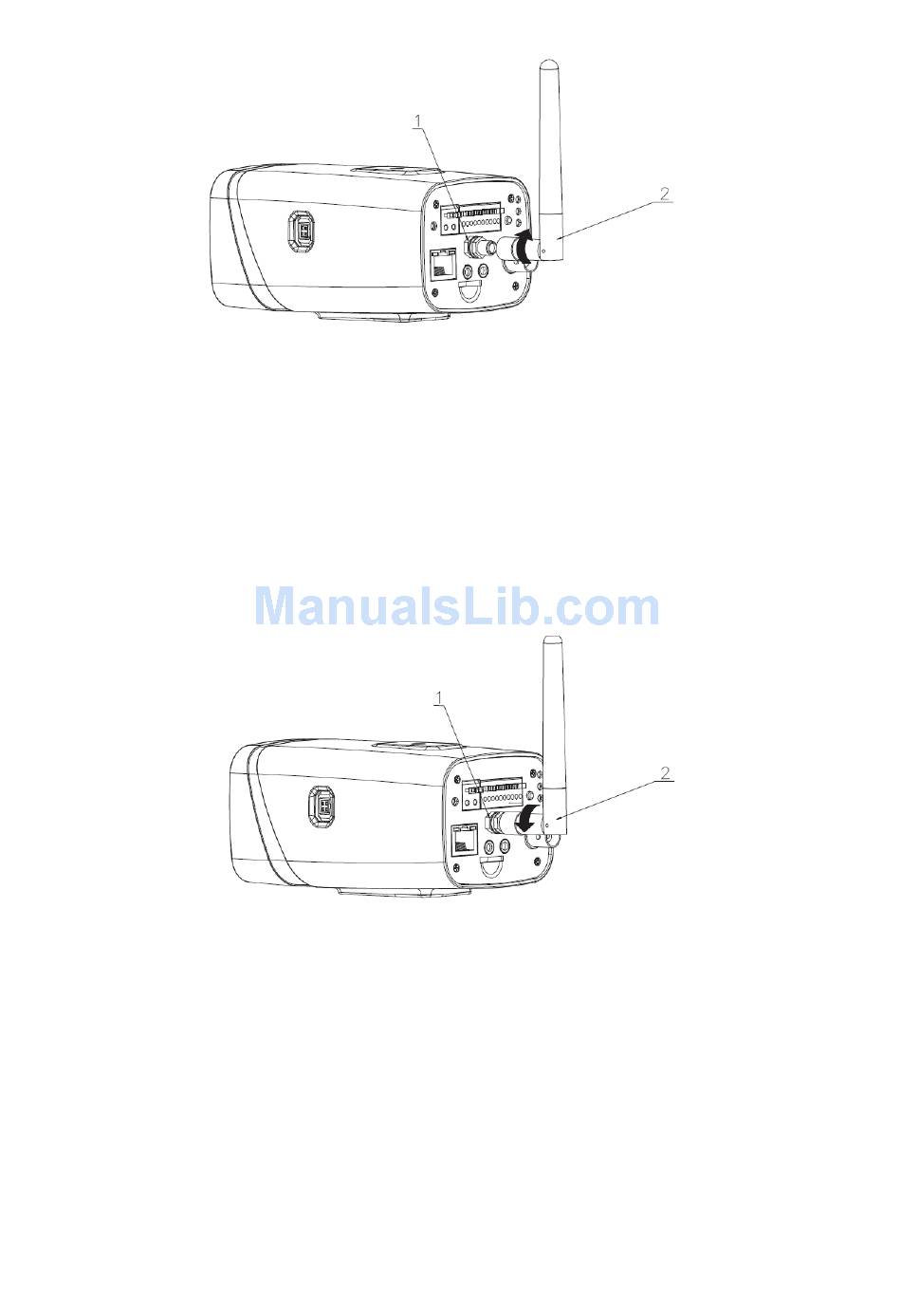

Figure 3- 6 WIFI antenna installation

Figure 3- 7 Remove WIFI antenna
