Quick Reference and
Installation

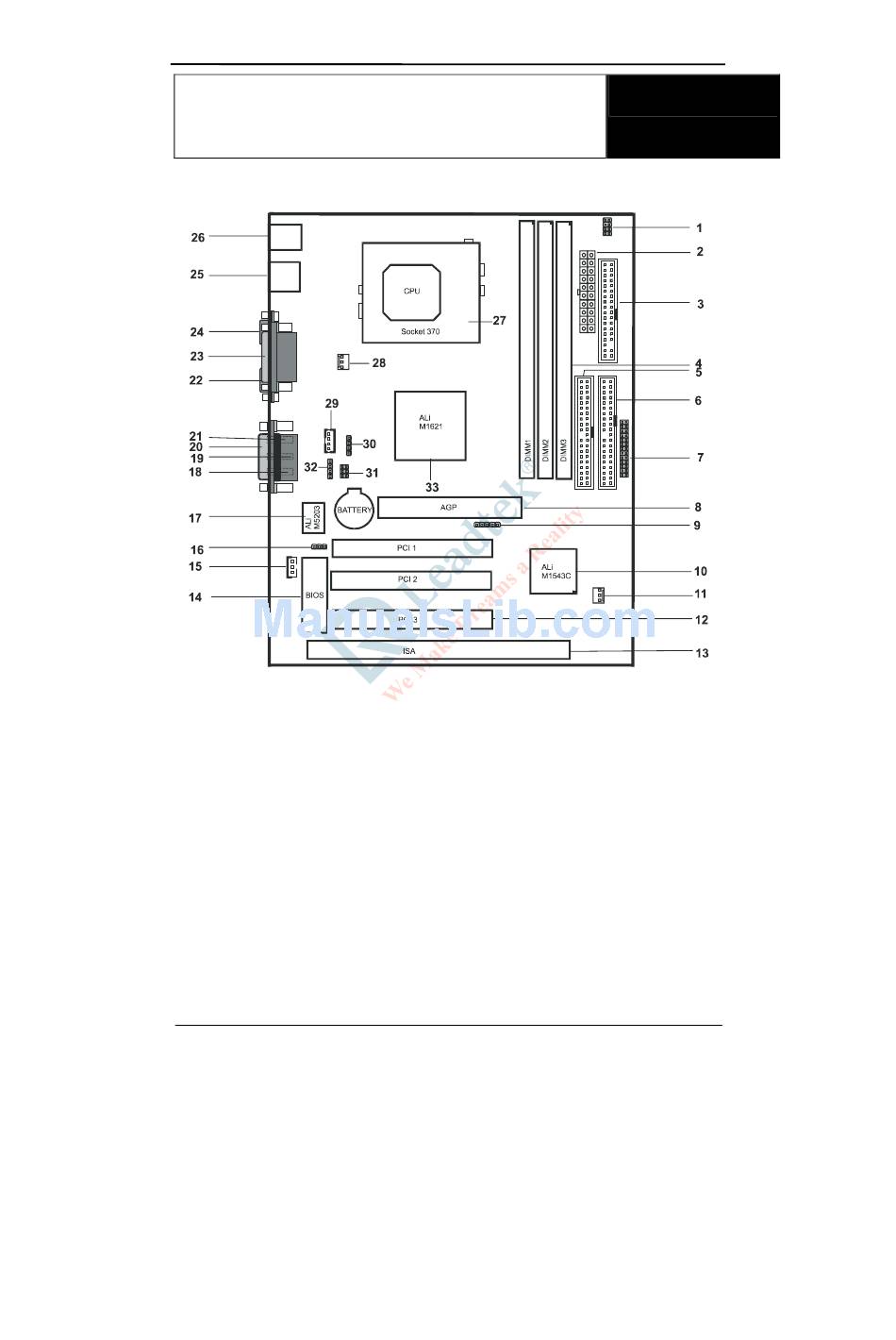

WinFast 6000ABX Mainboard Layout
1. CPU Core/Bus Speed Ratio jumper (SW1)
2. ATX Power Connector (XJ1)
3. Floppy Disk Connector (FDD)
4. DIMM Sockets (DIMM1, DIMM2, DIMM3)
5. Secondary IDE Connector (IDE 2)
6. Primary IDE Connector (IDE 1)
7. Case Signal Connectors (JP20)
8. AGP Slot
9. Infrared Connector (FIR/SIR)
10. ALi M1543C Chip (South Bridge)
11. System Fan Connector (SYSFAN)
12. PCI Slots (PCI 1, PCI 2, PCI 3)
13. ISA Slot
14. Mainboard BIOS
15. Wake On Lan Connector (JP13)
16. Clear CMOS Data jumper (JP12)
17. ALi M5203 (Audio) Chip
18. Microphone Input Port (Mic in)
®
WinFast 6000ABX User's Manual
Chapter 1
19. Audio Sources Input Port (Line in 1)
20. Game (Midi/Joystick) Port
21. Audio Output Port (Line Out 1)
22. COM2 Connector
23. Printer Port Connector
24. COM1 Connector
25. USB 1, USB 2 Connectors (J2)
26. PS/2 Mouse (top), PS/2 Keyboard (bottom)
Connectors (J1)
27. CPU Socket 370
28. CPU Fan Connector (CPUFAN)
29. CD-jack/Sony/IDE (CD2)
30. CD-jack/Panasonic (CD1)
31. S/PDIF Input (JP4), S/PDIF Output (JP5)
32. Auxiliary Audio input (AUX)
33. ALi M1621 Chip (North Bridge)
