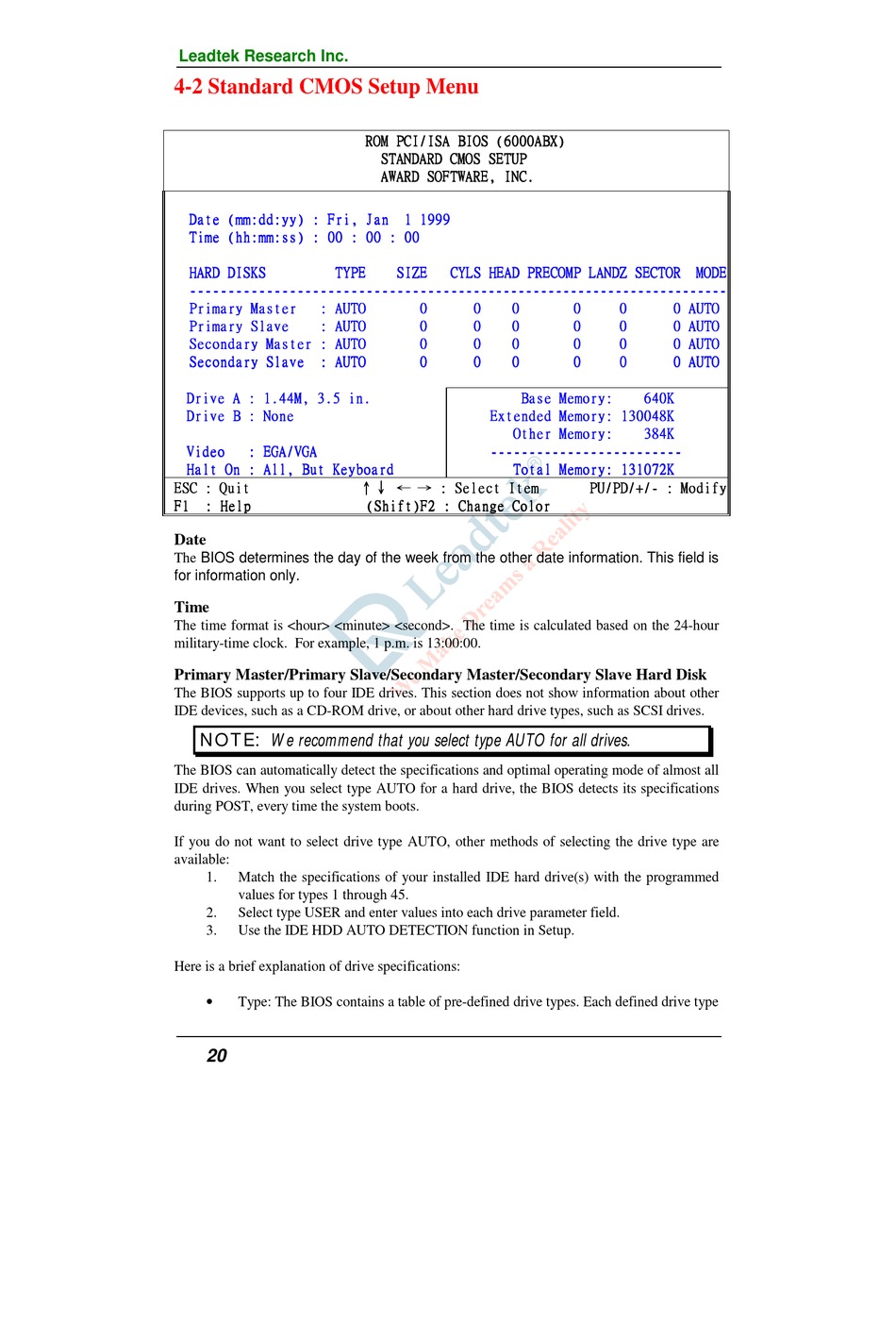

4-2 Standard CMOS Setup Menu

Date (mm:dd:yy) : Fri Date (mm:dd:yy) : Date (mm:dd:yy) : Date (mm:dd:yy) : Fri Fri, Jan Fri
Time (hh:mm:s Time (hh:mm:ss) : Time (hh:mm:s Time (hh:mm:s s) : s) : 00 s) : 00 : : : : 00 00 00
HARD DISKS HARD DISKS HARD DISKS HARD DISKS TYPE TYPE TYPE TYPE
----------------------------------------------------------------------- ----------------------------------------------------------------------- ----------------------------------------------------------------------- -----------------------------------------------------------------------
Primary Master Primary Master Primary Master Primary Master : AUTO : : : AUTO AUTO AUTO
Primary Slav Primary Slave Primary Slav Primary Slav e e e : AUTO : : : AUTO AUTO AUTO
Secondary Master : AUTO Secondary Master : Secondary Master : Secondary Master : AUTO AUTO AUTO
Secondary Slave Secondary Slave Secondary Slave Secondary Slave : : : : AUTO AUTO AUTO AUTO
Drive A : Drive A : 1.44M, 3.5 in. Drive A : Drive A : 1.44M, 3.5 in. 1.44M, 3.5 in. 1.44M, 3.5 in.
Drive B : None Drive B : None Drive B : None Drive B : None
Video Video Video Video : EGA/VGA : EGA/VGA : EGA/VGA : EGA/VGA
Halt On : All, But Keyboard Halt On : All Halt On : All Halt On : All , But Keyboard , But Keyboard , But Keyboard
ESC : Quit ESC : Quit ESC : Quit ESC : Quit
F1 F1 F1 F1 : Help : Help : Help : Help
Date
The BIOS determines the day of the week from the other date information. This field is
for information only.
Time
The time format is <hour> <minute> <second>. The time is calculated based on the 24-hour
military-time clock. For example, 1 p.m. is 13:00:00.
Primary Master/Primary Slave/Secondary Master/Secondary Slave Hard Disk
The BIOS supports up to four IDE drives. This section does not show information about other
IDE devices, such as a CD-ROM drive, or about other hard drive types, such as SCSI drives.
NOTE: We recommend that you select type AUTO for all drives.
The BIOS can automatically detect the specifications and optimal operating mode of almost all
IDE drives. When you select type AUTO for a hard drive, the BIOS detects its specifications
during POST, every time the system boots.
If you do not want to select drive type AUTO, other methods of selecting the drive type are
available:
1. Match the specifications of your installed IDE hard drive(s) with the programmed
values for types 1 through 45.
2. Select type USER and enter values into each drive parameter field.
3. Use the IDE HDD AUTO DETECTION function in Setup.
Here is a brief explanation of drive specifications:
•
Type: The BIOS contains a table of pre-defined drive types. Each defined drive type
