Contec CMS-60C Instructions Manual page 11

Medical Test Supply
Medium priority indicating that prompt operator response is required.
When operating at the beginning, the operator inserts his finger, and setup the Spo2 ALM HI
lower than the current measured value, then the machine will start alarm. The pulse rate
alarm test is the same with the above.

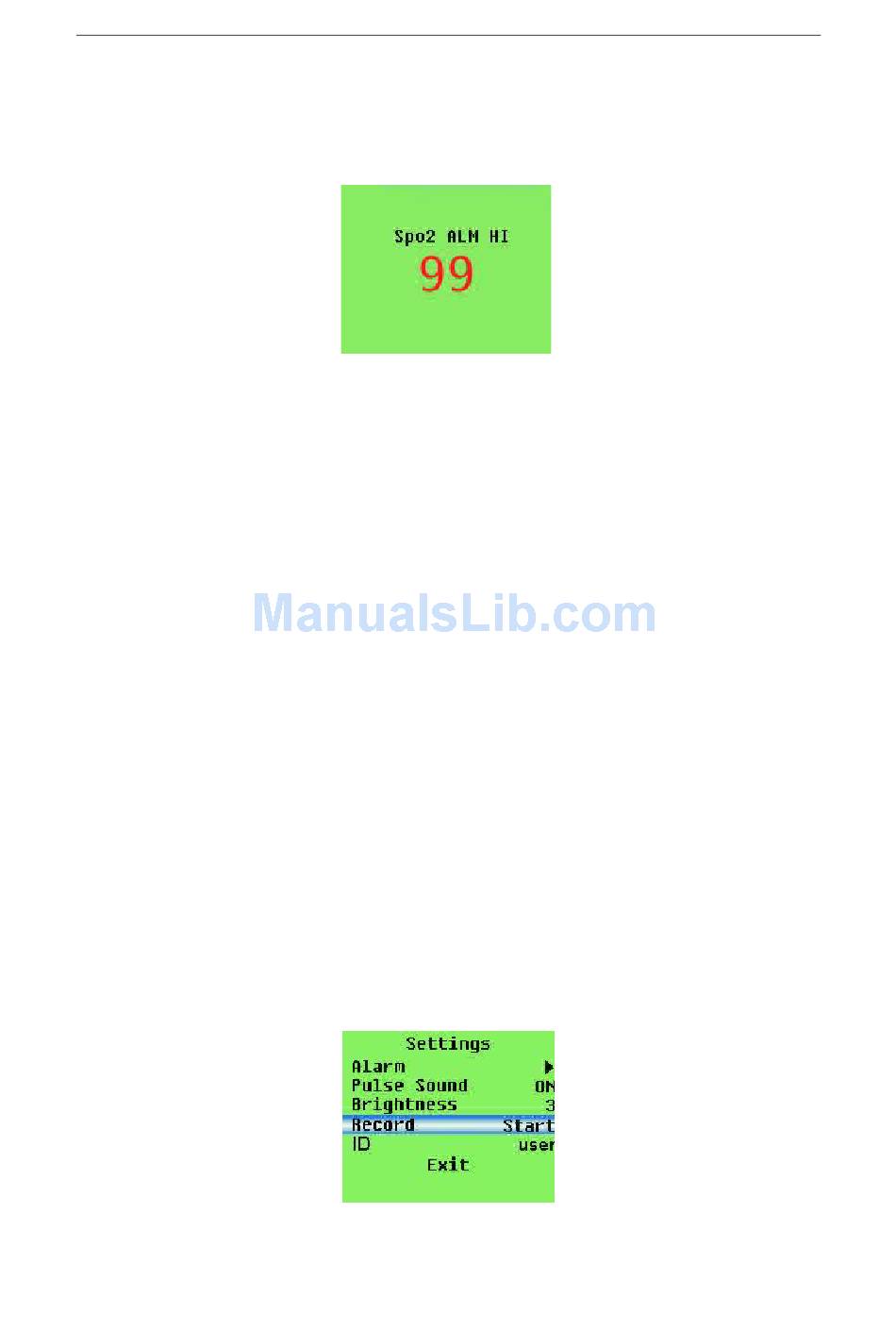

Figure 8.
b. The alarm state setting
Press the"up button"or"down button",move the menu choice bar to "Alarm",then choose the alarm
state (on/off) by pressing the "menu button", choose "on "to start the alarm function, and choose
"off" to close it for good.
b) Pulse sound indication setting
On the main menu interface,press the"up button"or"down button",move the menu choice bar to"Puls
e Sound", then choose the pulse sound indication state (on/off) by pressing the "menu button",press
"on" to start the function, and press "off" to close it.
c) Backlight adjustment
On the main menu interface,press the"up button"or"down button",move the menu choice bar to
"Brightness", then press the"menu button"to change the number in order to adjust the brightness of s
creen.
d) Data storage setting
This device has the function of 24 hours data storage , it has the capability of accurately storing
pulse rate and SpO data, then transmit the data to computer with the data line for replay and
2
analysis.
a. On the main menu interface,press the"up button"or"down button",move the menu choice bar t
o"Record", then press the"menu button"again to enter the dialog box of figure 9:if it is in recording s
tate,the"Stop"is displayed on menu;if it is not in recording state,the"Start"is displayed on menu.
Figure 9.
b. When the"Start"is displayed on the menu,if the memory still have the former data in storage ,the
CMS-60C
