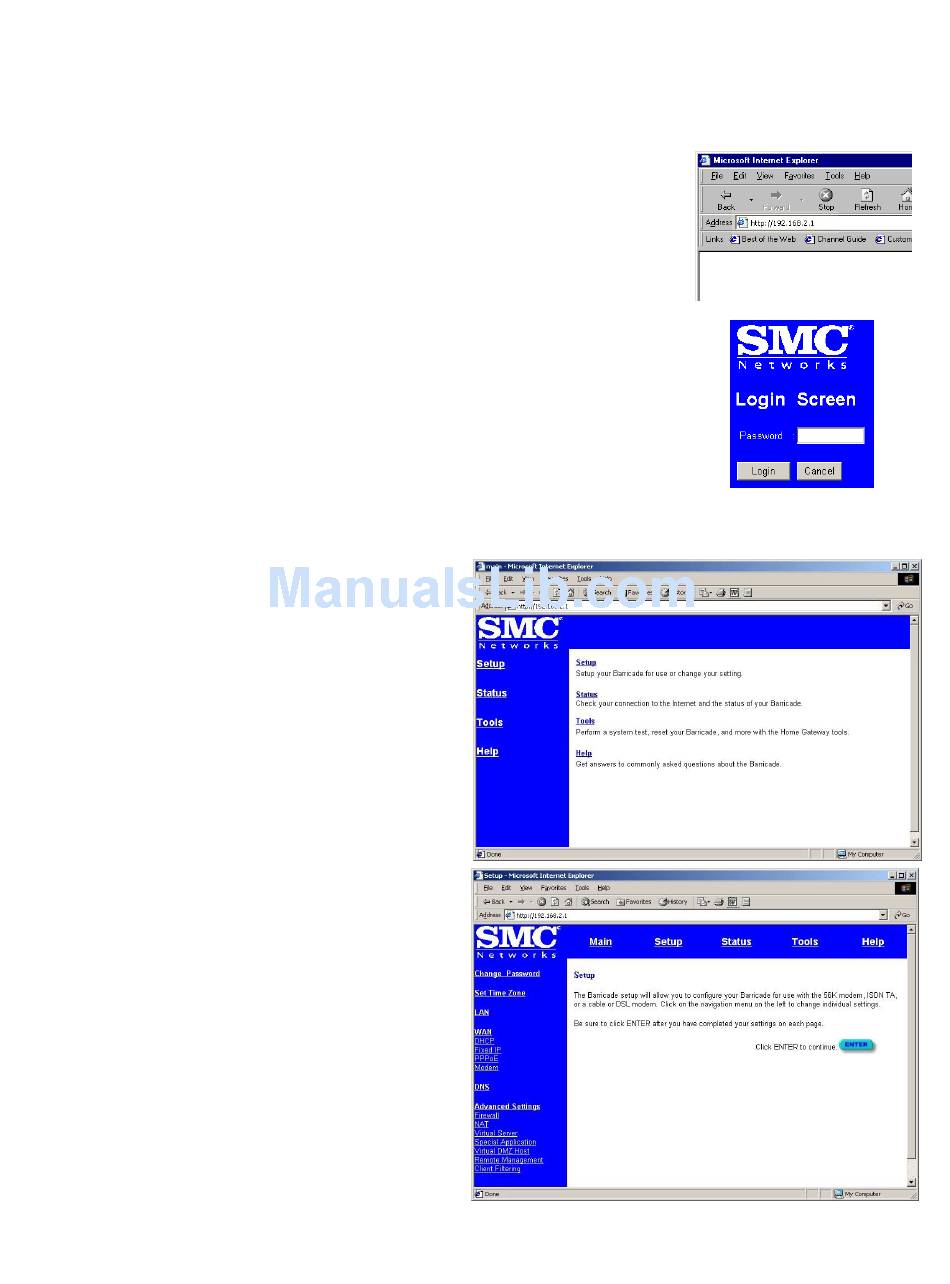

Configuring Your Barricade - SMC Networks SMC7004ABR Quick Installation Manual

Configuring Your Barricade

Now that you have successfully configured your computer and retrieved your new network
settings from your Barricade, you are ready to configure the Barricade's settings for your LAN.
1. Open your Web browser (i.e., Internet Explorer or Netscape Navigator) and click the stop
button.
2. In the "Address" field type "http://192.168.2.1" and press
<ENTER>.
3. The Barricade login screen will appear. Leave the Password field
empty and click on "login". There is no password by default. For
security reasons, you should assign a password as soon as possible.
Note that the password login in case sensitive.
4. On the main page of the Barricade Web
console, click "Setup."
5. The Barricade's automated setup
process will take you through each step
for setting up your Barricade. Click
"Enter" to start the process.
Page 21
