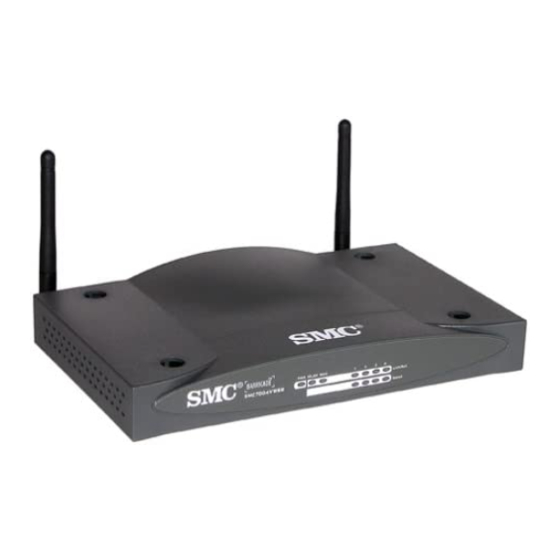

Barricade
Wireless Cable/DSL Broadband Router
Wireless Cable/DSL Broadband Router
N
Multi-user Internet access via single user account
N
EZ 3-Click Installation Wizard
N
IEEE 802.11b compliant
N
Wireless operation at 11, 5.5, 2, or 1 Mbps
N
Integrated 4-port 10/100 Mbps switch
N
Configurable parental control
N
Stateful Packet Inspection (SPI) and Denial of Service
(DoS) support
N
Supports a wide variety of Internet applications
N
Virtual Private Network (VPN) using PPTP, L2TP,
IPSec pass-through
TM

User Guide

SMC7004VWBR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMC Barricade SMC7004VWBR and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks SMC Barricade SMC7004VWBR

Summary of Contents for SMC Networks SMC Barricade SMC7004VWBR

  • Page 1: User Guide

    Barricade Wireless Cable/DSL Broadband Router Wireless Cable/DSL Broadband Router Multi-user Internet access via single user account EZ 3-Click Installation Wizard IEEE 802.11b compliant Wireless operation at 11, 5.5, 2, or 1 Mbps Integrated 4-port 10/100 Mbps switch Configurable parental control Stateful Packet Inspection (SPI) and Denial of Service (DoS) support Supports a wide variety of Internet applications...
  • Page 3 Barricade Wireless Cable/ DSL Broadband Router User Guide From SMC’s Barricade line of Broadband Routers Sept 2002 Revision Number: R01...

  • Page 4: Fcc Rf Radiation Exposure Statement

    OMPLIANCES FCC - Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications.
  • Page 5 OMPLIANCES EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain. This information technology equipment complies with the requirements of the Council...

  • Page 6: Safety Compliance

    OMPLIANCES Safety Compliance Underwriters Laboratories Compliance Statement Important! Before making connections, make sure you have the correct cord set. Check it (read the label on the cable) against the following: Operating Voltage 120 Volts 240 Volts (Europe only) The unit automatically matches the connected input voltage. Therefore, no additional adjustments are necessary when connecting it to any input voltage within the range marked on the rear panel.
  • Page 7 Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen. 13. Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden. 14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten Servicestelle zu überprüfen: a.
  • Page 8 OMPLIANCES viii...

  • Page 9: Table Of Contents

    Introduction ........1-1 About the Wireless Barricade ....... . . 1-1 Features and Benefits .
  • Page 10 AB LE OF ONTENTS Setting Up TCP/ IP to Work with the Wireless Barricade ... 5-5 Windows 95/ 98/ME ........5-5 Windows 2000 .

  • Page 11: Introduction

    HAPTER NTRODUCTION Congratulations on your purchase of a Barricade Wireless Cable/DSL ™ Broadband Router. SMC is proud to provide you with a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. For those who want to surf the Internet at the lowest possible cost, the Wireless Barricade is the convenient, easy ™...

  • Page 12: Features And Benefits

    NTRODUCTION Features and Benefits • Internet connection to DSL or cable modem via a 10/100 Mbps WAN port • Local network connection via 10/100 Mbps Ethernet ports or 11 Mbps wireless interface (supporting up to 128 mobile users) • 802.11b Compliant – interoperable with multiple vendors •...

  • Page 13: Applications

    Applications Many advanced applications are provided by the Wireless Barricade, such as: • LAN Access The Wireless Barricade provides connectivity to 10/100 Mbps devices, making it easy to create a network in small offices or homes. • Internet Access This device supports Internet access through a DSL or cable connection.
  • Page 14 NTRODUCTION • User-Definable Application Sensing Tunnel You may define special applications that require multiple connections such as Internet gaming, video conferencing, and Internet telephony. The Wireless Barricade will then sense the application type and open a multi-port tunnel for it. •...
  • Page 15 • Point-to-Point Tunneling Protocol – Provides a secure tunnel for remote client access to a PPTP security gateway. PPTP includes provisions for call origination and flow control required by ISPs. • Layer Two Tunneling Protocol – Includes most of the features provided by PPTP, but has less overhead and is more suited for managed networks.
  • Page 16 NTRODUCTION...

  • Page 17: Installation

    Before installing the Wireless Barricade listed under “Package Contents.” Also be sure that you have the necessary cabling. Package Contents If any of the items are missing or damaged, contact your local SMC distributor. • Wireless Barricade Broadband Router • Power adapter •...

  • Page 18: Hardware Description

    NSTALLATION Please fill out and return the Warranty Registration Card to SMC, or register on SMC’s web site at www.smc-europe.com. The Wireless Barricade Broadband Router is covered by a limited lifetime warranty. Hardware Description The Wireless Barricade Broadband Router may be connected to the Internet or to a remote site using its RJ-45 WAN port.

  • Page 19: Front Panel

    Front Panel Figure 2-1. Front Panel LED Indicators The Wireless Barricade includes LED indicators on the front panel that simplify installation and network troubleshooting. Check the power and port indicators as shown in the following table. Condition Power (Green) WLAN (Green) (Green) Link...

  • Page 20: Rear Panel

    NSTALLATION Rear Panel RESET Figure 2-2. Rear Panel Item Description 9V 1A Connect the included power adapter to this port. Warning: Using the wrong type of power adapter may cause damage. Reset Use this button to reset the power or restore the default factory settings.

  • Page 21: System Requirements

    System Requirements You must meet the following minimum requirements: • Internet access from your local telephone company or Internet Service Provider (ISP) using a DSL modem or cable modem. • A PC using a fixed IP address or a dynamic IP address assigned via DHCP, as well as a gateway server address and DNS server address from your service provider.

  • Page 22: Basic Installation Procedure

    NSTALLATION You should also remember to turn off the power, remove the power cord from the outlet, and keep your hands dry when handling the Wireless Barricade. Basic Installation Procedure 1. Connect the LAN: You can connect the Wireless Barricade to your PC, or to a hub or switch.
  • Page 23 Attach to Your Network Using Ethernet Cabling The four LAN ports on the Wireless Barricade can auto-negotiate the connection speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, as well as the transmission mode to half-duplex or full-duplex. Use twisted-pair cable to connect any of the four LAN ports on the Wireless Barricade to an Ethernet adapter on your PC.
  • Page 24 NSTALLATION Notes: 1. Use 100-ohm shielded or unshielded twisted-pair cable with RJ-45 connectors for all connections. Use Category 3, 4 or 5 for connections that operate at 10 Mbps, and Category 5 for connections that operate at 100 Mbps. 2. Make sure each twisted-pair cable does not exceed 100 meters (328 feet).
  • Page 25 Computers equipped with a wireless adapter can communicate with each other as an independent wireless LAN by configuring each computer to the same radio channel. However, the Wireless Barricade can provide access to your wired/wireless LAN or to the Internet for all wireless workstations.
  • Page 26 NSTALLATION Attach the Wireless Barricade to the Internet If Internet services are provided through an xDSL or cable modem, use unshielded or shielded twisted-pair Ethernet cable (Category 3 or greater) with RJ-45 plugs to connect the broadband modem directly to the WAN port on the Wireless Barricade.

  • Page 27: Configuring Client Pcs

    ONFIGURING TCP/IP Configuration To access the Internet through the Wireless Barricade, you must configure the network settings of the computers on your LAN to use the same IP subnet as the Wireless Barricade. The default network settings for the Wireless Barricade are: IP Address: 192.168.2.1 Subnet Mask: 255.255.255.0 Note: These settings may be changed to suit your network requirements,...
  • Page 28 TCP/IP C ONFIGURATION...

  • Page 29: Configuring The Wireless Barricade

    ONFIGURING THE After you have configured TCP/IP on a client computer, use a web browser to configure the Wireless Barricade. The Wireless Barricade can be configured by any Java-supported browser including Internet Explorer 4.0 or above, or Netscape Navigator 4.0 or above. Using the web management interface, you may configure the Wireless Barricade and view statistics to monitor network activity.

  • Page 30: Navigating The Web Browser Interface

    AVIGATING THE Navigating the Web Browser Interface The Wireless Barricade’s management interface features a Setup Wizard and an Advanced Setup section. Use the Setup Wizard if you want to quickly setup the Wireless Barricade for use with a cable modem or DSL modem.

  • Page 31: Making Configuration Changes

    Making Configuration Changes Configurable parameters have a dialog box or a drop-down list. Once a configuration change has been made on a page, be sure to click the “Apply” or “Next” button at the bottom of the page to enable the new setting.

  • Page 32: Broadband Type

    ETUP IZARD For accurate timing of client filtering and log events, you need to set the time zone. Select your time zone from the dropdown list. Click “Next.” Broadband Type Select the type of broadband connection you have.

  • Page 33: Cable Modem

    ONFIGURING THE IRELESS ARRICADE Cable Modem Your ISP may have given you a host name. If so, enter it into this field. Click “Finish” to complete the setup. The Status page will open to allow you to view the connection status, as well as other information. See “Status”...
  • Page 34 ETUP IZARD Fixed-IP xDSL Some xDSL Internet Service Providers may assign a fixed (static) IP address for your gateway. If you have been provided with this information, choose this option and enter the assigned IP address, subnet mask, gateway IP, and DNS IP addresses for the Wireless Barricade. Click “Finish”...
  • Page 35 ONFIGURING THE IREL ESS AR RICADE PPPoE Enter the PPPoE user name and password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. Leave the Maximum Transmission Unit (MTU) on the default value (1492) unless you have a particular reason to change it.

  • Page 36: Advanced Setup

    DVANCED ETUP Advanced Setup Use the web management interface to define system parameters, manage and control the Wireless Barricade and its ports, or monitor network conditions. The following table outlines the selections available from this program. Menu System Wireless Firewall Description Sets the local time zone, the password for administrator access, and the IP address of a PC...

  • Page 37: System

    Menu Tools Status System Time Zone Sets the time zone for the Wireless Barricade. This information is used for log entries and client access control. ONFIGURING THE Description Contains options to backup & restore the current configuration, restore all configuration settings to the factory defaults, update system firmware, or reset the system.
  • Page 38 DVANCED ETUP Password Settings Use this menu to restrict access based on a password. By default, there is no password. For security you should assign one before exposing the Wireless Barricade to the Internet. Passwords can contain from 3–12 alphanumeric characters and are not case sensitive.
  • Page 39 ONFIGURING THE IREL ESS AR RICADE Remote Management Allows a remote PC to configure, manage, and monitor the Wireless Barricade using a standard web browser. Check “Enable” and enter the IP address of the remote host. Click “APPLY.” Note: If you specify an IP address of 0.0.0.0, any host can manage the Wireless Barricade.

  • Page 40: Wan

    DVANCED ETUP Specify the WAN connection type provided by your Internet Service Provider, then click “More Configuration” to enter detailed configuration parameters for the selected connection type. Dynamic IP The Host Name is optional, but may be required by some ISPs. The default MAC address is set to the WAN’s physical interface on the Wireless Barricade.
  • Page 41 ONFIGURING THE IREL ESS AR RICADE PPPoE Enter the PPPoE user name and password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. The MTU (Maximum Transmission Unit) governs the maximum size of the data packets.
  • Page 42 DV A NCE D ETUP PPTP Point-to-Point Tunneling Protocol (PPTP) allows the secure remo te access over the Internet by simply dialing in a local point provided by an ISP. Using the above scree n allows client PCs to establish a normal PPTP session and provides hassle-f ree configuration of the PPTP client on each client PC For detailed information contact your SMC technical support team.
  • Page 43 ONFIGURING THE IRELESS ARRICADE Static IP Address If your Internet Service Provider has assigned a fixed IP address, enter the assigned address and subnet mask for the Wireless Barricade, then enter the gateway address of your ISP. You may need a fixed address if you want to provide Internet services, such as a web server, or FTP server.
  • Page 44 DVANCED ETUP Domain Name Servers map numerical IP addresses to the equivalent domain name (e.g., www.smc.com). Your ISP should provide the IP address of one or more domain name servers. Enter those addresses on this screen. 4-16...

  • Page 45: Lan

    ONFIGURING THE IRELESS ARRICADE LAN IP Use the LAN menu to configure the LAN IP address for the Wireless Barricade and to enable the DHCP server for dynamic client address allocation. Set a period for the lease time if required. For home networks this may be set to “Forever”, which means there is no time limit on the IP address lease.

  • Page 46: Wireless Configuration

    DVANCED ETUP Remember not to include the address of the Wireless Barricade in the client address pool. Also remember to configure your client PCs for dynamic IP address allocation. Wireless Configuration To configure the Wireless Barricade as a wireless access point for wireless clients (either stationary or roaming), all you need to do is define the radio channel, the Service Set identifier (SSID), and encryption options.
  • Page 47 Transmission Rate: Set the data rate transmitted from the Wireless Barricade. The lower the data rate, the longer the transmission distance. (Default: Fully Automatic) Basic Rate: Select “All (1, 2, 5.5, 11Mbps)” from the drop-down list to optimize the data transfer speed for your network.
  • Page 48 DVANCED ETUP You can automatically generate encryption keys or you can manually enter the keys. For automatic 64-bit security, you enter a passphrase that is used to create four keys (as shown below). The automatic 128-bit security generates a single key by entering a passphrase. 4-20...

  • Page 49: Address Mapping

    ONFIGURING THE IRELESS ARRICADE If you use encryption, configure the same keys used for the Wireless Barricade on each of your wireless clients. Note that the Wired Equivalent Privacy (WEP) protects data transmitted between wireless nodes, but does not protect any transmissions over your wired network or over the Internet.
  • Page 50 DVANCED ETUP Virtual Server If you configure the Wireless Barricade as a virtual server, remote users accessing services such as web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses.
  • Page 51 ONFIGURING THE IRELESS ARRICADE Enabling Special Applications Some applications, such as Internet gaming, videoconferencing, Internet telephony and others, require multiple connections. These applications cannot work with Network Address Translation (NAT) enabled. If you need to run applications that require multiple connections, use the following screen to specify the additional public ports to be opened for each application.

  • Page 52: Firewall

    DVANCED ETUP Firewall The firewall does not significantly affect system performance, so we advise enabling it to protect your network users. Select “Enable” and click the “APPLY” button to open the Firewall submenus. The Wireless Barricade’s firewall can provide the access control of connected client PCs, block common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding.
  • Page 53 The following items are included in the “Access Control” screen: Field Normal Filtering Table MAC Filtering Table Remote Management Note: Click on “Add PC” and define the appropriate settings for client PC services (as shown in the following screen). ONFIGURING THE Description Displays the IP address and filtering status of the connected client PC...

  • Page 54: Url Blocking

    DVANCED ETUP URL Blocking Using the above screen to block access to the Web sites specified in the table. 4-26...
  • Page 55 ONFIGURING THE IRELESS ARRICADE Schedule Rule You can filter Internet access for local clients based on the “Rule Name,” and time of day. 1. Click on “Add Schedule Rule” 2. Define the appropriate settings for a schedule rule (as shown in the following screen).
  • Page 56 DVANCED ETUP 3. Click “OK” and then the “APPLY” button to save your settings. (as shown on previous page) 4-28...

  • Page 57: Intrusion Detection

    ONFIGURING THE IRELESS ARRICADE Intrusion Detection The Intrusion Detection feature of the Wireless Barricade limits the access of the incoming traffic from the WAN port. When the SPI feature is turned on, all the incoming packets will be blocked unless certain types of traffic types are checked by the users.
  • Page 58 DVANCED ETUP the Stateful Packet Inspection heading, all the incoming traffic will be blocked except the FTP connection initiated from the local LAN. • Stateful Packet Inspection This option allows you to select different application types that are using dynamic port numbers. If you need to use the Stateful Packet Inspection (SPI) for blocking packets, check the radio button in the “Enable SPI and Anti-DoS firewall protection”...
  • Page 59 By using the above inspected information and timeout/threshold critieria, the Wireless Barricade provides the following DoS attack preventions: Ping of Death (Ping flood) attack, SYN flood attack, IP fragment attack (Teardrop Attack), Brute-force attack, Land Attack, IP Spoofing attack, IP with zero length, TCP null scan (Port Scan Attack), UDP port loopback, Snork Attack etc..
  • Page 60 DVANCED ETUP DMZ (Demilitarized Zone) If you have a client PC that cannot run an Internet application properly from behind the firewall, then you can open the client up to unrestricted two-way Internet access. Enter the IP address of a DMZ host to this screen.

  • Page 61: Tools

    ONFIGURING THE IRELESS ARRICADE Tools Use the “Tools” menu to backup the current configuration, restore a previously saved configuration, restore factory settings, update firmware, and reset the Wireless Barricade. Configuration Tools Choose a function and click “More Configuration.” 4-33...
  • Page 62 DVANCED ETUP Backup Backup allows you to save the Wireless Barricade’s configuration to a file. You can then check “Restore” to restore the saved backup configuration file. “Restore to factory defaults” resets the Baricade to the original settings. 4-34...

  • Page 63: Firmware Upgrade

    ONFIGURING THE IRELESS ARRICADE Firmware Upgrade This tool permits easy downloading of the latest Firmware. Download the upgrade file from the SMC website (www.smc-europe.com) and save it to your hard drive. Browse for the file and then click “Apply”. Check the Status page Information section to confirm that the upgrade process was successful.
  • Page 64 DVANCED ETUP Reset Click “Apply” to reset the Wireless Barricade. The reset will be complete when the power LED stops blinking. Note: If you use the Reset button on the rear panel, the Wireless Barricade performs a power reset. If the button is held depressed for over 5 seconds, all the LEDs will illuminate and the factory settings will be restored.
  • Page 65 ONFIGURING THE IRELESS ARRICADE Status The Status screen displays WAN/LAN connection status, firmware, and hardware version numbers, illegal attempts to access your network, as well as information on DHCP clients connected to your network. 4-37...
  • Page 66 DVANCED ETUP The following items are included on this screen: Section INTERNET GATEWAY INFORMATION Security Log Save Clear Refresh DHCP Client Log Release Renew 4-38 Description Displays WAN connection type and status. Displays system IP settings, as well as DHCP and Firewall status.

  • Page 67: Installing Tcp/Ip

    ONFIGURING If you have not previously installed the TCP/IP protocols on your client PCs, refer to the following section. If you need information on how to configure a TCP/IP address on a PC, refer to “Setting Up TCP/IP to Work with the Wireless Barricade” on page 5-5. Installing TCP/IP Windows 95/98/ME 1.
  • Page 68 TCP/IP NSTALLING 5. Select “Microsoft” in the manufacturers list. Select “TCP/IP” in the Network Protocols list. Click the “OK” button to return to the Network window. 6. The TCP/IP protocol will be listed in the Network window. Click “OK” to complete the installation procedure and restart your PC to enable the TCP/IP protocols.

  • Page 69: Windows 2000

    Windows 2000 1. Click the “Start” button and choose “Settings,” then click “Control Panel.” 2. Double click the “Network and Dial-up Connections” icon, then “Local Area Connection” icon, and press the “Properties” button in the “General” tab. 3. Click the “install...” button to add the network component to your PC. 4.
  • Page 70 TCP/IP NSTALLING 5. Choose “Internet Protocol (TCP/IP)” in the Network Protocols. Click the “OK” button to return to the Network window. 6. The TCP/IP protocol will be listed in the Network window. Click “OK” to complete the install procedure.

  • Page 71: Setting Up Tcp/Ip To Work With The Wireless Barricade

    Setting Up TCP/IP to Work with the Wireless Barricade Windows 95/98/ME 1. Click “Start/Settings/Control Panel.” 2. Double-click the Network icon. Highlight the TCP/IP line that has been assigned to your network card on the “Configuration” tab of the Network window. 3.

  • Page 72: Windows 2000

    TCP/IP ETTING Windows 2000 1. Click the “Start” button and choose “Settings,” then click “Control Panel.” 2. Double click the “Network and Dial-up Connections” icon, then “Local Area Connection” icon, and press the “Properties” button in the “General” tab. 3. Select the TCP/IP line that has been assigned to your network card in the “Local Area Connection Properties”...

  • Page 73: Windows Xp

    Windows XP 1. Click the “start” button and choose “Control Panel.” 2. Select the “Network and Internet Connections” icon, then click the “Network Connections” icon, and double click on the “LAN or High-Speed Internet.” 3. Press the “Properties” button in the “General” tab. 4.

  • Page 74: Configuring Your Computer With Windows 95/98/Me

    TCP/IP ETTING Configuring Your Computer with Windows 95/98/ME You may find that the instructions here do not exactly match your version of Windows. This is because these steps and screenshots were created in Windows 98. Windows 95 and Windows Millennium Edition are very similar, but not identical, to Windows 98.
  • Page 75 2. Double-click the “Network” icon. 3. On the “Network” window “Configuration” tab, double-click the “TCP/IP” entry for your network card. ONFIGURING LIENT TCP/IP...
  • Page 76 TCP/IP ETTING 4. Click the “IP Address” tab. If “Obtain an IP address automatically” is already checked, your computer is already configured for DHCP. Click “Cancel” to close each window, and skip to “Step 2. Disable HTTP Proxy” on page 5-12. 5.
  • Page 77 7. Click the “DNS Configuration” tab. Record the DNS servers listed under “DNS Server Search Order.” 8. Click the “IP Address” tab and then check “Obtain an IP address automatically.” Click “OK.” 9. Windows may need your Windows 95/98/ME CD to copy some files.

  • Page 78: Internet Explorer

    TCP/IP ETTING Step 2. Disable HTTP Proxy You will need to verify that the “HTTP Proxy” feature of your web browser is disabled. This is so that your web browser will be able to view the configuration pages inside your Wireless Barricade. The following steps are for Internet Explorer and for Netscape.
  • Page 79 3. Clear all the check boxes and click “OK”. Click “OK” again to close the “Internet Options” window. Netscape 1. Open Netscape. Click “Edit,” then click “Preferences.” 2. In the “Preferences” window, under “Category,” double-click “Advanced,” then click “Proxies.” Check “Direct connection to the Internet.”...
  • Page 80 TCP/IP ETTING Step 3. Obtain IP Settings from Your Wireless Barricade Now that you have configured your computer to connect to your Wireless Barricade, it needs to obtain new network settings. By releasing old IP settings and renewing them with settings from your Wireless Barricade, you will also verify that you have configured your computer correctly.

  • Page 81: Configuring Your Computer In Windows 2000

    Configuring Your Computer in Windows 2000 Step 1. Configure TCP/IP Settings After you have completed the hardware setup, you need to configure your computer to connect to the Wireless Barricade. You also need to determine how your ISP issues your IP address. Many ISPs issue these addresses automatically, using a networking technology known as Dynamic Host Configuration Protocol, or DHCP.
  • Page 82 TCP/IP ETTING 3. Double-click the icon that corresponds to the connection to your Wireless Barricade. 4. Click “Properties.” 5. Double-click “Internet Protocol (TCP/IP).” 5-16 ORK WITH THE IRELESS ARRICADE...
  • Page 83 6. All the information that you need to record is on the “Internet Protocol (TCP/IP) Properties” screen. Use the table on the next page to record the information. If “Obtain an IP address automatically” and “Obtain DNS server address automatically” are already checked, your computer is already configured for DHCP.
  • Page 84 TCP/IP ETTING Step 2. Disable HTTP Proxy You will need to verify that the “HTTP Proxy” feature of your web browser is disabled. This is so that your web browser will be able to view the configuration pages inside the Wireless Barricade. The following steps are for Internet Explorer and for Netscape.
  • Page 85 3. Clear all the checkboxes. 4. Click “OK,” and then click “OK” again to close the “Internet Options” window. Netscape 1. Open Netscape. Click “Edit,” then click “Preferences.” 2. In the “Preferences” window, under “Category” double-click “Advanced,” then click “Proxies.” Select “Direct connection to the Internet.”...
  • Page 86 TCP/IP ETTING Step 3. Obtain IP Settings From Your Wireless Barricade Now that you have configured your computer to connect to your Wireless Barricade, it needs to obtain new network settings. By releasing old IP settings and renewing them with settings from your Wireless Barricade, you will also verify that you have configured your computer correctly.
  • Page 87 3. Type “IPCONFIG /RENEW” and press the <ENTER> key. Verify that your IP address is now 192.168.2.xxx (2-254), your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your Wireless Barricade is functioning. 4. Type “EXIT” and press <ENTER>. ONFIGURING LIENT TCP/IP...

  • Page 88: Configuring Your Computer With Windows Xp

    TCP/IP ETTING Configuring Your Computer with Windows XP Step 1. Configure TCP/IP Settings After you have completed the hardware setup, you need to configure your computer to connect to your Wireless Barricade. You also need to determine how your ISP issues your IP address. Many ISPs issue these numbers automatically, using a networking technology known as Dynamic Host Configuration Protocol, or DHCP.
  • Page 89 2. Select the “Network and Internet Connections” icon, then click the “Network Connections” icon. 3. Double click on the “LAN or High-Speed Internet.” 4. Click “Properties.” ONFIGURING LIENT TCP/IP 5-23...
  • Page 90 TCP/IP ETTING 5. Double-click “Internet Protocol (TCP/IP).” 6. All the information that you need to record is on the “Internet Protocol (TCP/IP) Properties” dialog box. Use the spaces below to record the information. If “Obtain an IP address automatically” and “Obtain DNS server address automatically”...
  • Page 91 7. Select “Obtain an IP address automatically” and then select “Obtain DNS server address automatically.” Then click “OK.” Click “OK” or “Close” to close each window. TCP/IP Configuration Setting IP Address Subnet Mask Primary DNS Server Secondary DNS Server Default Gateway Step 2.
  • Page 92 TCP/IP ETTING 2. In the “Internet Options” window click the “Connections” tab. Next, click the “LAN Settings...” button. 3. Clear all the checkboxes. 4. Click “OK,” and then click “OK” again to close the “Internet Options” window. 5-26 ORK WITH THE IRELESS ARRICADE...
  • Page 93 TCP/IP ONFIGURING LIENT Step 3. Obtain IP Settings From Your Wireless Barricade Now that you have configured your computer to connect to your Wireless Barricade, it needs to obtain new network settings. By releasing any old IP settings and renewing them with settings from your Wireless Barricade, you will also verify that you have configured your computer correctly.
  • Page 94 TCP/IP ETTING 2. In the “Command Prompt” window, type “IPCONFIG /RELEASE” and press the <ENTER> key. 3. Type “IPCONFIG /RENEW” and press the <ENTER> key. Verify that your IP address is now 192.168.2.xxx (2-255), your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your Wireless Barricade is functioning.

  • Page 95: Configuring Your Computer With Windows Nt 4.0

    Configuring Your Computer with Windows NT 4.0 Step 1. Configure TCP/IP Settings After you have completed the hardware setup, you need to configure your computer to connect to your Wireless Barricade. You need to determine how your ISP issues your IP address. Many ISPs issue these numbers automatically using a networking technology known as Dynamic Host Configuration Protocol, or DHCP.
  • Page 96 TCP/IP ETTING 3. Click on the “Protocols” tab. 4. Double-click “TCP/ IP Protocol.” 5. Click on the “IP Address” tab. 6. In the “Adapter” dropdown list, be sure your Ethernet adapter is selected. 5-30 ORK WITH THE IRELESS ARRICADE...
  • Page 97 7. If “Obtain an IP address automatically” is already checked, your computer is already configured for DHCP. Click “Cancel” to close each window, and skip to “Step 2. Disable HTTP Proxy” on page 5-32. In the “TCP/IP Properties” dialog box, click the IP address tab to locate your IP Address, Subnet...
  • Page 98 TCP/IP ETTING Step 2. Disable HTTP Proxy You will need to verify that the “HTTP Proxy” feature of your web browser is disabled. This is so that your web browser will be able to view the Wireless Barricade configuration pages. The following steps are for Internet Explorer and for Netscape.
  • Page 99 3. Clear all the checkboxes. 4. Click “OK,” and then click “OK” again to close the “Internet Options” window. Netscape 1. Open Netscape. Click “Edit,” then click “Preferences...” 2. In the “Preferences” window, under “Category” double-click “Advanced,” then click “Proxies.” Check “Direct connection to the Internet.”...
  • Page 100 TCP/IP ETTING Step 3. Obtain IP Settings From Your Wireless Barricade Now that you have configured your computer to connect to your Wireless Barricade, it needs to obtain new network settings. By releasing old IP settings and renewing them with settings from the Wireless Barricade, you will also verify that you have configured your computer correctly.

  • Page 101: Configuring Your Macintosh Computer

    3. Type “IPCONFIG /RENEW” and press the <ENTER> key. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that the Wireless Barricade is functioning. 4. Type “EXIT” and press <ENTER> to close the “Command Prompt” window.
  • Page 102 TCP/IP ETTING Here is what to do: 1. Pull down the Apple Menu. Click “Control Panels” and select TCP/IP. 2. In the TCP/IP dialog box, make sure that “Ethernet” is selected in the “Connect Via:” field. 5-36 ORK WITH THE IRELESS ARRICADE...
  • Page 103 If “Using DHCP Server” is already selected in the “Configure” field, your computer is already configured for DHCP. Close the TCP/IP dialog box, and skip to Step 2 Disable HTTP Proxy (bottom of this page). 3. All the information that you need to record is on the “TCP/IP” dialog box.
  • Page 104 TCP/IP ETTING Internet Explorer 1. Open Internet Explorer. Click “Edit/ Preferences.” 2. In the Internet Explorer “Preferences” window, under “Network,” select “Proxies.” 3. Uncheck all checkboxes and click “OK.” 5-38 ORK WITH THE IRELESS ARRICADE...
  • Page 105 Netscape 1. Open Netscape. Click “Edit/Preferences.” 2. In the column labeled “Category,” select “Advanced.” Under the “Advanced” category, select “Proxies.” 3. Select “Direct Connection to the Internet” and click “OK.” Step 3. Obtain IP Settings From Your Wireless Barricade Now that you have configured your computer to connect to your Wireless Barricade, it needs to obtain new network settings.
  • Page 106 TCP/IP ETTING 1. Pull down the Apple Menu. Click “Control Panels” and “TCP/IP.” 2. In the TCP/IP window, your new settings will be shown. Verify that your IP address is now 192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1.

  • Page 107: Dynamic Ip Allocation Via A Dhcp Server

    TCP/IP ONFIGURING LIENT Dynamic IP Allocation via a DHCP Server Check “Obtain an IP address automatically” on the IP Address tab. Do not input any values under the Gateway tab, and check “Disable DNS” on the “DNS Configuration” tab. These settings will be automatically configured by the DHCP server.

  • Page 108: Manual Ip Configuration

    TCP/IP ETTING Manual IP Configuration 1. Check “Specify an IP address” on the IP Address tab. Enter an IP address based on the default network 192.168.2.x (where x is between 2 and 254), and use 255.255.255.0 for the subnet mask. 2.

  • Page 109: Verifying Your Tcp/Ip Connection

    Verifying Your TCP/IP Connection After installing the TCP/IP communication protocols and configuring an IP address in the same network as the Wireless Barricade, use the “Ping” command to check if your computer has successfully connected to the Wireless Barricade. The following example shows how the Ping procedure can be executed in an MS-DOS window.
  • Page 110 TCP/IP ETTING ORK WITH THE IRELESS ARRICADE 5-44...

  • Page 111: Troubleshooting

    This appendix describes common problems you may encounter and possible solutions to them. The Wireless Barricade can be easily monitored through panel indicators to identify problems. If you cannot resolve any connection problems after checking the indicators, then refer to the other sections in the following table.

  • Page 112: Troubleshooting Chart

    ROUBLESHOOTING Symptom LED Indicators Link LED is OFF Network Connection Problems Cannot Ping the Wireless Barricade from the attached LAN, or the Wireless Barricade cannot Ping any device on the attached LAN Troubleshooting Chart • Verify that the Wireless Barricade and attached device are powered on.
  • Page 113 Symptom Management Problems Cannot connect using the web browser Forgot or lost the password Printer Server The printer cannot print, or prints garbage Troubleshooting Chart • Be sure to have configured the Wireless Barricade with a valid IP address, subnet mask, and default gateway. •...
  • Page 114 ROUBLESHOOTING...

  • Page 115: Ethernet Cable

    Ethernet Cable Specifications Cable 10BASE-T 100BASE-TX Cat. 5 100-ohm UTP Twisted-pair Cable Caution: Do NOT plug a phone jack connector into any RJ-45 port. Use only twisted-pair cables with RJ-45 connectors that conform with FCC standards. For 10BASE-T/100BASE-TX connections, a twisted-pair cable must have two pairs of wires.

  • Page 116: Cables

    ABLES Figure B-1 illustrates how the pins on the RJ-45 connector are numbered. Be sure to hold the connectors in the same orientation when attaching the wires to the pins. Figure B-1. RJ-45 Connector Pin Numbers Straight-through Cable End 1 1 (TD+) 2 (TD-) 3 (RD+)

  • Page 117: Rj-45 Port Pin Assignments

    RJ-45 Port Pin Assignments Pins 4, 5, 7, and 8 are not connected. * The “+” and “-” signs represent the polarity of the wires that make up each wire pair. MDI Signal Name* Transmit Data (TD+) Transmit Data (TD-) Receive Data (RD+) Receive Data (RD-) MDI-X Signal Name*...
  • Page 118 ABLES...

  • Page 119: Specifications

    Standards IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX FastEthernet WAN Interface 10BASE-T/100BASE-TX LAN Interfaces 10BASE-T/100BASE-TX 4 RJ-45 ports LAN data transfer rate is up to 10/20Mbps (10BaseT half/full duplex) or 100/200Mbps (100BaseTX with half/full duplex) Management Browser-based management Both DHCP Server and Client provided Advanced Features Dynamic IP Address Configuration –...
  • Page 120 PECIFICATIONS Input Power 9 V 1A Maximum Current 0.04A RMS max.@110V/240V Power Consumption 5 Watts max. @ 100-240 VAC Internet Standards RFC 826 ARP, RFC 791 IP, RFC 792 ICMP, RFC 768 UDP, RFC 793 TCP, RFC 854-859 TELNET, RFC 1321 MD5, RFC 1497 BOOTP Extension, RFC 1570 PPP LCP Extension, RFC 1631 NAT, RFC1661 PPP, RFC 1700 Assigned Numbers, RFC 1866 HTML, RFC 1945 HTTP, RFC 1994 CHAP, RFC 2131 DHCP, RFC 2637 PPTP...
  • Page 121 Safety CSA/NRTL (UL1950, CSA 22.2.950) GS (EN60950) CB (IEC60950) Warranty Limited Lifetime PECIFICATIONS...

  • Page 122: Limited Warranty

    ARRANTY SMC's Limited Warranty Statement Limited Warranty Statement: SMC Networks Europe ("SMC") warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 2 year limited warranty from the date of purchase from SMC or its Authorized Reseller.
  • Page 123 IMITED ARRANTY WARRANTIES EXCLUSIVE: IF A SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS...
  • Page 124 SMC. SMC reserves the right to change specifications at any time without notice. Trademarks SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of...

This manual is also suitable for:

7004vwbr

Table of Contents
