5. Select the "IP Address" tab.
6. In the "Adapter" drop-down list, be sure your Ethernet
adapter is selected.
If "Obtain an IP address automatically" is already selected,
your computer is already configured for DHCP. Click
"Cancel" to close each window, and skip to Step 2 "Disable
HTTP Proxy."

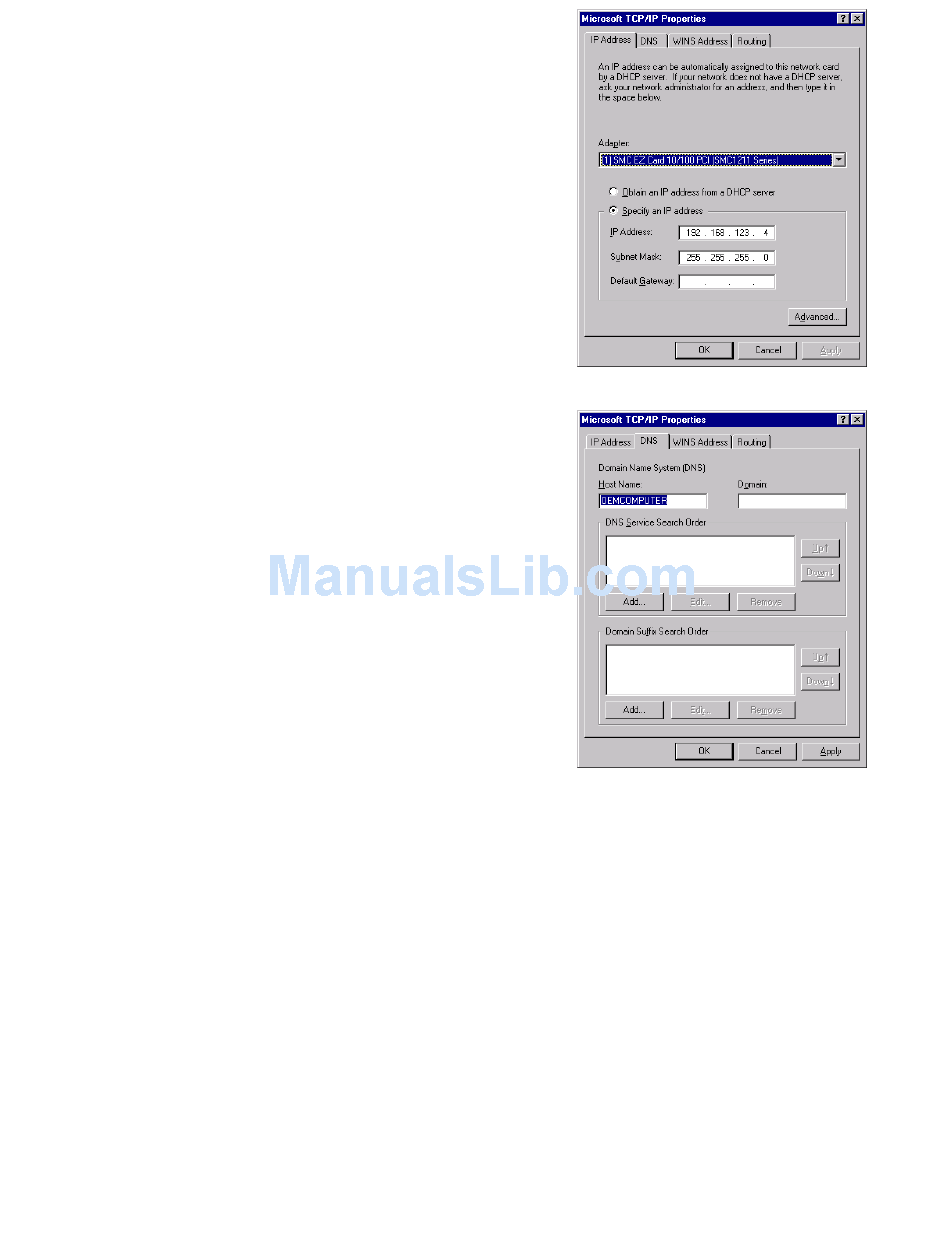

7. In the "TCP/IP Properties" dialog box, click the IP
address tab to locate your IP address, subnet Mask, and
default gateway. Record these values in the space
provided below.
8. Click the "DNS" tab to see the primary and secondary
DNS servers. Record these values in the appropriate
spaces below.
9. After writing down your IP settings, click the IP address
tab. Select "Obtain IP address automatically" and click
OK. Click OK again to close the "Network" window.
10. Windows may copy some files, and will then prompt
you to restart your system. Click "Yes" and your
computer will shut down and restart.
TCP/IP Configuration Setting
IP Address
Subnet Mask
Primary DNS Server
Secondary DNS Server
Default Gateway
Step 2. Disable HTTP Proxy
You will need to verify that the "HTTP Proxy" feature of your Web browser is disabled. This is
so that your Web browser will be able to view the configuration pages inside your Barricade.
The following steps are for Internet Explorer and for Netscape. Determine which browser you
use and follow the appropriate steps.
Page 14
____.____.____.____
____.____.____.____
____.____.____.____
____.____.____.____
____.____.____.____
