4. From the list of manufacturers and printers in the next window, select the printer you have
attached to the Barricade.

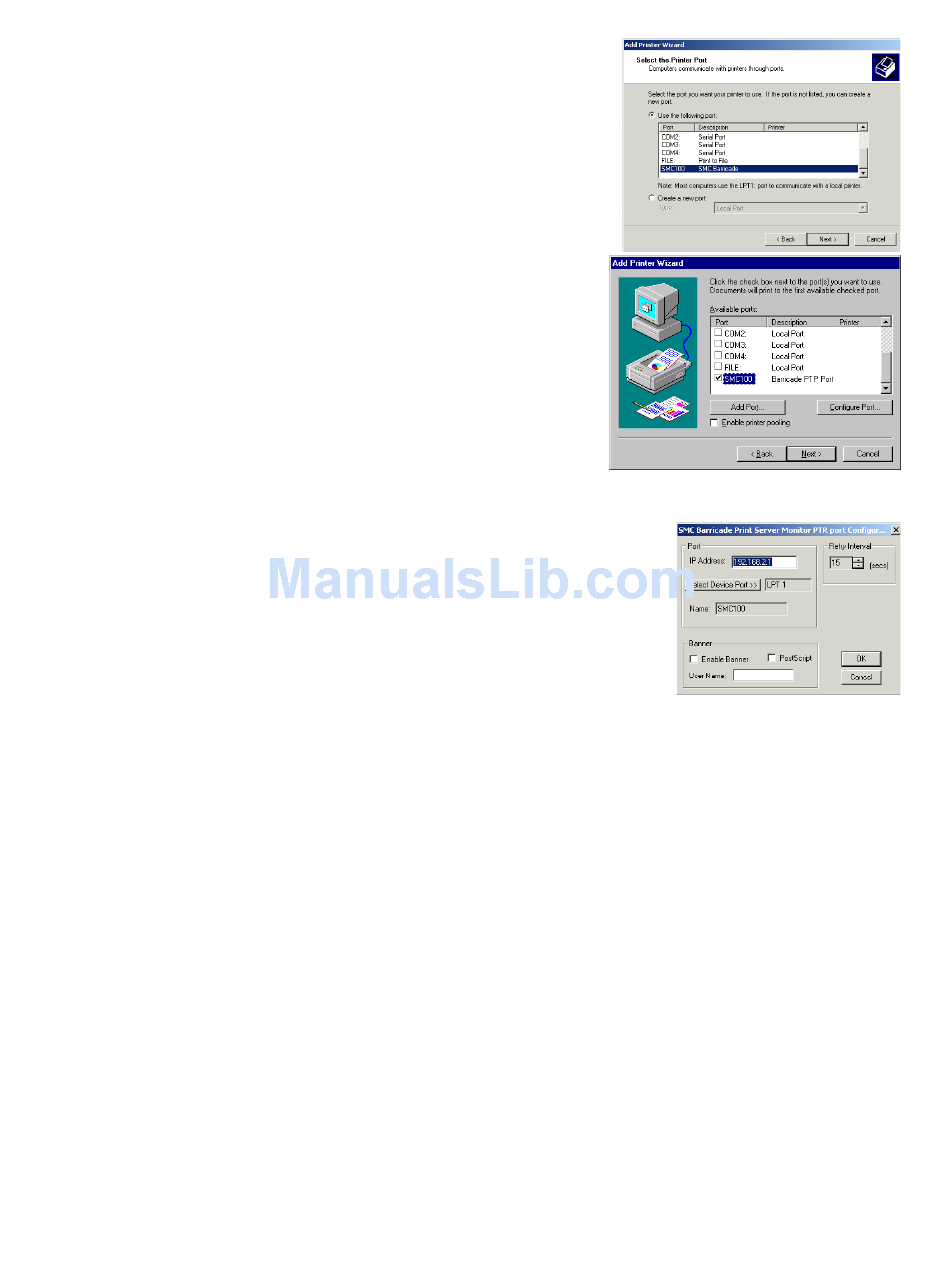

5. Select the SMC Barricade Print Server Monitor (the
default port name is "SMC100") and click "Configure
Port..."
6. Enter the Barricade's IP address in the "IP address" field (default
is 192.168.2.1) and click "OK."
7. You will be asked if you want to print a test page. Click "Yes" to make sure that your printer
is configured correctly.
8. Your printer will now appear in the "Printers" window. Your computer is configured to print
via the Barricade Print Server. Repeat these steps on each computer connected to the
Barricade.

Configure the Network Printer in Unix Systems

Follow the traditional configuration procedure on Unix platforms to set up the Barricade print
server. The printer name is "lpt1."
Page 35
