Step 3. Obtain IP Settings From Your Barricade
Now that you have configured your computer to connect to your Barricade, it needs to obtain
new network settings. By releasing any old IP settings and renewing them with settings from
your Barricade, you will also verify that you have configured your computer correctly.

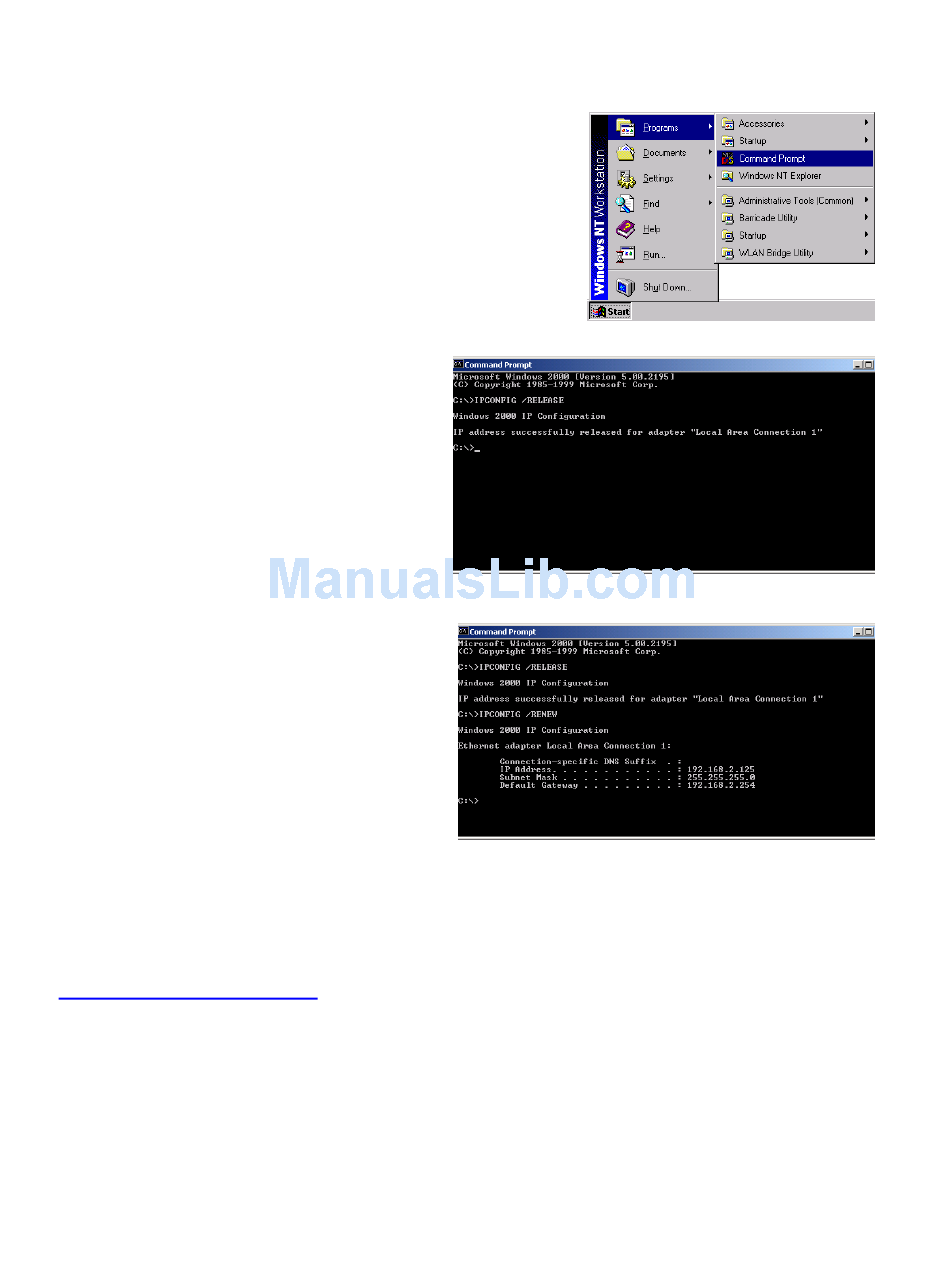

1. From the Windows desktop, click the "Start" button, then
"Programs," and then select "Command Prompt."
2. In the "Command Prompt" window, type
"IPCONFIG /RELEASE" and press the
<ENTER> key.
3. Type "IPCONFIG /RENEW" and press
the <ENTER> key. Verify that your IP
address is now 192.168.2.xxx, your
Subnet Mask is 255.255.255.0 and your
Default Gateway is 192.168.2.1. These
values confirm that your Barricade is
functioning.
4. Type "EXIT" and press <ENTER> to close the "Command Prompt" window.
Now that your computer is configured to connect to your Barricade, please continue to
"Configuring Your Barricade" on page 21.
