TCP/IP Configuration Setting
IP Address
Subnet Mask
Primary DNS Server
Secondary DNS Server
Default Gateway
Step 2. Disable HTTP Proxy
You will need to verify that the "HTTP Proxy" feature of your Web browser is disabled. This is
so that your Web browser will be able to view the configuration pages inside your Barricade.
The following steps are for Internet Explorer and for Netscape. Determine which browser you
use and follow the appropriate steps.

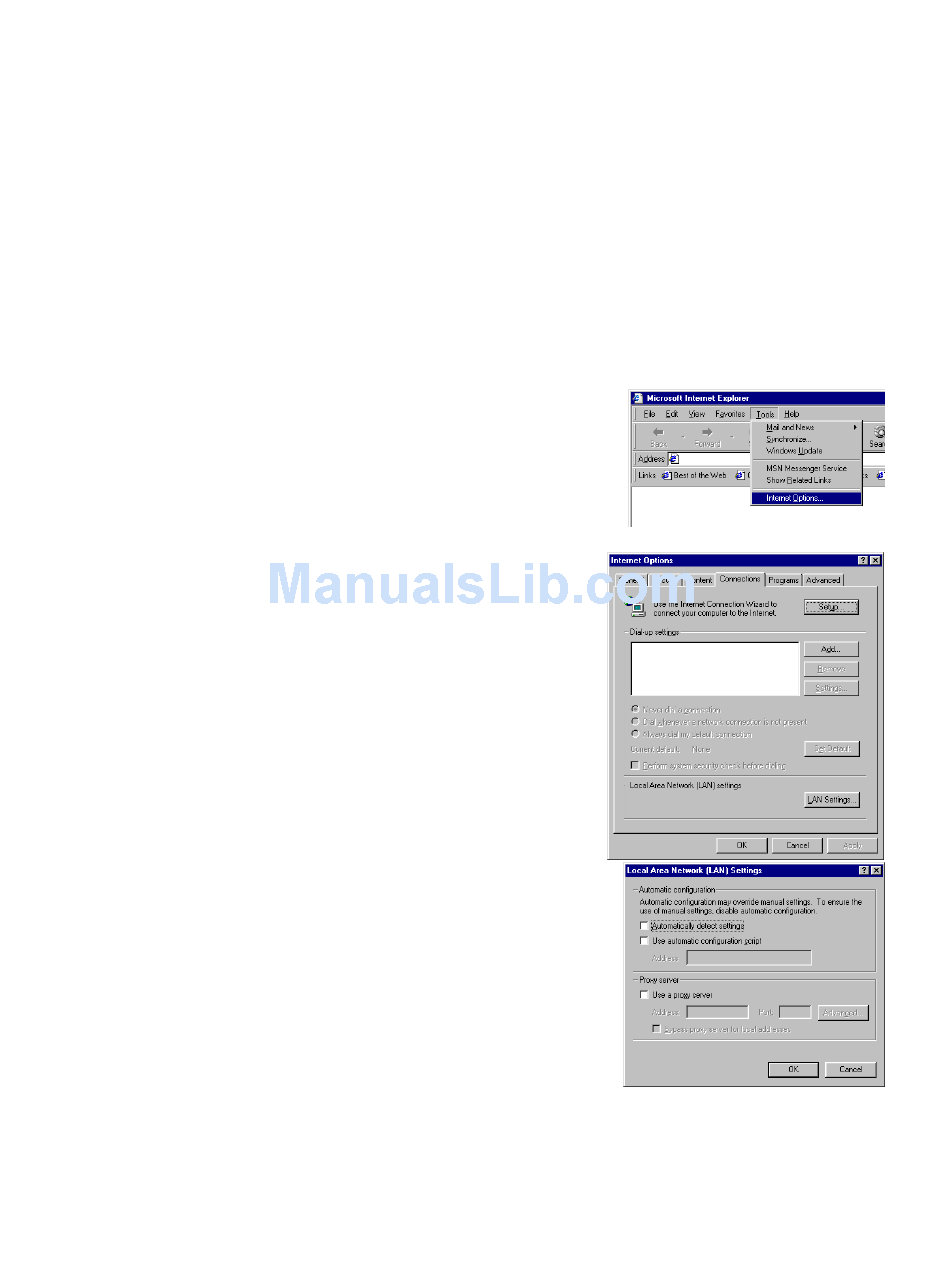

Internet Explorer
1. Open Internet Explorer and click the stop button. Click
"Tools," then "Internet Options."
2. In the "Internet Options" window click the "Connections"
tab. Next, click the "LAN Settings..." button.
3. Clear all the checkboxes.
4. Click "OK," and then click "OK" again to close the "Internet
Options" window.
Page 10
____.____.____.____
____.____.____.____
____.____.____.____
____.____.____.____
____.____.____.____
