SMC Networks SMC7004ABR Quick Installation Manual page 13

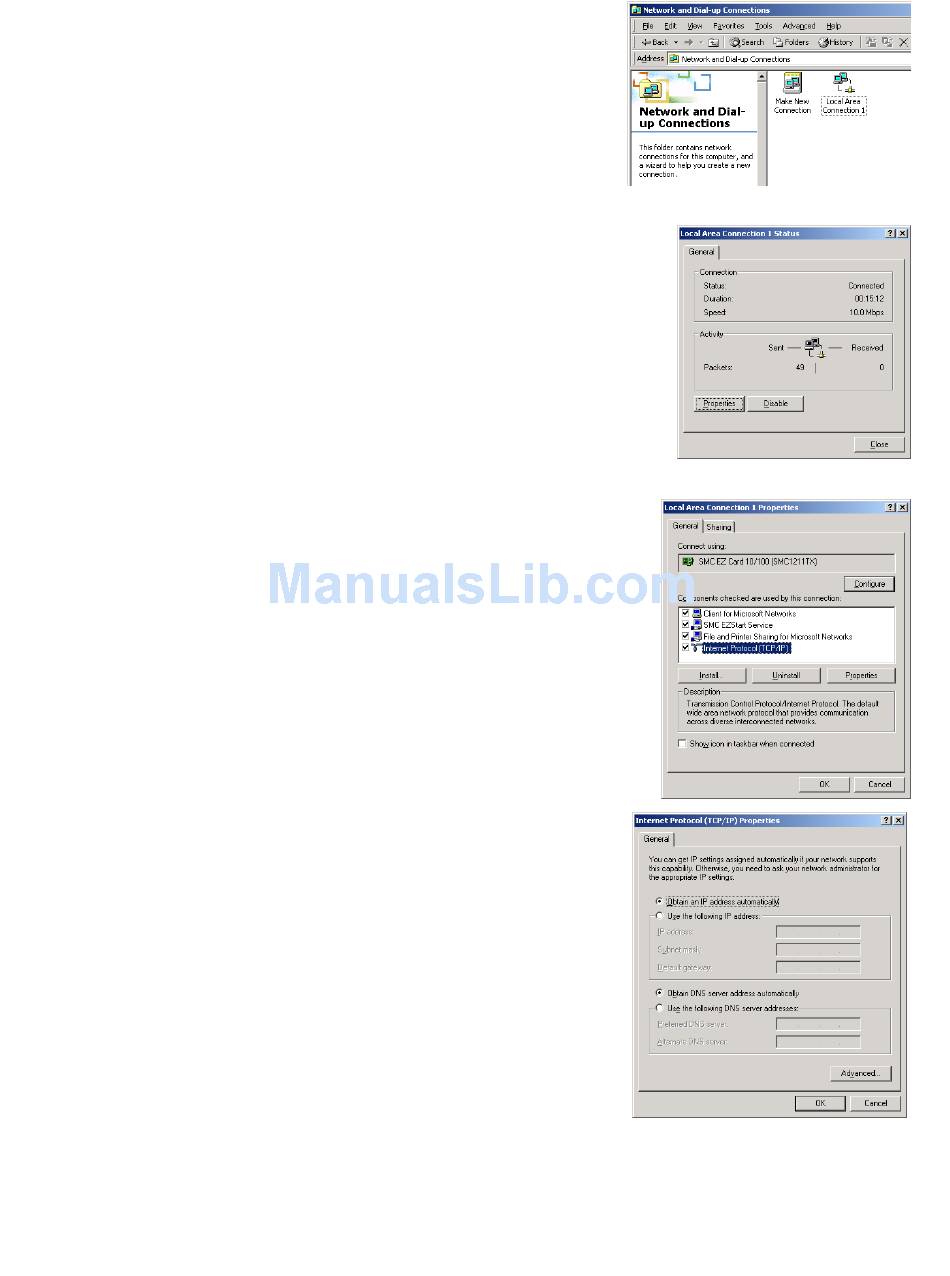

3. Double-click the icon that corresponds to the connection
to your Barricade.
4. Click "Properties."
5. Double-click "Internet Protocol (TCP/IP)."
6. All the information that you need to record is on the
"Internet Protocol (TCP/IP) Properties" dialog box. Use
the spaces below to record the information.
If "Obtain an IP address automatically" and "Obtain DNS
server address automatically" are already selected, your
computer is already configured for DHCP. Click "Cancel" to
close each window, and skip to Step 2 "Disable HTTP Proxy."
7. Select "Obtain an IP address automatically" and then select
"Obtain DNS server address automatically." Then click
"OK." Click "OK" or "Close" to close each window.
Page 9
