26
26

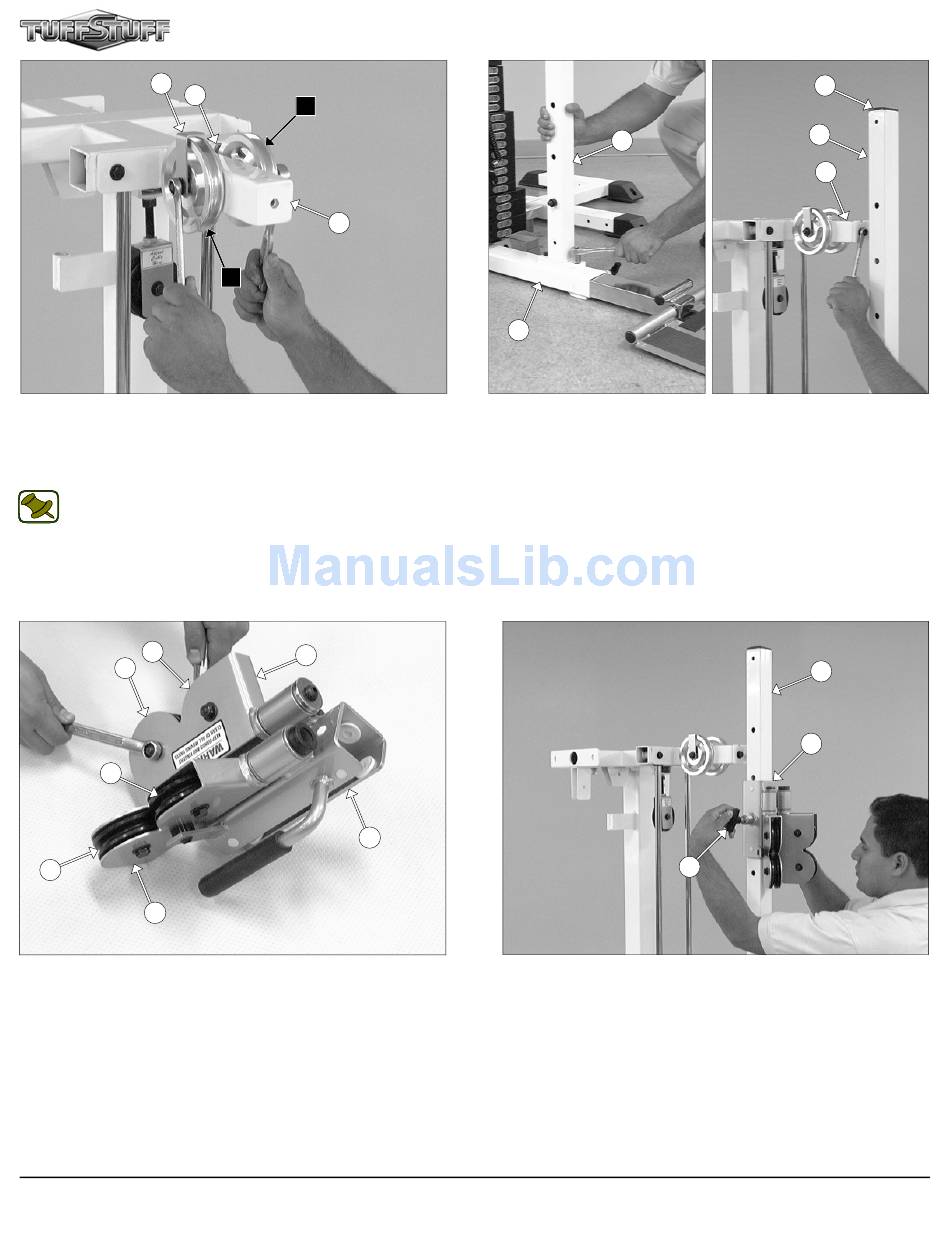

FIG. 7
Attach two Pulleys 4 1/2 Rd (#78-Labeled E4, E8) and two
Cable Retainer Brackets (#26) to the Top Upright Connector (#59)
using one Hex Head Cap Screw 3/8-16 X 4 3/4 (#110), two Flat
Washers SAE 3/8" (#94), and one Nylon Insert Jam Lock Nut 3/8-16
(#123).
Note: Be sure the Cable Retainer Brackets (#26) are posi-
tioned as shown above.
128
128
128
128
66
FIG. 9
Next, locate the assembled Single Column Carriage (#67)
and attach four Pulleys 3 1/2" Rd. (#128) to the Double Pulley Brack-
ets (#65, #66) using four Hex Head Cap Screws 3/8-16 X 1 3/4 (#101),
eight Flat Washers SAE 3/8" (#94), and four Nylon Insert Jam Lock
Nuts 3/8-16 (#123).
3
E4
59
E8
65
67
61
69
FIG. 8
Attach the Single Column Upright (#61) to the Bottom Up-
right Connector (#69) using two Hex Head Cap Screws 3/8-16 X 3/4
(#97), two Split Lock Washers 3/8" (#174), and two Flat Washers SAE
3/8" (#94). Next, affix the Single Column Upright (#61) to the Top Up-
right Connector (#59) using one Hex Head Cap Screw 3/8-16 X 1 (#98),
one Split Lock Washer 3/8" (#174), and one Flat Washer SAE 3/8" (#94).
Next, using a rubber mallet, insert one Plastic Insert Cap 2" Sq. (#142)
into the tube-end of the Single Column Upright (#61).
FIG. 10
Insert the assembled Single Column Carriage (#67) onto
the Single Column Upright (#61).
142
61
59
61
67
146
Single Column Station
