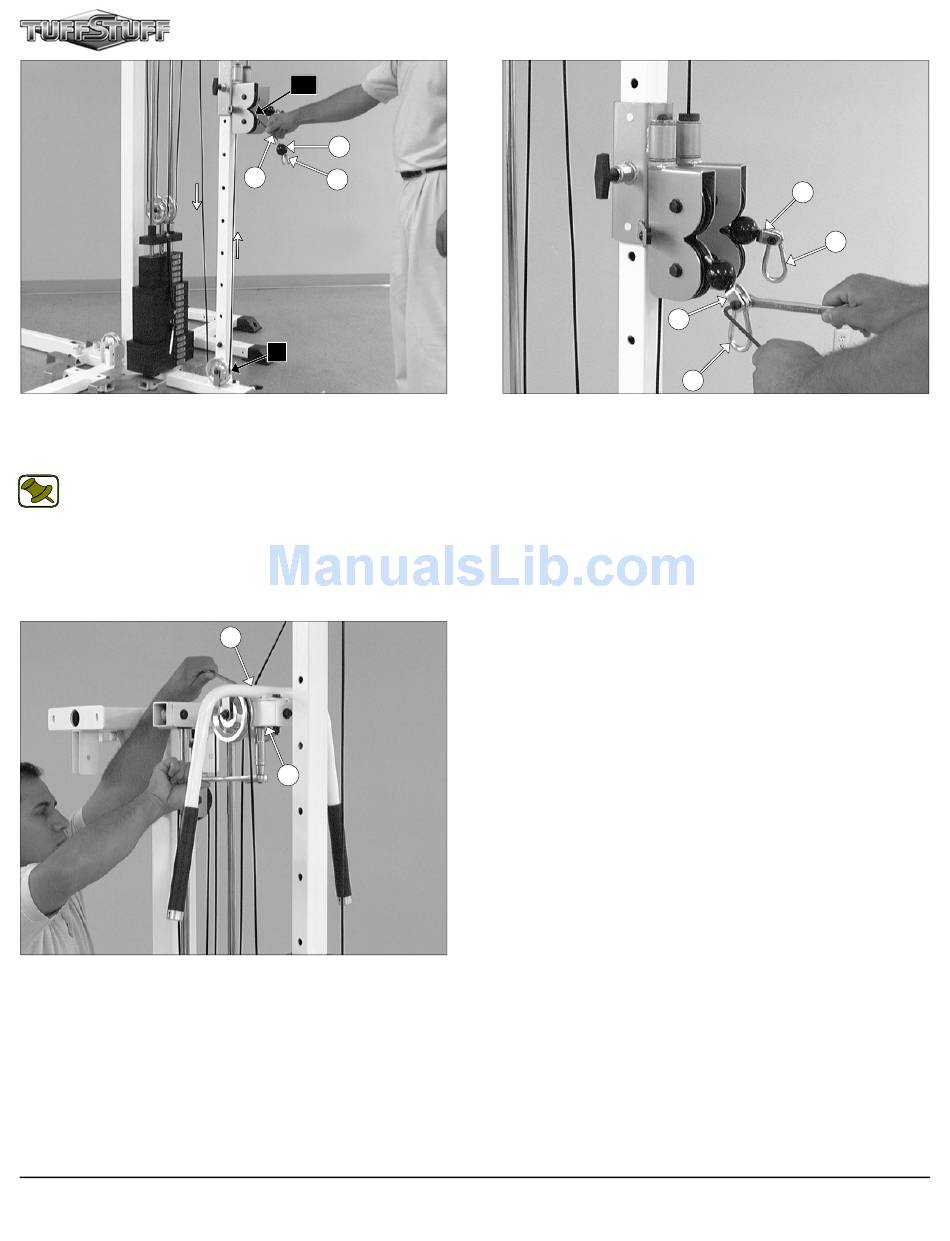

FIG. 15
Continue routing the Cable (#62) down and under the Pulley
4 1/2" Rd. (#78-Labeled E9), then up and over the Pulley 3 1/2" Rd.
(#128-Labeled E10). Next, attach one Nylon Ball 1 3/4 X 1/4 (#118),
and one Strap Bracket (#178) to the end of the cable.
Note: Refer to the Cable Mapping Diagram on fold-out page 6
for further detailed illustration of the Single Column Cable (#62)
routing.
FIG. 17
Attach the Single Column Handles (#68) to the Top Up-
right Connector (#59) using two Hex Head Cap Screws 3/8-16 X 3
(#113), four Flat Washers SAE 3/8" (#94), and two Nylon Insert Lock
Nuts 3/8-16 (#125).
5
E10
118
62
178
E9
68
59
178
FIG. 16
Attach Snap Links (#167) to both ends of the Cable (#62)
using two Shoulder Bolts 3/8 X 3/4 (#166), and Nylon Insert Lock Nuts
5/16-18 (#126).
178
167
167
Single Column Station
