TuffStuff Apollo Standard Assembly Instructions Manual page 2

A
Single Column Station
bout the
Congratulations on your new purchase of the Single Column
Station. We hope you are completely satisfied with this product and
wish you many years of enjoyment.
T
uff Stuff Equipment
Every Tuffstuff product has been built to precise quality
standards and has been carefully packaged to ensure that damage
will not occur during shipment. The TuffStuff Warranty and signature
indicating final inspection has been conducted by our line foreman,
is an expression of our confidence in the completeness, the
materials, and workmanship of this product.
W
arranty
SEE A COPY OF WARRANTY ON BACK PAGE
R
egistration Card
To avoid unnecessary delays in warranty service and to insure
that a permanent record of your purchase is on file with our factory,
be sure to complete the warranty registration card and send it to
TuffStuff Fitness Equipment today.
S
pecifications
1. Maximum Wt. Capacity
2. Total Machine Weight
Note: Due to continuing product improvements, specifications and designs are subject to change
without notice.
138
138

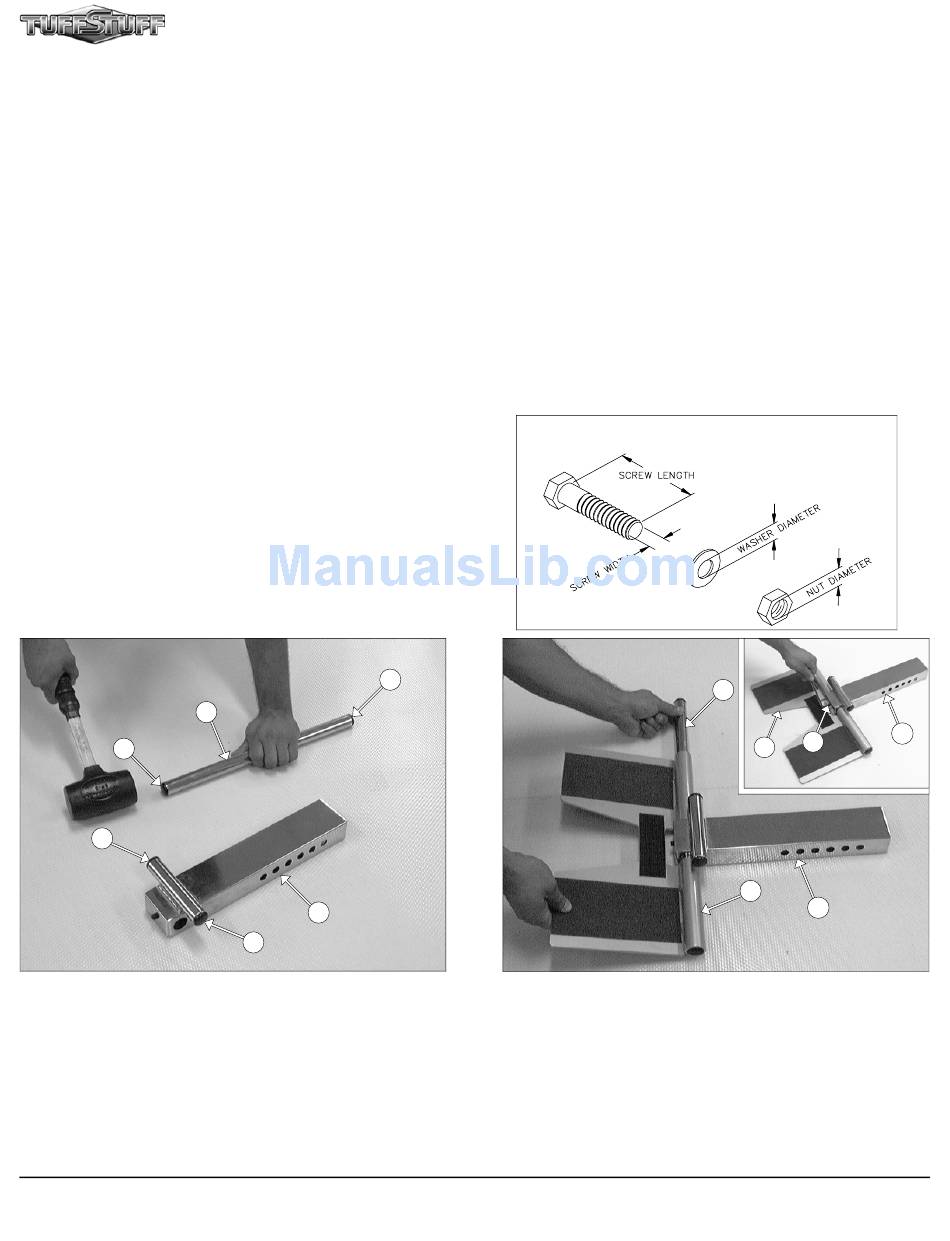

FIG. 1 Using a rubber mallet, insert four Plastic Insert Caps 1 Rd.
(#138) into the tube-ends of the Low Row Stabilizer (#63) and the In-
sert Tube (#17).
1
Introduction
- 200 Lbs.
- 70 Lbs.
17
63
138
P
rior to the Assembly of the
1. We advise you to consult your local Tuff Stuff retailer if you
should have a question or problem regarding the proper
assembly of this unit.
2. Neatly organize and identify all parts according to the Exploded
View Diagram on Fold-out Pg. 7 and the Parts List on Pg. 8.
T
ool Requirements
1. One 7/8" combination wrench
2. One 9/16" combination wrench
3. One 1/2" combination wrench
4. One ratchet
5. One 9/16" socket
6. One rubber mallet
7. Multi-purpose grease
8. Measuring tape
9. Utility knife
138
FIG. 2
Stabilizer (#63) using the Insert Tube 1 X 16 (#17). Next, secure the
Insert Tube (#17) to the Low Row Stabilizer (#63) using one Set
Screw 3/8-16 X 1/2 (#170), as shown in caption above.
Single Column Station
Hardware Measurement Diagram
17
64
Connect the Low Row Foot Support (#64) to the Low Row
63
170
64
63
Single Column Station
