Summary of Contents for Rice Lake DeckHand

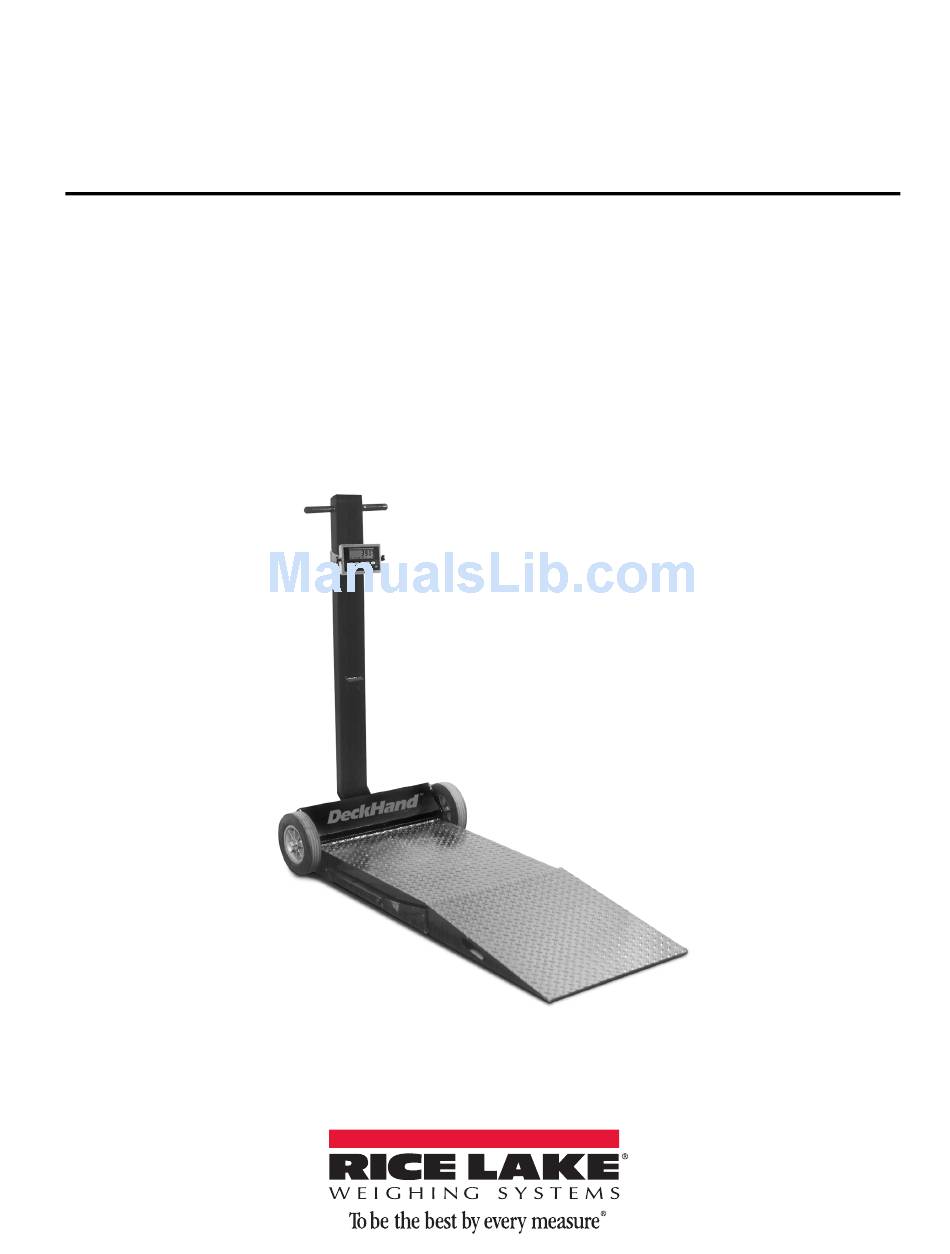

- Page 1 DeckHand Portable Floor Scale Installation and Service Manual 43978 Rev A...
-
Page 3: Table Of Contents
Class III = 2500 Copyright © 2013 Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America Specifications subject to changes without notice. Rice Lake Weighing Systems is an ISO Registered Company. January 2013 - Revision A... - Page 4 DeckHand Installation Manual...
-
Page 5: Introduction
In addition to ramps, available options include stainless steel load cell guards (clamshell) and indicator brackets for any Rice Lake IQ series indicator. Other indicators can be readily mast-mounted with slight modifications. Authorized distributors and their employees can view or download this manual from the Rice Lake Weighing Systems distributor site at www.rlws.com. -
Page 6: Operating Requirements
Grade Level Requirements The bubble level built into the platform should indicate a level condition in use. On uneven floors, place temporary shims under feet not contacting the floor. Safe Static Overloading Capacity Maximum: 150% of scale capacity DeckHand Installation Manual... -
Page 7: Installation
Installation Overview Assembly of the scale consists of the following steps: 1. Unpacking 2. Assembling mast onto scale base 3. Installing optional pivoting ramp 4. Mounting and wiring the indicator 5. Configuring the indicator 6. Calibrating the unit with test weights Unpacking The standard scale, with no added options, is shipped with load cells and indicator cable pre-wired into the junction box on the mast. -
Page 8: Mounting And Wiring The Mast And Indicator
Attaching Indicator Bracket to Mast The DeckHand is supplied with a swivel bracket for a variety of RLWS indicators. If using a different bracket, bolt it onto the mounting plate on the mast with the bolts, washers, and nuts provided. -
Page 9: Configuring The Indicator
Configuring the Indicator Refer to the indicator manual for information on configuring the indicator for your application. If using the DeckHand for a Legal for Trade application, do not configure the indicator for more divisions than the NTEP Class III maximums below:... -
Page 10: Service Information
When replacing the platform, tighten the four locknuts on the welded studs only until the flat washers beneath them contact the channel surface. Do not tighten the nuts further and compress the cushion pads between platform and channels. The platform must be free-floating on resilient pads for continued accuracy. DeckHand Installation Manual... -
Page 11: Load Cell Replacement
Load Cell Replacement Disassembly 1. Remove the four locknuts and washers that secure the platform to load cell channels. Lift off the platform. Remove the column back plate to gain access to the j-box. 2. Determine which load cell is defective. Use a hardened hex-drive bit and large ratchet wrench to remove the four hex-drive countersunk machine screws holding the channel to the defective load cell underneath. - Page 12 (Cells 2 & 3 disabled) Figure 3-1 DeckHand Junction Box Cutaway Replacing Deck Platform Put the scale flat on the floor and set the platform on the channels so the welded studs drop into the channel holes. Tilt and block the scale up again and install a flat washer and locknut on each stud. Turn the lock nut onto each stud until the washer just contacts the channel underside.
- Page 13 The indicator must be connected and approximately calibrated, but it need not indicate the exact weight value. An exact calibration will be done after trimming. A test weight is required for corner trimming. The recommended minimum test weight for all DeckHand models is 25% of scale capacity.
-
Page 14: Installing Protective Clamshells
7. Calibrate scale according to Section 2.6. Mounting Indicator Brackets A universal mount plate is welded to the DeckHand mast. The plate is predrilled to match the bracket of most indicators and are supplied with the appropriate painted or stainless steel mounting hardware. -
Page 15: Ramps And Replacement Load Cells
Socket head shoulder bolt Ramp arm Plastic washer 3 plastic washers Scale deck Figure 3-5 Ramp Pivot Bolt DeckHand Overall Platform Deck Load Load Cell Ramp Ramp Ramp... -
Page 16: Replacement Parts
Replacement Parts 29 30 Figure 4-1 Replacement Parts Illustration DeckHand Installation Manual... - Page 17 Part No. Part N0. Ref. Description Mild Steel Stainless Cable, 6-Conductor, 3 1/2 ft 15494 44187 Mount, Indicator, 310A 41011 41206 Grommet, Rubber 1/2 x 1/4 15398 15377 Flat Washer, 1/4 15145 15149 Cap Screw, 1/4-20NC x 3/4 14965 41251 Upper Platter (DH-500, DH-1000) 40986 41181...
-
Page 18: Deckhand Limited Warranty
DeckHand Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for one year. - Page 20 2013 Rice Lake Weighing Systems PN 119071 01/13...
