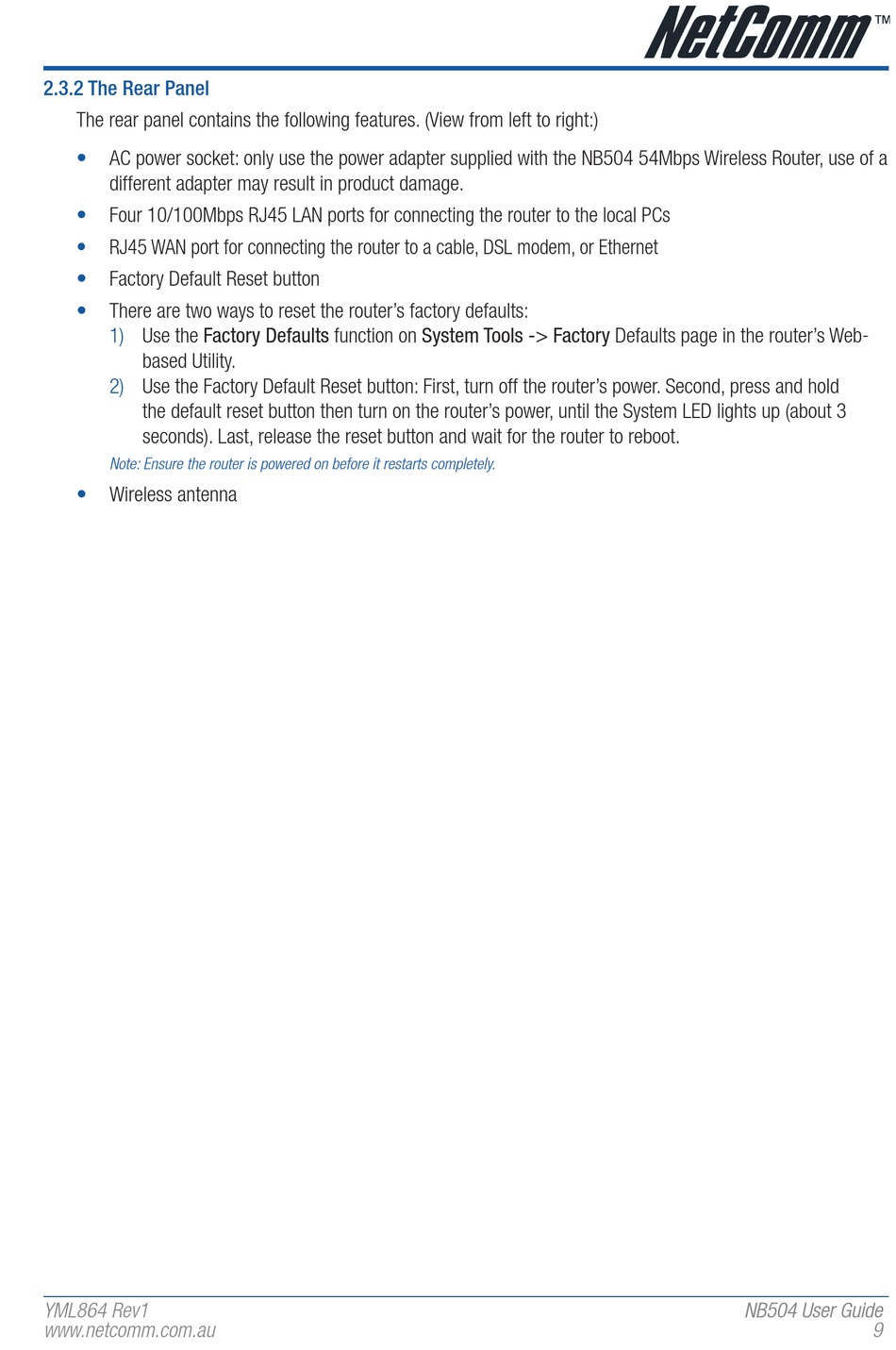

2.3.2 the Rear Panel

The rear panel contains the following features. (View from left to right:)
• AC power socket: only use the power adapter supplied with the NB504 54Mbps Wireless Router, use of a
different adapter may result in product damage.
• Four 10/100Mbps RJ45 LAN ports for connecting the router to the local PCs
• RJ45 WAN port for connecting the router to a cable, DSL modem, or Ethernet
• Factory Default Reset button
• There are two ways to reset the router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the router's Web-
based Utility.
2) Use the Factory Default Reset button: First, turn off the router's power. Second, press and hold
the default reset button then turn on the router's power, until the System LED lights up (about 3
seconds). Last, release the reset button and wait for the router to reboot.
�ote: En����e the ��o�te�� �� powe��e� on befo��e �t ��e�ta��t� completely.
• Wireless antenna
