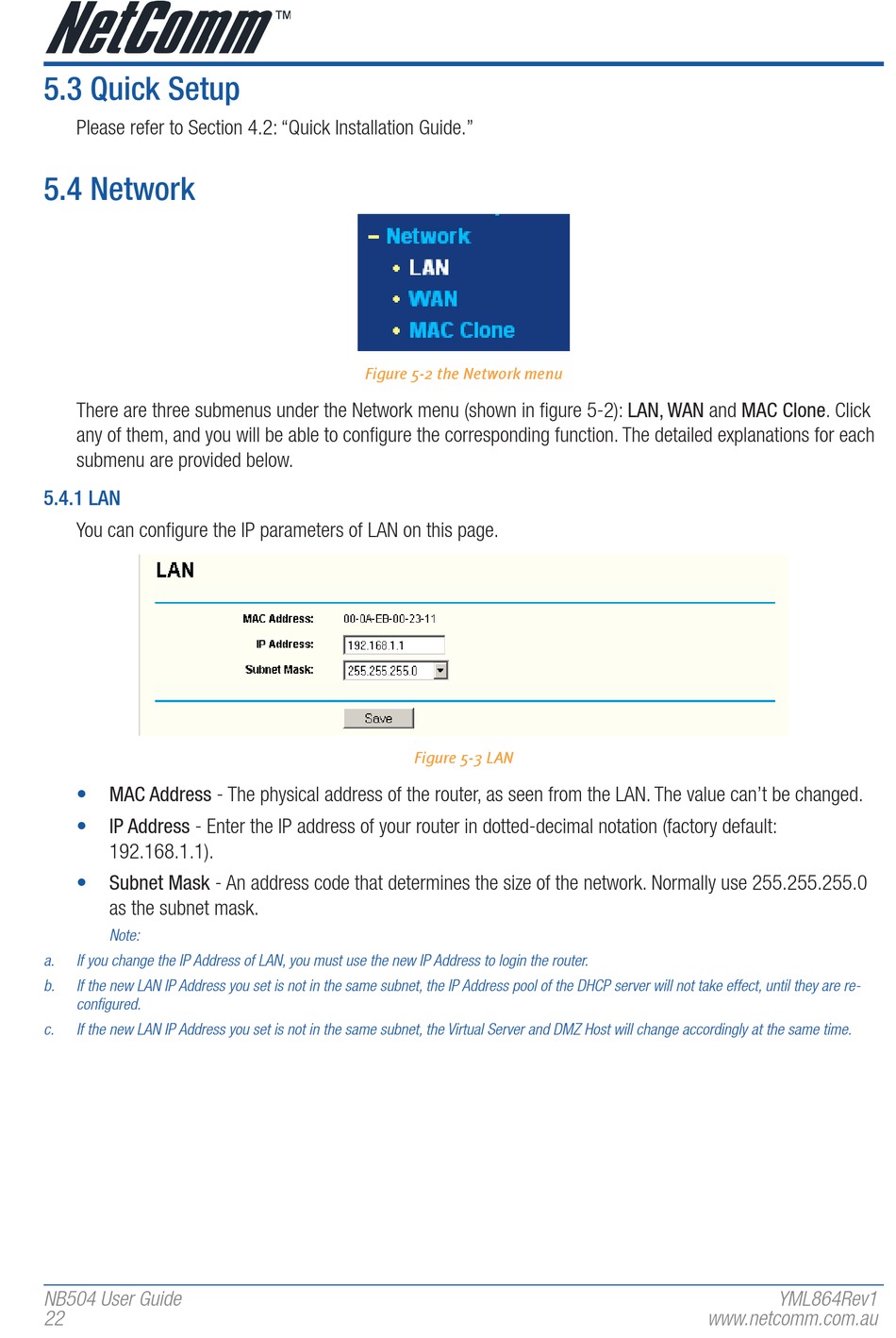

5.3 Quick setup

Please refer to Section 4.2: "Quick Installation Guide."

5.4 Network

There are three submenus under the Network menu (shown in figure 5-2): LAN, WAN and MAC Clone. Click
any of them, and you will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.

5.4.1 LAN

You can configure the IP parameters of LAN on this page.
• MAC Address - The physical address of the router, as seen from the LAN. The value can't be changed.
• IP Address - Enter the IP address of your router in dotted-decimal notation (factory default:
192.168.1.1).
• Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0
as the subnet mask.
�ote:
a. If yo� change the IP A����e�� of LA�, yo� m��t ��e the new IP A����e�� to log�n the ��o�te�� .
b. If the new LA� IP A����e�� yo� �et �� not �n the �ame ��bnet, the IP A����e�� pool of the DHCP �e��ve�� w�ll not take effect, �nt�l they a��e ��e-
config���e�.
c. If the new LA� IP A����e�� yo� �et �� not �n the �ame ��bnet, the V���t�al Se��ve�� an� DMZ Ho�t w�ll change acco����ngly at the �ame t�me.
����4 ��e�� ����e

Figure 5-2 the Network menu
Figure 5-3 LAN
