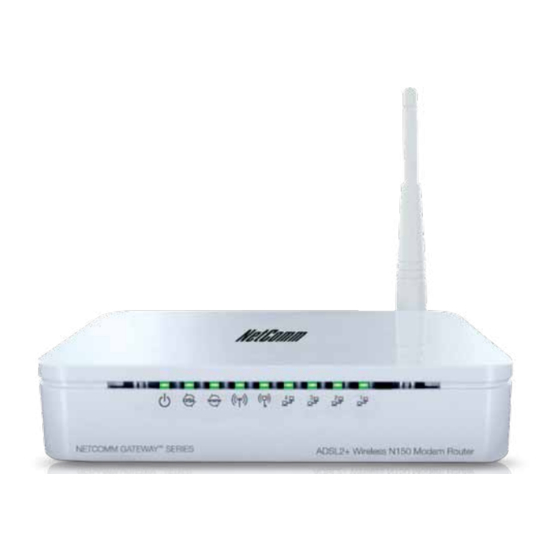

Adsl2+ wireless n150 modem router
Hide thumbs Also See for NB14WN:

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual
Broadband Setup
Netcomm NB14WN

Advertisement

loading
Need help?

Need help?

Do you have a question about the NB14WN and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm NB14WN

Summary of Contents for NetComm NB14WN

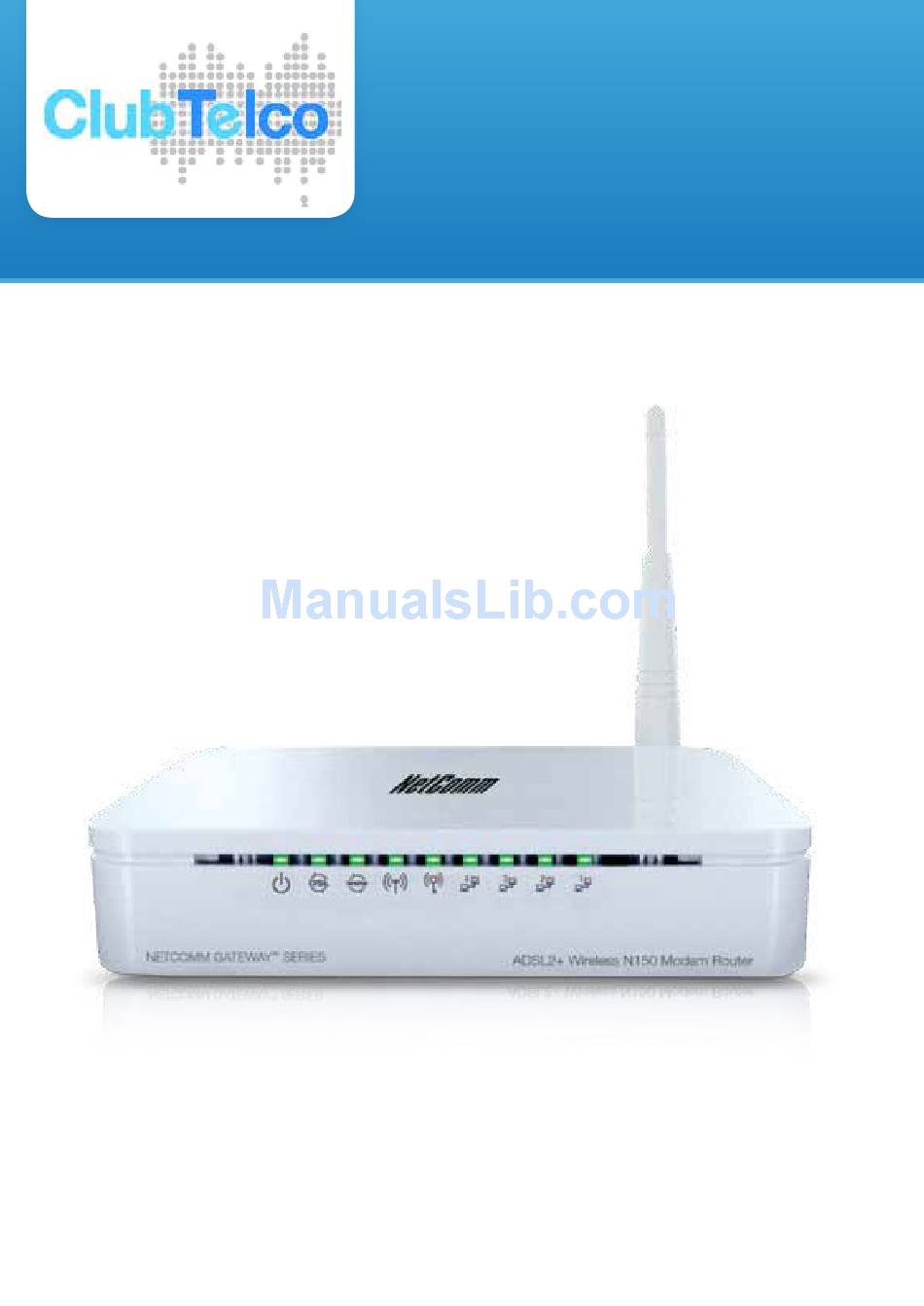

  • Page 1 Broadband Setup Netcomm NB14WN...
  • Page 2 Index Modem Reference Guide 1. Getting Started - Requirements - Connecting the NB14WN to your computer - Connecting filters 2. Configuring Your Modem - Logging into your modem - Connecting your ADSL modem to access ClubTelco 3. Setting Up Wireless...

  • Page 3: Modem Reference Guide

    Broadband Setup Netcomm NB14WN Modem Reference Guide Modem light status On the front of your modem you will notice a number of lights; the below table will explain what each of these lights mean: Diagram (1.1) Label Action Description (A) Power...

  • Page 4: Getting Started

    3. Ethernet network adapter. 4. Wireless enabled computer if you are using the wireless feature. Connecting the NB14WN to your computer 1. Connect the network cable to one of the yellow ports located at the back of the modem; the other end will connect to your computer.
  • Page 5 Broadband Setup Netcomm NB14WN 4. Now that the modem is connected to your computer, phone line and powered on, you need to ensure that the lights on the modem indicate the following: Label Action Power Ethernet (1-4) On or blinking Once you will also see a network icon appear in your task bar, you are now ready to setup your ClubTelco internet connection.
  • Page 6 Broadband Setup Netcomm NB14WN From the diagram below you can see the splitter (micro) filter acts as a double adapter and filter. Home Phone Phone Jack Microfilter Telephone Phone Jack Wall Socket Connecting an Inline Filter This filter is used on all telephones, fax lines, etc.

  • Page 7: Configuring Your Modem

    Broadband Setup Netcomm NB14WN 2. Configuring Your Modem Logging into your modem 1. Open a web browser (usually Internet Explorer) and in the address bar enter: http://192.168.1.1 2. You will be asked for a username and password, enter the following login details:...
  • Page 8 Broadband Setup Netcomm NB14WN Connecting your ADSL modem to access ClubTelco 1. Once you have logged into your modem, at the top of the screen click on Quick Start followed by the Run Wizard button once the screen has loaded.
  • Page 9 Broadband Setup Netcomm NB14WN 3. If you want to change the password for your modem you can by entering in a new password. If you choose to do so please note down the new password somewhere safe as you will need it later should you need to login to the modem.
  • Page 10 Broadband Setup Netcomm NB14WN 5. From the connection types please select PPPoE/PPPoA. Click Next to continue. 6. You will now need to enter in your ADSL connection settings. Please complete these as follows and click Next when completed: • U sername: Simply enter your ClubTelco username but much like your email address, for example;...
  • Page 11 Broadband Setup Netcomm NB14WN 7. Finally to complete the setup and save your settings, click Next. 8. Your modem has now saved the settings. Click Close and your modem will connect to ClubTelco’s internet service. This can take a few minutes so please be patient.

  • Page 12: Setting Up Wireless

    Broadband Setup Netcomm NB14WN 3. Setting Up Wireless Configuring your wireless connection 1. Log back into the modem and at the top of the screen and click on Interface Setup followed by Wireless. 2. Before beginning, ensure that Access Point is set to Activated at the top of the screen: Now under the Multiple SSID Settings section, please enter the following settings: • SSID Index: 1...
  • Page 13 Broadband Setup Netcomm NB14WN 3. You will now have an option to setup your WEP key; this will ensure that in order to connect to your wireless network a password will be required. In the Key#1 text box please enter a password of 10 characters.
  • Page 14 Broadband Setup Netcomm NB14WN 4 Email & Homepage Setup Email setup To check your ClubTelco email you can go to http://www.ClubTelco.com.au/members/ and under the Login section in the upper left hand side enter your username and password then click the Webmail button.
  • Page 15 Call 13 TELCO (13 8352) Between 9am - 10pm Monday to Friday Between 8am - 4pm Saturday & Sunday Email: support@clubtelco.com...
