Appendix B: Cable Information

This cable information is provided for your reference only. Please ensure you only connect the appropriate cable
into the correct socket on either this product or your computer.
If you are unsure about which cable to use or which socket to connect it to, please refer to the hardware
installation section in this manual. If you are still not sure about cable connections, please contact a professional
computer technician or NetComm for further advice.

RJ-45 Network Ports

RJ-45 Network Ports can connect any networking devices that use a standard LAN interface, such as a
Hub/Switch Hub or Router. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable to connect the
networking device to the RJ-45 Ethernet port. Depending on the type of connection, 10Mbps or 100Mbps, use
the following Ethernet cable, as prescribed.
10Mbps:
100Mbps:
Note: To prevent loss of signal, make sure that the length of any twisted-pair connection
does not exceed 100 metres.
90
Use EIA/TIA-568-100-Category 3, 4 or 5 cable.
Use EIA/TIA-568-100-Category 5 cable.

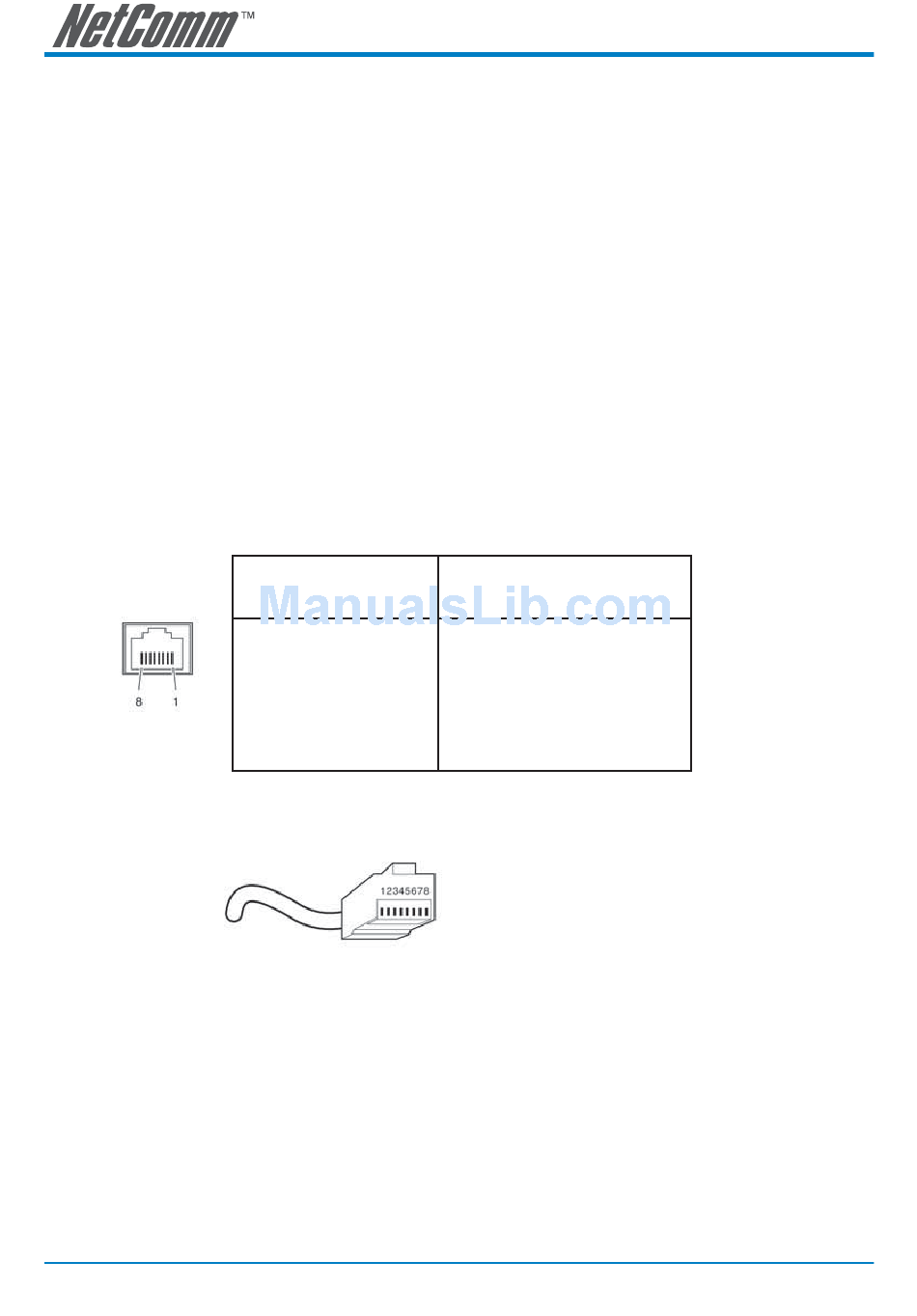

RJ-45 Connector
Pin Assignment
1
2
3
6
4,5,7,8
Figure 1
Figure 2
Normal Assignment
Input Receive Data +
Input Receive Data -
Output Transmit Data +
Output Transmit Data -
Not used
RJ-45 plug attached
to cable
