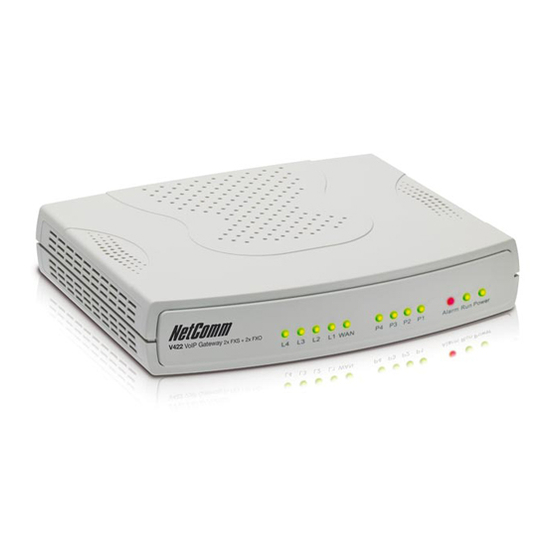

- Page 1 Netcomm V422 & V431 VoIP Gateway Quick Start Guide © Copyright 2012. All Rights Reserved.
-
Page 2: Table Of Contents
Table of Contents Introduction ..................................3 V422 Overview .................................. 3 Features ..................................3 Front Panel LED Indicator ............................. 5 Rear Panel ..................................6 V422 & 431 Web GUI ................................ 7 Web Account ................................. 7 Web Browser................................. 7 Basic Configuration ................................8 Network Settings ................................ -
Page 3: Introduction
Introduction This document gives a brief introduction to the V422 and V431 VoIP Gateway and basic sample configuration when using MyNetFone VoIP Service. V422 Overview Features VoIP Protocol SIP(RFC3261) compatible VoIP Audio Code G.729A G.711 a/ulaw ... - Page 4 4 LAN port RJ45 IEEE 802.3 10/100 BaseT for LAN switch 2 FXS RJ11 for connection to analog telephone (Netcomm V431 - 3 FXS RJ11) 2 PSTN RJ11 for connection to a normal landline to provide LifeLine and PSTN passthrough (Netcomm V431 – 1 PSTN RJ11) ©...
-
Page 5: Front Panel Led Indicator
Front Panel LED Indicator LED Indicator Status Function Power Power is supplied Power is not supplied The WAN link is established Ethernet link for the WAN port is not established Flash Data Transmitting or receiving over WAN LAN 1 ~ 4 Ethernet link for the LAN port is established Ethernet link for the LAN port is not established Flash... -
Page 6: Rear Panel
Rear Panel Number Label Description Power For connecting to the power adapter Reset To reset your V422 or V431 to its factory default settings. Press and hold for 10 seconds. (All customised settings that you have saved will be lost.) 3,4 (For V431, up to 5) Phone 1 ~ 2 (For V431 RJ-11 port for connecting to an analogue phone... -
Page 7: V422 & 431 Web Gui
V422 & 431 Web GUI Web Account Default Username: admin Default Password: admin Default LAN IP: 192.168.8.254 Web Browser Open your Web browser and type http://192.168.8.254 in the address bar. You will see the login window. © Copyright 2012. All Rights Reserved. -
Page 8: Basic Configuration
Basic Configuration Network Settings DHCP Settings © Copyright 2012. All Rights Reserved. -
Page 9: Static Ip Settings
Static IP Settings Select “Static IP” and enter the IP address, Subnet Mask and Default Gateway values. Then click the “Accept” button at the bottom of the screen. Save the settings, and then restart the system. Wait for about 40 seconds for the system to restart. PPPoE Settings Enter the Account Number, Password and re-enter Password to confirm. -
Page 10: Qos Settings (Optional)
QoS Settings (Optional) QoS (Quality of Service): Sets true bandwidth of your Internet connection to ensure sound quality during transmission. ToS/DiffServ (Type of Service/DSCP): The voice packet has the highest priority to ensure telecommunication quality; the larger the value you set, the higher priority you will get. ©... -
Page 11: Telephony Settings
Telephony Settings To be able to receive incoming calls from standard PSTN line, you must input the gateway number into “Hot Line No.” field. To obtain your gateway number, go to the menu “Private Network” © Copyright 2012. All Rights Reserved. -
Page 12: Sip
© Copyright 2012. All Rights Reserved. -
Page 13: Calling Features
Calling Features © Copyright 2012. All Rights Reserved. -
Page 14: Advanced Options
Advanced Options © Copyright 2012. All Rights Reserved. -
Page 15: System Operation
MYNETFONE STRONGLY RECOMMEND END USERS CHANGE THE ADMINISTRATOR’S NAME / PASSWORD AND WEB UI - IVR LOGIN / PASSWORD TO PROTECT ANY UNAUTHORISED THIRD PARTY ACCESS. System Operation Save the settings, and then restart the system. The system will take about 40 seconds to restart. Troubleshooting WAN and LAN port LED is black Please check the type of your Ethernet cable (cross over/straight through cable). -
Page 16: Non-Continuous Voice
5. In SIP Tab, Make sure you tick following: a. Enable Support of SIP Proxy Server / Soft Switch b. Use Domain to Register Non-continuous voice Please call MyNetFone Customer Support on 181 or 1300 731 048 Cannot receive any incoming calls If you cannot receive any incoming calls, please make sure you untick “Unconditional Forward”... - Page 17 5. How does Call-hunting work? Select group hunting when there is an incoming call and the gateway will automatically assign an unassigned call according to the Hunting Priority. If Line 2 does not want to be set as an assigned line to receive any inbound calls, the function can be disabled.
- Page 18 9. How to access V431 IVR? a) FXS Port 1) Connect the Gateway to the telephones as required. 2) To access the gateway via IVR, pick up the handset and press ***4144534954#. Convert your password to a numerical sequence. 3) After entering a correct IVR password, you will hear a indication tone which is beep tones 4) About approximate 1 second apart, now the system is in IVR mode.
-
Page 19: Contact Mynetfone
Contact MyNetFone General +61 2 8008 8000 Fax +61 2 8008 8000 Customer Care 1300 731 048 (or 181 from your MyNetFone Service) Web http://www.mynetfone.com.au Support http://www.mynetfone.com.au/support FAQs http://www.mynetfone.com.au/faq/ Email support@mynetfone.com.au © Copyright 2012.
