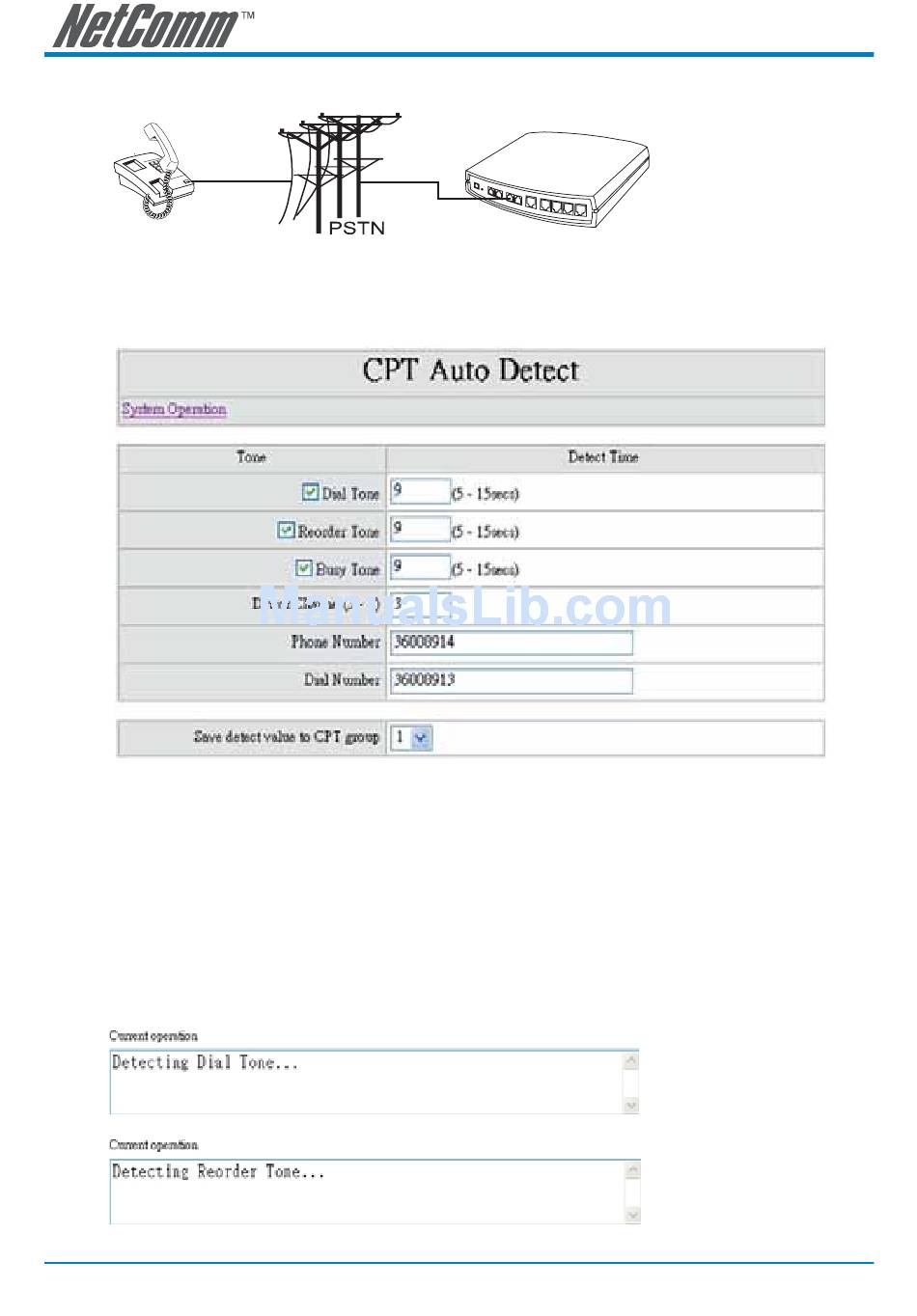

Direct Connection to PSTN
Note:
The above diagrams show a 4-port SmartVoice gateway for illustration purposes.
An 8, 16 or 32 port SmartVoice gateway could also be used depending upon your
network requirements.
• Connect one of the trunk lines to the Gateway FXO Port.
• The line of "Dial Number" (36008913) must be on-hook.
• Detect Channel: Enter 3 (if the trunk line is connected to P3, and uses P3 for outgoing detection).
• Phone Number: Enter the number of the FXO line.
• Dial Number: Enter the number of the end to be tested—36008913.
• CPT group: Enter the group to save your settings to once the test has been completed.
• Finally, click the "Accept" button.
Detection in Progress: during detection, the following windows will appear.
