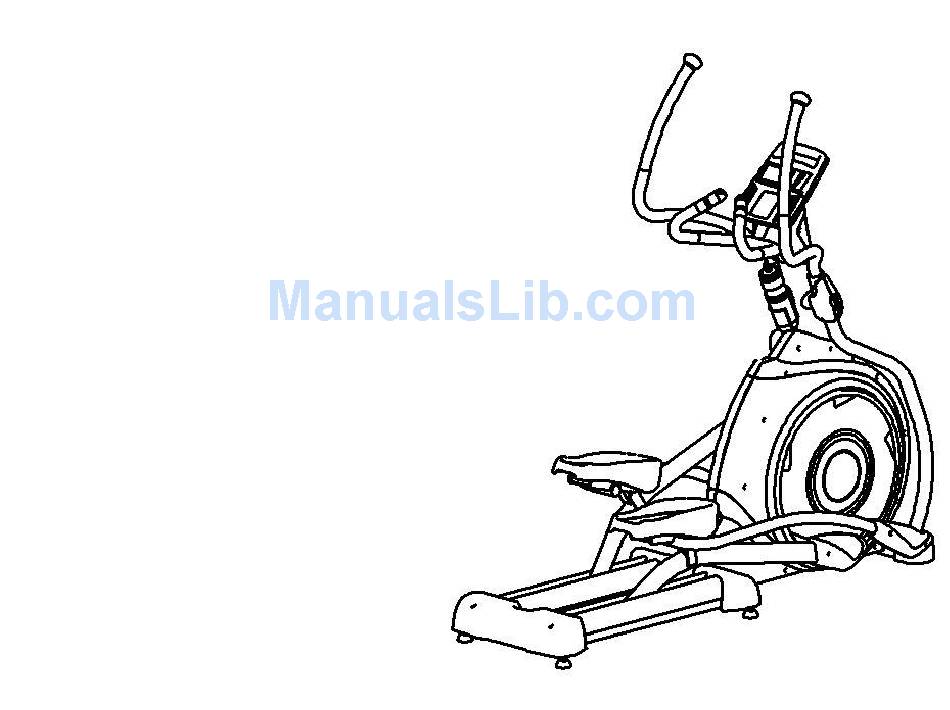

- Page 1 ASSEMBLY INSTRUCTION E-I.
-
Page 2: Important Safety Instructions
Thank you for purchasing our product! Before assembly, please read the CAUTION carefully IMPORTANT SAFETY INSTRUCTIONS UNPACKING THE UNIT WARNING - Read all instructions before using this appliance. elliptical 1. To move the heavy parts safely, we strongly suggest to assemble this 1. - Page 3 NOTE Console type may differ from the illustration. Please refer to your order for the actual console. Assembly List (108) Console (05)&(06) Handle Bar(R)&(L) (07)&(08) Pedal Bracket(R)&(L) (02) Console Post (66) Rear Stabilizer Cover (01) Assembly Frame...
- Page 5 STEP 1: As shown in the illustration, lay (01) Assembly Frame on the even ground carefully, and take out (02) Console Post. NOTE There is a round cardboard on the top of (02) Console Post. Do NOT remove cardboard before assembling (67) &...
- Page 6 STEP 2: As shown in the illustration, find 4 pieces (133) Bolt M5x10mm on the back of (108) Console. Take the 4 pieces (133) off for the following steps. Put (108) Console on (09) Console Bracket, thread (108-1), (108-2) (108-3) Console Cable through the round hole of (09), and...
- Page 7 STEP 4: As shown in the illustration, attach (54) Lower Console Post Cover(L) and (55) Lower Console Post Cover(R) to (02) Console Post, aim the screw hole of (54) & (55) at (02) correctly, and secure them with 2 pieces (124) Round Head Bolt M5x12mm and 2 pieces (125) Self Tapping Screw 3/16”x5/8”...
- Page 8 STEP 6: As shown in the illustration, find (131) Pedal Axle and (28) Nut M10 assembly on the right side of (04) Pedal Arm. Take off (131) & (28) for following steps. Install (07) Pedal Bracket(R) onto the right side of (04) on the correct position.
- Page 9 STEP 8: As shown in the illustration, put (69) Pedal over (07) Pedal Bracket(R). Aim the screw hole correctly and secure them with 4 pieces (123) Truss Head Bolt M5x12mm by (118) Screw Driver 40mm. Attach (66) Rear Stabilizer Cover onto the rear stabilizer of (01) Assembly Frame.
-
Page 10: Final Adjustment
FINAL ADJUSTMENT: As shown in the illustration, adjust the horizontal height of elliptical by turning (85) Foot Pad if needed. Congratulations! You’ve finished the assembly, and could start using this functional product after warm-up. Please use and storage this product on the even and dry ground, and keep this manual for safety purpose. NOTE While movement of the elliptical is needed, make sure to move it the way shown in the illustration with assistance. - Page 11 PARTS LIST (E-I.) NAME Q'TY NAME Q'TY NAME Q'TY Assembly Frame Chain Cover(R) Console Post Round Disk Cross Bar Nut M10 Round Disk Cap Pedal Arm Nut M10x8T Upper Console Post Cover(L) Handle Bar(R) Washer ø 10xø 27x2T Upper Console Post Cover(R) Handle Bar(L) Washer ø...
- Page 12 PARTS LIST (E-I.) NAME Q'TY NAME Q'TY NAME Q'TY Hand Pulse Cover (Upper) Flywheel Rail Fixing Plate Hand Pulse Cover (Lower) Spring Idler Bracket Hand Pulse Ring Idler Axle Pedal Rack End Cap Flywheel Axle Bushing ø42 Aluminum Rail PU Wheel Axle Hand Pulse Foam Pedal Axle Handle Foam...
