5.2.10 Frame relative time display setting（REL TIME）
When setting the display (FRM DISP) of a frame counter as relative time (TIME) and having set the
setting and the frame time display setting (FRM DISP) as exposure center time (EXPOSURE), you can
choose the nominal of relative time.
Trigger frame time nominal
You set trigger frame time about the nominal of Rehm relative time.
Frame relative time becomes the time which pulled trigger frame time from frame time.
Trigger signal time nominal
You set trigger signal input time about the nominal of frame relative time.
Frame relative time becomes the time which pulled trigger signal input time from frame time.
1) While in the STOP mode, press MENU
TOP MENU.
2) Use the arrows
MENU and press SET
3) Use the arrows
MENU (Figure 5-18).
4) Use the arrows
setting.
FRAME Trigger frame time nominal
TRIGGER Trigger signal time nominal
to select "SYS MENU" from the TOP
to display the SYS MENU.
to select "REL TIME" from the SYS
to select frame relative time display
to display the
5-12

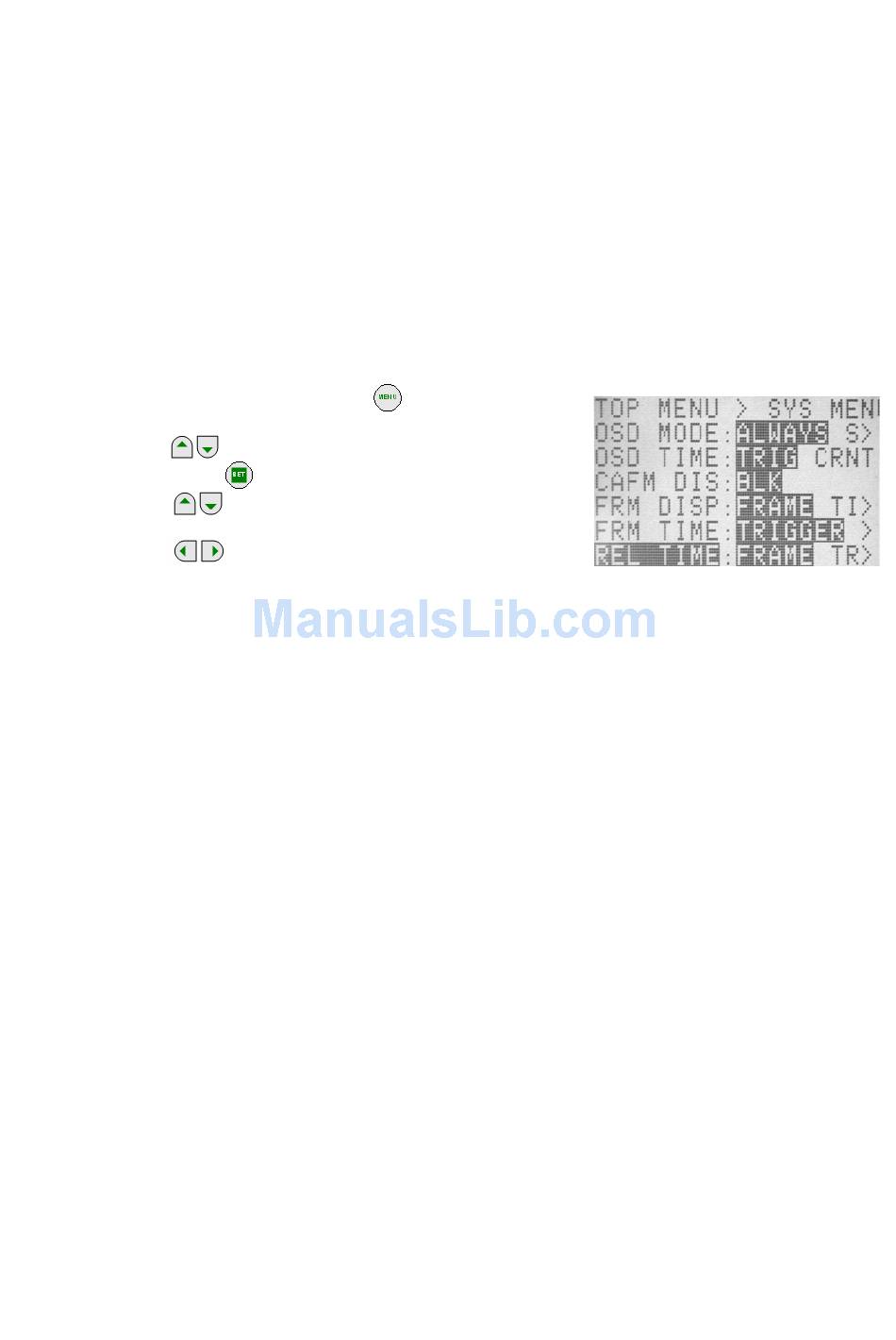

Figure 5-18 REL TIME
