SMART 600i4 User Manual

Hide thumbs Also See for 600i4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

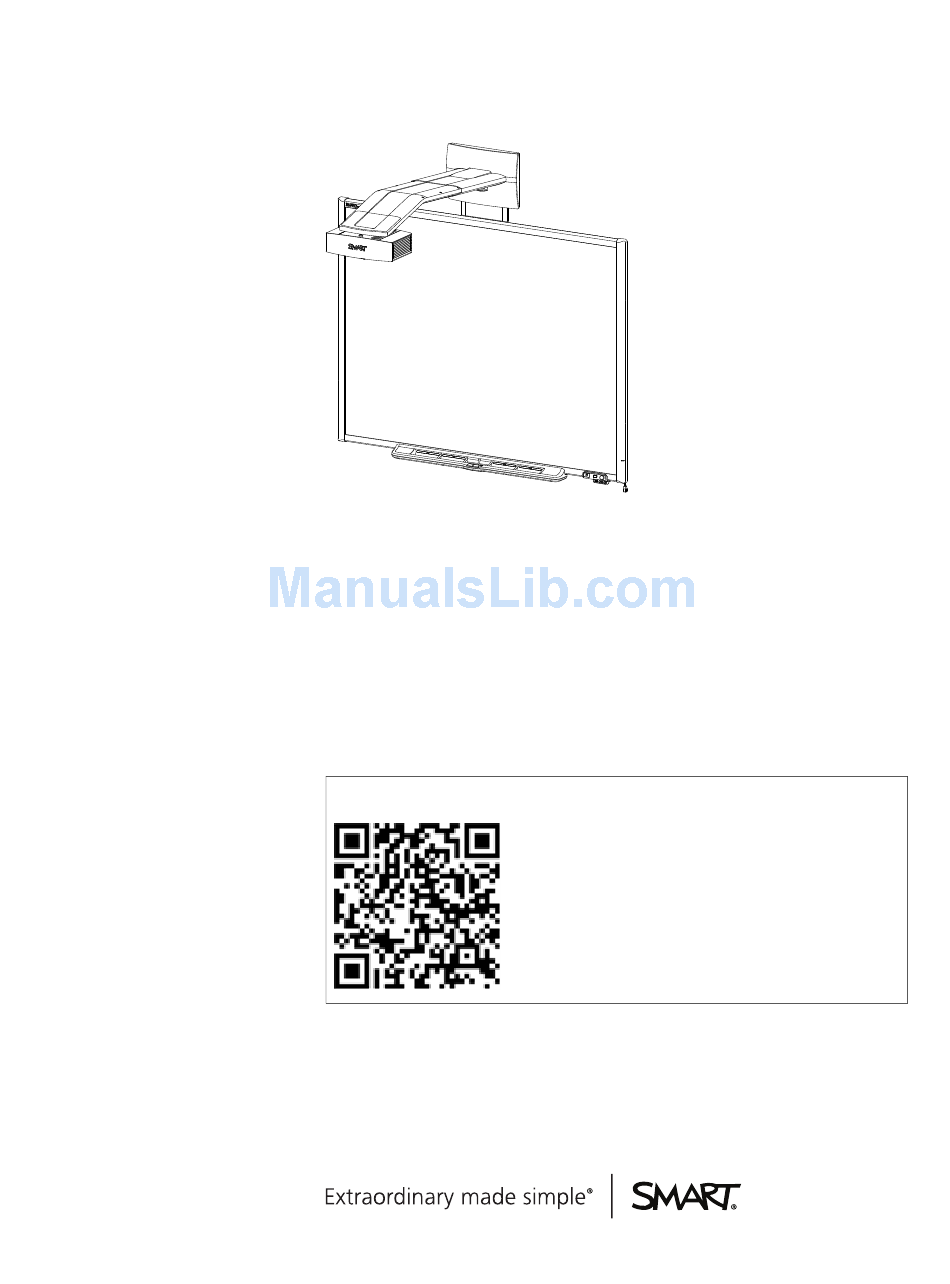

SMART Board® 600i4
Interactive whiteboard system
Configuration and user's guide
Read this guide on your smart phone or other mobile device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600i4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART 600i4

Summary of Contents for SMART 600i4

  • Page 1 SMART Board® 600i4 Interactive whiteboard system Configuration and user’s guide Read this guide on your smart phone or other mobile device.
  • Page 2 © 2012 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

  • Page 3: Important Information

    Failure to follow the installation instructions shipped with your SMART product could result in personal injury and damage to the product. To reduce the risk of fire or electric shock, do not expose the SMART product to rain or moisture.
  • Page 4 I M P O R T A N T I N F O R M A T I O N Two people are required to mount your SMART product because it may be too heavy for one person to safely maneuver.
  • Page 5 Make sure an electrical socket is near your SMART product and remains easily accessible during use. Using your SMART product near a TV or radio could cause interference to the images or sound. If this happens, move the TV or radio away from the projector.
  • Page 6 High. Cycling power to the projector repeatedly can lock or damage your SMART product. After you put the product into Standby mode, wait at least 45 minutes for cooling before starting the product again.
  • Page 7 Changing other settings might damage or affect the operation of your projector and may invalidate your warranty. When transporting your SMART product, repack it with as much of the original packaging as possible. This packaging was designed with optimal shock and vibration protection.

  • Page 8: Environmental Requirements

    I M P O R T A N T I N F O R M A T I O N Environmental requirements Before you install your SMART Board 600 interactive whiteboard system, review the following environmental requirements. Environmental Parameter requirement Operating temperature 41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m)

  • Page 9: Table Of Contents

    Contents Important information Safety warnings, cautions and important information Environmental requirements Chapter 1: About your interactive whiteboard system SMART Board 600i4 interactive whiteboard system features Included accessories Optional accessories Chapter 2: Installing your interactive whiteboard system Choosing a location Choosing a height...
  • Page 10 C O N T E N T S Appendix A: Remotely managing your system through a network interface Web page management Simple Network Management Protocol (SNMP) Appendix B: Remotely managing your system through an RS-232 serial interface Connecting your room control system to the ECP Projector programming commands Appendix C: Disabling user USB access Appendix D: Remote control code definitions...

  • Page 11: Chapter 1: About Your Interactive Whiteboard System

    Your SMART Board 600i4 interactive whiteboard system uses the short-throw, high-offset SMART UF65 or SMART UF65w projector. Although the projector’s basic operation is the same as that of earlier models, SMART made many improvements that make the SMART UF65 and SMART UF65w projectors easier to install and use.

  • Page 12: Smart Board 600 Series Interactive Whiteboard

    SMART Board 600 series interactive whiteboard Your SMART Board 600 series interactive whiteboard includes many features of earlier SMART Board interactive whiteboards, such as a resistive touch screen and a pen tray. The SMART Board 600 series interactive whiteboard performs best with the SMART UF65 projector because of its exceptional color performance and input response.

  • Page 13: Smart Uf65 Or Smart Uf65W Projector

    Wall-mounted, high-offset projector engine that uses DLP® technology by Texas Instruments™, providing BrilliantColor™ performance and Gamma 2.2 correction with SMART Presentation, Bright Room, Dark Room, sRGB and User modes PAL, PAL-N, PAL-M, SECAM, NTSC, NTSC 4.43 video system compatibility Composite, S-video, and VESA RGB with additional interface support for Component YPbPr...

  • Page 14: Included Accessories

    C H A P T E R 1 About your interactive whiteboard system Extended Control Panel (ECP) Your projector system’s ECP attaches to the bottom frame of your interactive whiteboard. The ECP features controls for power, source selection and volume adjustment, as well as an integrated USB hub that enables you to switch seamlessly between two connected computers.

  • Page 15: Optional Accessories

    C H A P T E R 1 About your interactive whiteboard system   N O T E Some of SMART’s older pens aren’t designed to reflect infrared light and the pen tray sensors might not detect them reliably.   T I P Wrap light-colored tape around a substitute pen to improve the reflection of infrared light and help with tool detection.

  • Page 17: Chapter 2: Installing Your Interactive Whiteboard System

      I M P O R T A N T Use the SMART Board 600i4 and D600i4 interactive whiteboard systems installation instructions (smarttech.com/kb/146183) to install your interactive whiteboard, projector and ECP.

  • Page 18: Choosing A Height

    Choosing a height SMART includes a mounting template with each interactive whiteboard system. If you lose this template, contact your authorized SMART reseller. Using this template ensures that you can do the following: Mount the projector at a safe height for head space clearance, while maintaining enough space for airflow and installation access above the unit.

  • Page 19: Installing Smart Software

    Download SMART software from smarttech.com/software. These pages list the minimum hardware requirements for each software version. If SMART software is already installed on your computer, take this opportunity to upgrade your software to ensure compatibility.

  • Page 20: Securing Your Interactive Whiteboard System

    This section explains how to secure the different components of your interactive whiteboard system. Locking the pen tray to your interactive whiteboard To learn how to lock the pen tray to your interactive whiteboard, see the SMART Board 600 and D600 series interactive whiteboard installation and user’s guide (smarttech.com/kb/001414).

  • Page 21: Chapter 3: Using Your Interactive Whiteboard System

    Chapter 3 Using your interactive whiteboard system Using your projector Using your remote control Replacing the remote control battery Using the remote control buttons Adjusting projector settings Focusing the image Adjusting the image Projector connection diagram Using your interactive whiteboard Using the Extended Control Panel (ECP) This chapter describes the basic operation of your interactive whiteboard system and explains how to set up your remote control, retrieve system information, access the projector’s image adjustment...

  • Page 22: Replacing The Remote Control Battery

    C H A P T E R 3 Using your interactive whiteboard system Replacing the remote control battery Follow this procedure to replace the remote control battery.   W A R N I N G Reduce the risk associated with a leaking battery in the projector’s remote control by following these practices: Use only the specified type of coin-cell battery.

  • Page 23: Using The Remote Control Buttons

    C H A P T E R 3 Using your interactive whiteboard system Using the remote control buttons The projector remote control enables you to access on-screen menus and change projector settings. Use the Power button on the remote control or ECP to put the projector into Standby mode or to turn it on.

  • Page 24: Adjusting Projector Settings

    ECP is not a substitute for the remote control. Setting Notes Image Adjustment menu Display Mode Indicates the projector’s display output The default is SMART Presentation. (SMART Presentation, Bright Room, Dark Room, sRGB and User). Brightness Adjusts projector brightness from 0 to The default is 50.
  • Page 25 Moves the vertical position of the Don’t adjust this setting unless you’re source video up or down from -5 to 5 advised to by SMART Support. (relative to the projected image). Apply this setting only after you make all boom adjustments.
  • Page 26 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Projector Functions menu 3D On/Off Turns the DLP Link technology 3D The default is off. feature on or off. 3D Format Displays the current 3D format Interleaved breaks down the image (Interleaved or Under-over).
  • Page 27 (SMART, Capture User Startup projector lamp is starting and a video Screen or Preview Startup Screen). source signal isn’t displayed. SMART displays the default SMART logo on a blue background. Capture User Startup Screen closes the on-screen display menu and captures the entire projected image.
  • Page 28 Don’t adjust this setting unless you want to reset all of the applied settings, or unless you’re advised to by a SMART Support specialist. Network menu Network and VGA Activates the projector’s VGA Out and RJ45 connector and network features.
  • Page 29 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Group Name Displays the projector’s workgroup You can set the projector’s workgroup name as set by an administrator name using the remote management (maximum 12 characters). features (see Remotely managing your system through a network interface on page 63 and Remotely managing your...

  • Page 30: Focusing The Image

    C H A P T E R 3 Using your interactive whiteboard system Setting Notes Input Displays the currently displayed video input source (VGA-1, VGA-2, Composite, S-Video or None). Resolution Displays the projector’s most recently If there is no current video input source detected video source signal resolution signal, this setting displays the last and refresh rate.

  • Page 31: Adjusting The Image

    Rotate the focus ring right or left until the image is in focus. Adjusting the image Refer to these notes when adjusting the projected image as described in the included SMART Board 600i4 and D600i4 interactive whiteboard systems installation instructions (smarttech.com/kb/146183).

  • Page 32: Projector Connection Diagram

    C H A P T E R 3 Using your interactive whiteboard system To fine-tune the image, you might need to repeat all steps described in the installation document in smaller increments. Projector connection diagram You can connect a variety of peripheral devices to your projector, including DVD/Blu-ray players, VCRs, document cameras, digital cameras and high-definition sources, as well as peripheral device outputs such as a secondary projector or a flat-panel display and powered speakers.
  • Page 33 (and left and right RCA audio input)   N O T E S Remove the cable cover to access the connection panel. To connect your SMART Board 600 series interactive whiteboard, see the SMART Board 600 and D600 series interactive whiteboard installation and user’s guide (smarttech.com/kb/001414).

  • Page 34: Using Your Interactive Whiteboard

    For more information on this software, press the Help button on your interactive whiteboard pen tray. For additional resources, go to smarttech.com, click the flag icon to the right of the SMART logo, and then select your country and language. In the Support section of this website, you’ll find up-to-date, product-specific information, including setup instructions and specifications.
  • Page 35 Right side USB B receptacle (for a secondary computer such as a laptop)   N O T E This USB receptacle is active only when you select VGA2 as the projector input source. USB A receptacle (for SMART Board interactive whiteboard only)
  • Page 36 Using your interactive whiteboard system Number Function USB B receptacle (for your primary computer)   N O T E This USB receptacle is active only when you select VGA1 as the projector input source. Back RJ11 6-conductor receptacle (for SMART Hub™ SE collaboration platform control)

  • Page 37: Chapter 4: Integrating Other Devices

    SMART UF65 projector SMART UF55w projector Connecting peripheral sources and outputs This chapter provides information on integrating your SMART Board 600i4 interactive whiteboard system with peripheral devices. Video format compatibility Your projector has a native video format and various video format compatibility modes. You can change image appearances for certain formats and compatibilities.
  • Page 38 Integrating other devices Video format compatibility The following tables list the projectors’ compatible VESA RGB video formats by resolution, which you can adjust by using the aspect ratio commands described in Adjusting projector settings on page SMART UF65 projector Resolution Mode Aspect ratio Refresh rate (Hz) “Match Input”...
  • Page 39 C H A P T E R 4 Integrating other devices SMART UF65w projector Resolution Mode Aspect ratio Refresh rate (Hz) “Match Input” appearance 720 × 400 720×400_85 85.039 Letterbox 640 × 480 VGA 60 59.94 Pillarbox 640 × 480 VGA 72 72.809...

  • Page 40: Video System Signal Compatibility

    C H A P T E R 4 Integrating other devices SMART UF65 projector Signal format Aspect ratio Horizontal Vertical “Match Input” frequency (kHz) frequency (Hz) appearance 480i (DVD player) 15.73 59.94 Full screen (640 × 480) 567i (DVD player) 15.63 Letterbox (720 ×...

  • Page 41: Connecting Peripheral Sources And Outputs

    Do not disconnect cables from the ECP to connect peripheral devices because you could disconnect controls for your interactive whiteboard. Don’t connect SMART Board Audio (SBA-L) USB speakers to the ECP. Connect these speakers to the projector using a dual-channel (left and right) RCA plugs-to-3.5 mm audio connector cable (included with the speakers).
  • Page 42 C H A P T E R 4 Integrating other devices To connect a peripheral source or output to your projector 1. If you have speakers installed, turn the volume dial on the ECP all the way down to prevent buzzing or a spark.

  • Page 43: Chapter 5: Maintaining Your Interactive Whiteboard System

    This chapter includes methods for properly cleaning and preventing damage to your SMART Board 600i4 interactive whiteboard system. Maintaining your interactive whiteboard For information on maintaining your interactive whiteboard, see the SMART Board 600 and D600 series interactive whiteboard installation and user’s guide (smarttech.com/kb/001414). Cleaning the projector  ...
  • Page 44 This section provides instructions for using a vacuum cleaner to remove accumulated dust from your projector lamp module, vents and slots. SMART recommends cleaning your projector every six months. However, if your projector is regularly exposed to dust, clean it every three months.

  • Page 45: Removing The Projector From The Boom

    C H A P T E R 5 Maintaining your interactive whiteboard system Replace the lamp module and lamp cover (page 40) Replace the projector (page 40) You need a Phillips No. 2 screwdriver to perform the following procedures. Removing the projector from the boom Before you can access the projector lamp module, you must remove the projector from the boom.
  • Page 46 C H A P T E R 5 Maintaining your interactive whiteboard system 4. While firmly holding the projector, and without applying pressure or weight to the projector boom, remove the screw holding the projector cover in place with the screwdriver, and then remove the cover.

  • Page 47: Accessing The Lamp Module

    C H A P T E R 5 Maintaining your interactive whiteboard system 7. Using two hands, carefully unhook and remove the projector from the projector boom. 8. Lay the projector flat on your work area with the warning lights facing upward. Accessing the lamp module To access the lamp module, remove the lamp cover, and then remove the lamp from the projector.
  • Page 48 C H A P T E R 5 Maintaining your interactive whiteboard system 2. Using the screwdriver, loosen the two screws on the inner lamp module. The screws remain captive inside the lamp module.

  • Page 49: Vacuuming The Lamp Module And Projector Vents

    C H A P T E R 5 Maintaining your interactive whiteboard system 3. Pull up on the lamp module’s handle, and then remove the lamp.   C A U T I O N Do not touch the lamp with your fingers when removing, cleaning and replacing the lamp module.

  • Page 50: Replacing The Lamp Module And Lamp Cover

    C H A P T E R 5 Maintaining your interactive whiteboard system 2. Thoroughly vacuum the three top vents, the lamp slot and the I/O panel vent for 10 seconds each. Replacing the lamp module and lamp cover After you vacuum the lamp module and projector vents, replace the lamp module and cover. To replace the lamp module and lamp cover 1.
  • Page 51 C H A P T E R 5 Maintaining your interactive whiteboard system To replace the projector on the boom 1. Using two hands, lift the projector align the hooks on the boom with the slots on the projector.   C A U T I O N Hold the projector firmly when attaching it to the boom.
  • Page 52 C H A P T E R 5 Maintaining your interactive whiteboard system 4. Replace the projector cover on the top of the boom. 5. Without applying pressure to the boom, replace and tighten the cover screw until it’s secure. 6.

  • Page 53: Focusing And Adjusting The Projector Image

      N O T E You might need to adjust the projected image after you perform the previous procedures. For more information, see the included SMART Board 600i4 and D600i4 interactive whiteboard system installation instructions (smarttech.com/kb/146183) and Adjusting the image on page 21.
  • Page 54 Thoroughly clean the area around the projector, and discard any edible items placed in that area because they could be contaminated. Call your authorized SMART reseller for instructions. Do not attempt to replace the lamp. Replacing the lamp module in a wall-mounted projector can result in a fall or injury. Use caution when climbing a ladder, and consider removing the projector from the boom to replace the lamp module.
  • Page 55 C H A P T E R 5 Maintaining your interactive whiteboard system To remove and replace the projector lamp module 1. Remove the outer lamp cover and set it aside. 2. Using the screwdriver, loosen the two screws on the inner lamp module. The screws remain captive inside the lamp module.
  • Page 56   N O T E You might need to adjust the projected image after you perform the previous procedures. For more information, see the included SMART Board 600i4 and D600i4 interactive whiteboard system installation instructions (smarttech.com/kb/146183) and Adjusting the image on...

  • Page 57: Resetting The Lamp Hours

    You’re unable to reset the Display Hour value because it’s the running total of hours the projector has been in use. 3. Press the Menu button on the remote control. The SMART UF65 Settings menu appears. 4. Select to confirm that Lamp Hour is reset to zero.

  • Page 59: Chapter 6: Troubleshooting Your Interactive Whiteboard System

    Chapter 6 Troubleshooting your interactive whiteboard system Before you start Locating status lights Locating serial numbers Determining you interactive whiteboard system’s status Resolving interactive whiteboard issues Resolving operation issues Resolving connection issues Resolving controller module issues Resolving projector issues Resolving projector errors Your projector stops responding The “Projector Overheated”, “Fan Failure”...

  • Page 60: Before You Start

    Locating serial numbers The SMART Board 600 series interactive whiteboard serial number is located on the lower-right edge of your interactive whiteboard’s frame. For more information, see the SMART Board 600 and D600 series interactive whiteboard installation and user’s guide (smarttech.com/kb/001414).

  • Page 61: Determining You Interactive Whiteboard System's Status

    C H A P T E R 6 Troubleshooting your interactive whiteboard system The SMART UF65 projector serial number is located on the top of the projector.   T I P You can also access the projector’s serial number through the on-screen menu. For more information, see Adjusting projector settings on page 14.

  • Page 62: Resolving Interactive Whiteboard Issues

    (for example, the circuit breaker is off). Resolving interactive whiteboard issues This section includes information on resolving issues with your interactive whiteboard. For information not covered in this section, see the SMART Board 600 and D600 series interactive whiteboard installation and user’s guide (smarttech.com/kb/001414).

  • Page 63: Resolving Projector Issues

    If the controller module takes longer than 10 seconds to start up, disconnect the interactive whiteboard’s USB cable, wait 10 seconds, and then reconnect it. If the issue persists, update the firmware as documented in the SMART Board 600 and D600 series interactive whiteboard installation and user’s guide (smarttech.com/kb/001414).

  • Page 64: Your Projector Stops Responding

    5. Connect the power cable, and then turn on the projector. 6. Adjust the fan speed using the service menu. 7. If the previous steps don’t resolve the issue, put the projector into Standby mode, disconnect the power cable, and then contact your authorized SMART reseller.

  • Page 65: The "Lamp Failure" Message Appears

    43. 4. If replacing the lamp module doesn’t resolve the issue, put the projector into Standby mode, disconnect the power cable, and then contact your authorized SMART reseller. The projector Power and Service lights are off If the projector Power and Service lights are both off, one of the following issues is occurring: There was a power outage or a power surge.

  • Page 66: Resolving Image Issues

    4. If there are any extension cables, switch boxes, connection wall plates or other devices in the video connection from the computer to the projector, temporarily remove them to ensure they are not causing the video signal loss. 5. If your projector still doesn’t show a source signal, contact your authorized SMART reseller.

  • Page 67: Partial, Scrolling Or Incorrectly Displayed Image

    2. Double-click Display. The Display Properties window appears. 3. Click the Settings tab. 4. Verify that your display resolution setting is 1024 × 768 (SMART UF65 projector) or 1280 × 800 (SMART UF65w projector). 5. Click Advanced, and then click the Monitor tab.

  • Page 68: Frozen Image

    5. Disconnect the power cable from the power outlet, and then wait at least 60 seconds. 6. Connect the power cable, and then turn on the projector. 7. If the previous steps don’t resolve the issue, contact your authorized SMART reseller. The image from your connected laptop computer isn’t projected Laptop computer settings can interfere with projector operations.

  • Page 69: Resolving Audio Issues

    You must display the source input’s video to play its audio through the connected speakers or audio system. 6. If the previous steps don’t resolve the issue, contact your authorized SMART reseller. Resolving network communication issues If you don’t have network access, perform the following procedure to troubleshoot your system.

  • Page 70: Resolving Ecp Issues

    IP address into your browser or SNMP agent. 4. If you still don’t have network access, contact your network administrator. If your administrator is unable to resolve the issue, contact your authorized SMART reseller. Resolving ECP issues If the ECP isn’t receiving power, complete the following tasks: Confirm that the ECP cable harness’s 11-pin connector is properly connected to the ECP.

  • Page 71: Transporting Your Interactive Whiteboard System

    3. Scroll to Exit, and then press Enter on the remote control to exit the projector service menu. Transporting your interactive whiteboard system Save your original SMART Board interactive whiteboard packaging so that it’s available if you need to transport your interactive whiteboard system. When required, repack it with all of the original packaging.

  • Page 73: Appendix A: Remotely Managing Your System Through A Network Interface

    E-mail alerts Password settings Simple Network Management Protocol (SNMP) This appendix includes detailed instructions on how to remotely manage your SMART Board 600i4 interactive whiteboard system settings through a network interface. Web page management You can access advanced setup features via the projector’s web page. This web page enables you to manage the projector from a remote location using any computer connected to your intranet.

  • Page 74: Home

    2. Type the IP address in the address line field, and then press ENTER. The SMART UF65 Projector Settings (or SMART UF65w Projector Settings) window appears. 3. Select the menu options in the left pane to access the settings on each page.
  • Page 75 French or Spanish, depending on television channel or media setup. Display Mode Adjusts the display output to SMART Presentation, Bright Room, Dark Room, sRGB and User modes so you can project images from various sources with consistent color performance: SMART Presentation is recommended for color fidelity.
  • Page 76 Startup Screen Sets the type of startup screen to SMART or User. The SMART screen is the default SMART logo on a blue background. The User screen uses the saved picture from the Capture User Startup Screen function.

  • Page 77: 3D Settings

    Projector Mode Adjusts the projection mode to Front, Ceiling, Rear or Rear Ceiling.   I M P O R T A N T SMART recommends that you never change this setting from the Ceiling projection mode. Source Adjusts the input source to VGA-1, VGA-2, Composite or S-Video.
  • Page 78 A P P E N D I X Remotely managing your system through a network interface Submenu setting Description DHCP Determines if the projector’s IP address and other network settings are dynamically assigned by a DHCP server or manually set. On allows the network’s DHCP server to assign a dynamic IP address to the projector.

  • Page 79: E-Mail Alerts

    Submit.   N O T E The projector sends an alert e-mail (SMART Alert) to your e-mail address. Click E-mail Alert Test to confirm that your e-mail address and SMTP server settings are correct by sending a test e-mail (SMART Alert-Test Mail).

  • Page 80: Simple Network Management Protocol (Snmp)

    MIB files link in the Hardware section for the SMART UF65 projector. The SNMP agent in your projector supports SNMP version 1 or 2. Upload the MIB file to your SNMP management system application, and then use it as described in your application’s user guide.

  • Page 81: Appendix B: Remotely Managing Your System Through An Rs-232 Serial Interface

    System controls This appendix includes detailed instructions on how to set up your computer or room control system to remotely manage your SMART Board 600i4 interactive whiteboard system settings through an RS-232 serial interface. Connecting your room control system to the ECP...

  • Page 82: Serial Interface Settings

    A P P E N D I X Remotely managing your system through an RS-232 serial interface Serial interface settings The serial interface of the projector acts as a Data Communications Equipment (DCE) device and its settings can’t be configured. You must configure your computer’s serial communication program (such as Microsoft®...

  • Page 83: Projector Programming Commands

    A P P E N D I X Remotely managing your system through an RS-232 serial interface 4. Type commands to configure your settings.   N O T E S To see a list of commands available in the current operating mode, type ? and then press ENTER.

  • Page 84: Value-Based Command Methods

    A P P E N D I X Remotely managing your system through an RS-232 serial interface Press ENTER after typing each command. After the projector executes a command, it generates a response. To prevent buffer overrun, don’t send another command until you receive the next command prompt.

  • Page 85: Power State Controls

    A P P E N D I X Remotely managing your system through an RS-232 serial interface The following examples set the brightness of VGA1, regardless of whether it’s the current source: >set brightness vga1=65 brightness vga1=65 >set brightness vga1-7 brightness vga1=58 Power state controls These commands put the projector in and out of Standby mode and request the projector’s current...

  • Page 86: Source Selection Controls

    A P P E N D I X Remotely managing your system through an RS-232 serial interface Source selection controls These commands switch input sources. The source type determines which commands can be accepted. Command Response Available in Standby mode get input input=[field] set input=[field]...
  • Page 87 A P P E N D I X Remotely managing your system through an RS-232 serial interface Command Response get cyan cyan=[current cyan color setting] get magenta magenta=[current magenta color setting] get yellow yellow=[current yellow color setting] get videofreeze videofreeze=[current video freeze setting] get cc cc=[current closed captioning language setting] These commands control the appearance of your source.

  • Page 88: Additional Vga Source Controls

    A P P E N D I X Remotely managing your system through an RS-232 serial interface Additional VGA source controls Your VGA source supports all the general source controls described in General source controls on page 76, as well as the commands listed in this section. These settings are unavailable when the projector is in Standby mode or when the VGA sources are disconnected.

  • Page 89: Audio Controls

    A P P E N D I X Remotely managing your system through an RS-232 serial interface These commands inform you of the current Composite video source settings. Command Response get saturation saturation=[current saturation setting] get tint tint=[current tint setting] get sharpness sharpness=[current sharpness setting] These commands control the appearance of your Composite video source.
  • Page 90 A P P E N D I X Remotely managing your system through an RS-232 serial interface These commands inform you of the current network settings. Command Response get netstatus netstatus=connected netstatus=disconnected netstatus=disabled get dhcp dhcp=[current DHCP status] get ipaddr ipaddr=[current IP address] get subnetmask subnetmask=[current subnet mask number]...

  • Page 91: System Controls

    A P P E N D I X Remotely managing your system through an RS-232 serial interface System controls These commands enable you to switch system settings and access system information. These commands inform you of the current system settings. These commands are unavailable when the projector is in Standby mode.
  • Page 92 =0 to =99 projectorid=[value] set hposition [value] =0 to =100 hposition=[value] set vposition [value] =-5 to =5 vposition=[value] set aspectratio [target] =fill aspectratio=[target] =match =16:9 set projectionmode [target] =front projectionmode=[target] =ceiling =rear =rear ceiling set startupscreen [target] =smart startupscreen=[target] =usercapture =preview...
  • Page 93 A P P E N D I X Remotely managing your system through an RS-232 serial interface Command Command target range Response set language [target] =Chinese (Simplified) language=[target] =Chinese (Traditional) =Czech =Danish =Dutch =English =Finnish =French =German =Greek =Italian =Japanese =Korean =Norwegian =Polish...
  • Page 94 A P P E N D I X Remotely managing your system through an RS-232 serial interface These commands control the current system settings. These commands are available when the projector is in Standby mode and when it is on. Command Command target range Response...

  • Page 95: Appendix C: Disabling User Usb Access

    Appendix C Disabling user USB access In some situations, you might want to disable the ECP’s front USB receptacle. Disabling the USB receptacle prevents users from using or saving documents to USB drives using the ECP’s front USB receptacle. The other USB receptacles won’t be deactivated since they’re required for your interactive whiteboard and computer connections to function.
  • Page 96 A P P E N D I X Disabling user USB access 4. Remove all cables connected to the ECP. 5. Locate the jumper cover between the “PC” and “SE240” labels on the side of the ECP that faces the wall. 6.
  • Page 97 A P P E N D I X Disabling user USB access 4. Connect all cables to the ECP. See the Using the Extended Control Panel (ECP) on page 24 for more information. 5. Secure the ECP to your interactive whiteboard with the two screws you removed previously. 6.

  • Page 99: Appendix D: Remote Control Code Definitions

    Appendix D Remote control code definitions IR signal format: NEC1 Repeat Vendor code Key code format Byte 1 Byte 2 Byte 3 Byte 4 Input Power ( ) Menu Up ( ) Left ( ) Enter ( ) Right ( ) Down ( ) Hide Volume up ( )

  • Page 101: Appendix E: Hardware Environmental Compliance

    Batteries are regulated in many countries. Check with your reseller to find out how to recycle used batteries. There are special regulations that must be met when shipping a product that has a lithium ion battery packaged with the product or shipping a lithium ion battery. When returning a SMART Technologies...

  • Page 102: Packaging

    1.403.228.5940 (all other countries) Packaging Many countries have regulations restricting the use of certain heavy metals in product packaging. The packaging used by SMART Technologies to ship products complies with applicable packaging laws. China’s Electronic Information Products regulations China regulates products that are classified as EIP (Electronic Information Products).

  • Page 103: Index
