Lens Holder Assemblies

Fixed Field Angle Lens
18
19
20
Paint dot should
be situated on
this side of lens
and centered
above the bottom
clip.
Reference
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Lens Holder Assemblies
Zoom Front Lens
1, 2, 3
4
15
6, 7, 8
17
Zoom Rear Lens
21
13
Part
Number
7062A3005
7062A3017
7062A3018
7062A3019
7062A3020
7062A4001
7062A4002
7062A4003
7062A4008
7062A4009
7062A3027
7062A3026
7062A3029
HW1119
HW196
HW1137
7060A4010
HW8209
HW4117
HW779
HW8201
7062A2001
7062A2003
7062A2004
7062A2005
7062A2006
9
17
10
16
Description
Lens holder, 26°
Lens holder, 36°
Lens holder, 50°
Lens holder, Zoom, forward (Source Four jr. Zoom only)
Lens holder, Zoom, back (Source Four jr. Zoom only)
Lens, 26°,"black dot"
Lens, 36°, "white dot"
Lens, 50°, "yellow dot"
Lens, Zoom, forward (Source Four jr. Zoom only)
Lens, Zoom, back, black (Source Four jr. Zoom only)
Lens cover, Zoom, front, 25º-50º (Source Four jr. Zoom only)
Lens cover, Zoom, rear, 25º-50º (Source Four jr. Zoom only)
Plate, secondary aperture (Source Four jr. Zoom only)
Screw 4-40 x 1/4 SPHMS, black Oxide
Nut 4-40 Keps
Spacer (Source Four jr. Zoom only)
Bushing gate (fixed, front, or rear lens)
Tinnerman clip
Nylon washer, flat, #10
Spring, compression
Lens knob, 10-32 x.50 LG male stud, black (Fixed or Zoom)
Lens holder assembly, 26° (black dot)
Lens holder assembly, 36° (white dot)
Lens holder assembly, 50° (yellow dot)
Lens holder assembly, Zoom, forward
Lens holder assembly, Zoom, rear
14
11
12
15
Orientation
marks to
5
this side

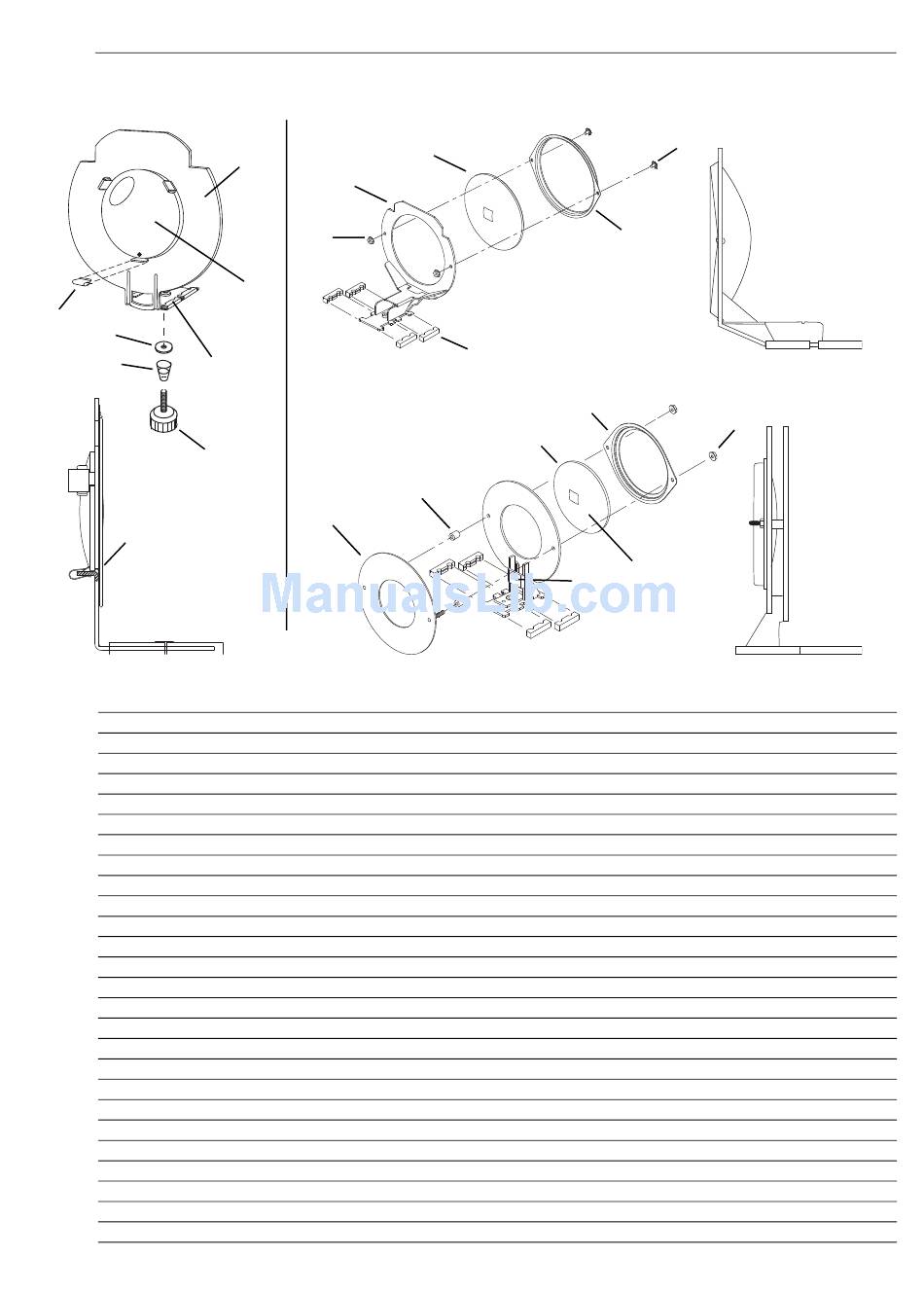

Figure 8
Quantity
Required
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
2
4
3
1 or 2
1 or 2
1 or 2
1
1
1
1
1
7
