Shutter Assembly

3
2

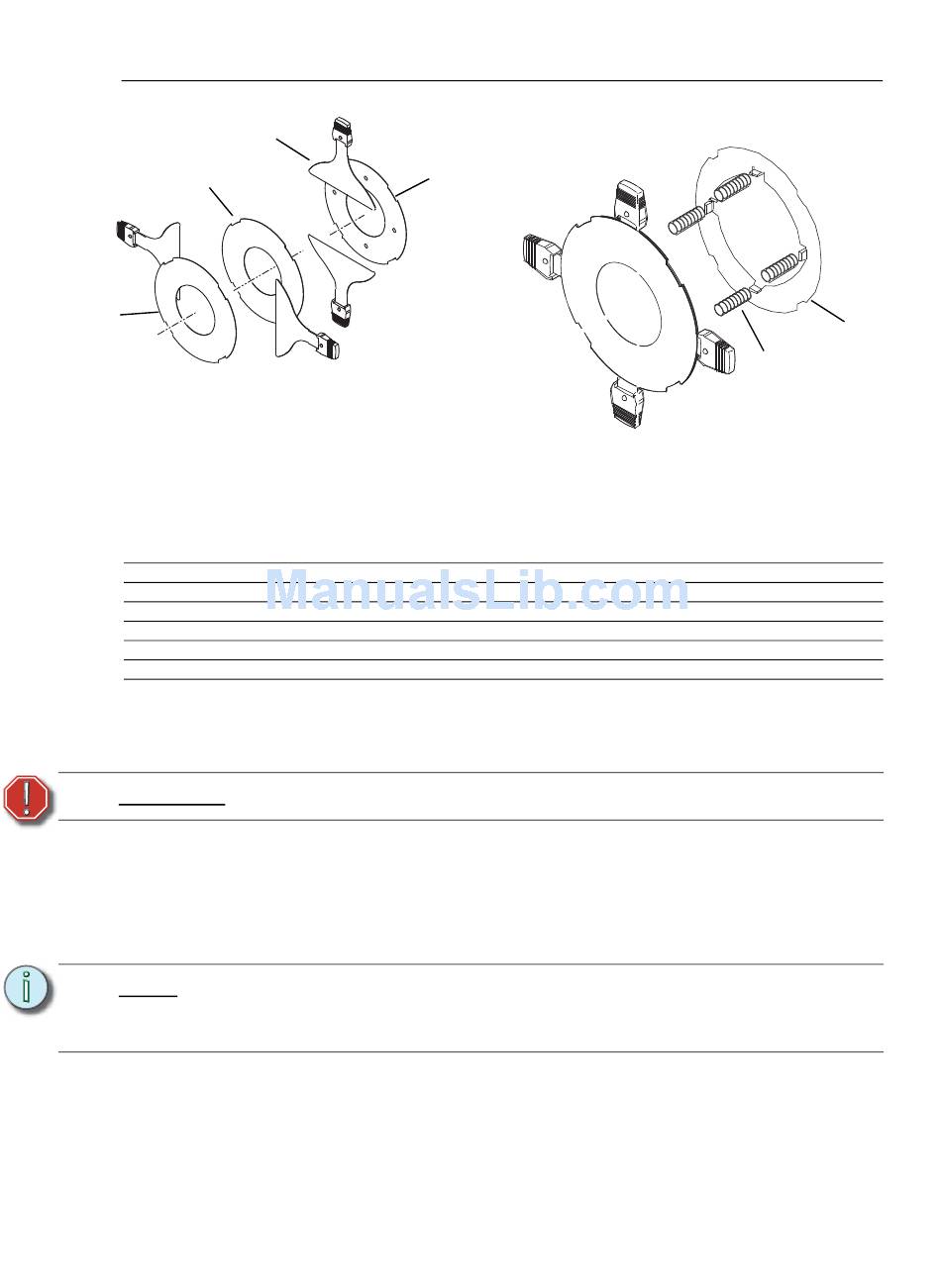

Shutter Assembly: The bottom divider plate
(4) has four dimples punched into the surface;
the divider plate (2) has none. The middle
divider plate (3) has a slightly smaller diameter
hole than the other two.
Reference
Number
1
2
3
4
5
6
A s s e m b l i n g S h u t t e r s
Step 1:
W A R N I N G :
Step 2:
Step 3:
Step 4:
N o t e :
Step 5:
Step 6:
Step 7:
Shutter Assembly
1
Part Description
Number
7062A2002 Shutter blade assembly
7062A3016 Plate, divider
7062A3010 Plate, Gate, middle
7062A3030 Plate, divider with dimples
7062A3031 Plate, spring support
HW754 Spring, shutter
Place the divider plate (2) on a flat surface.
Divider plate edges may be sharp. Handle with caution!
Place two shutter blades (1) on top of plate (2). Handles should extend out past
the edge of the divider plate.
Place the middle divider plate (3) on top of the two shutter blades. The notches
in the divider plates must line up.
Place the two remaining shutter blades (1) on top of the middle divider plate.
The third and fourth shutter blade handles should be perpendicular to the previous
shutter handles.
Ensure that the rounded side of all shutter handles face the same direction.
Place the top divider plate (4) on top of the third and fourth shutter blades. The
raised dimples should point away from the shutters.
Install the four springs (6) onto the nips on the spring support plate (5).
Place the dimples of the plate divider (4) onto the open ends of the springs.
Carefully place assembly in fixture casting
page 2., step 3).
4
(See "Assembling basic fixture" on
5
6
Figure 9
Quantity
Required
4
1
1
1
1
4
