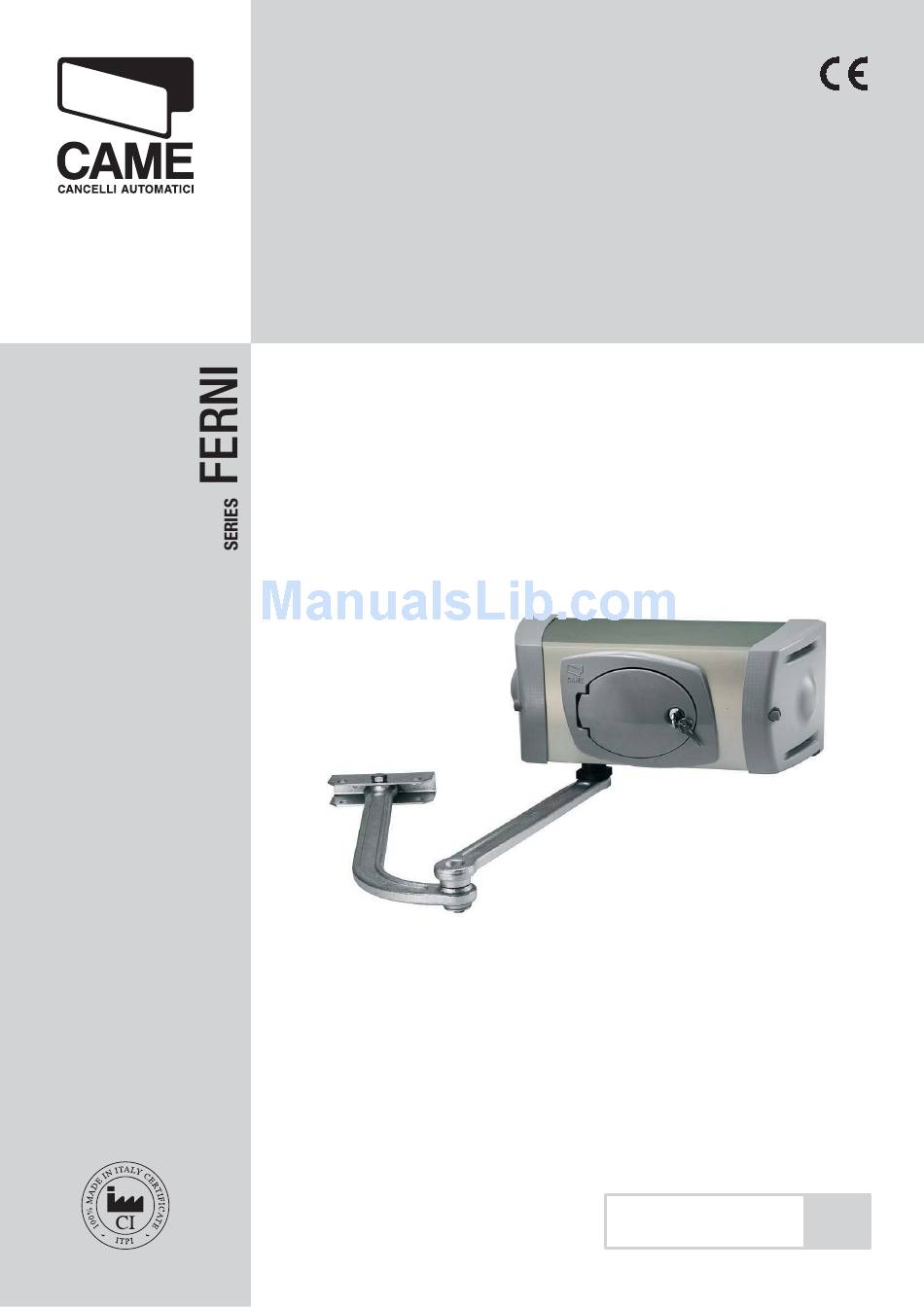

- Page 1 AUTOMATION FOR SWING GATES INSTALLATION MANUAL FE40230 English...
-
Page 2: Table Of Contents
Index Legend of symbols p. 4 Intended use and limits p. 4 Intended use p. 4 Limits to use p. 4 Description p. 4 Technical features p. 4 Description of the parts p. 5 Dimensions p. 5 Installation p. 6 Preliminary checks p. - Page 3 Warning Sings (e.g. gate plate). (i.e. that for which it was expressly built for). Any other use is Special instructions and to be considered dangerous. Came Cancelli Automatici S.p.A. advice for users is not liable for any damage resulting from improper, wrongful •...
-
Page 4: Legend Of Symbols
Intended use and limits Intended use The 001FE40230 operator is engineered and manufactured by CAME Cancelli Automatici S.p.A., in compliance with current safety regulations, to automate swing gates for residential or apartment-block use. The installation and use of this product for purposes other than those described in this manual are prohibited. -
Page 5: Description Of The Parts
Description of the parts 1) Pillar bracket 2) Endstop 3) Gearmotor 4) Side supports 5) Cover 6) Side cover 7) Transmission arm 8) Driven arm 9) Gate bracket 10) Release handle 11) Straight arm with guide (see tech- nical sheet for mounting procedure) Dimensions... -
Page 6: Installation
Installation Installation must be carried out by expert qualifi ed personnel and in full compliance with current regulations. Preliminary checks Before installing, do the following: • Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off ) power supply;... -
Page 7: Standard Installation
Standard installation 1) 001FE40230 operator 2) Control panel 3) Junction box 4) Antenna 5) Flashing light 6) Key-switch selector 7) Photocells 8) Junction pit 9) Electric lock 10) Mechanical stops 11) Photocell post Setting up the corrugated tubes and anchoring brackets. The following fi... - Page 8 Note: fi gures refer to the installation of the left gearmotor. The installation of the right gearmotor is symmetrical. Respect dimensions indicated in the drawing and determine the most appropriate fi xing point for the gate bracket. Gate bracket Pillar bracket A (mm) B (mm) 0 ÷...
- Page 9 Drill on the marked points. Insert the dowel or use other inserts suitable for the bracket resistance. Note: fi gures are only examples, it is up to the installer the choice of the most suitable solution depending on the type and dimensions of the gate-leaf.
-
Page 10: Installing Of The Gearmotor And The Transmission Arms
Installing of the gearmotor and the transmission arms Insert the side supports in the insert places on the pillar bracket. One of the two lateral inserts is for the power cable to go through, the other is for the gearmotor arm to go through. N.B.: before inserting the support for the cable passage on the bracket, fi... - Page 11 UNI 5933 M6 x 20 screw Washer Inserire il braccio di trasmissione nell’albero motore e fi ssarlo con rondella e vite. Assemble the driven arm with transmission arm. Washer UNI 5739 M8 x 16 screw UNI 5737 M12 x 50 screw Release the gearmotor and secure the driven arm to the gate- attachment bracket using the nut and bolt.
-
Page 12: Securing And Adjusting The Endstop Unit For The Left Gearmotor
Warning: in case there are no mechanical stops, securing and adjusting operations for the endstop unit are mandatory. Securing and adjusting the endstop unit for the LEFT gearmotor Secure the endstop unit to the gearmotor and fi t the cams on the guide. UNI 6957 Ø... -
Page 13: Securing And Adjusting The Endstop Unit For The Right Gearmotor
Securing and adjusting the endstop unit for the RIGHT gearmotor Secure the endpoint assembly to the gearmotor, invert the cables on the microswitches and insert the cams/onto into the guides UNI 6957 Ø 2.9 X 16 screw Endstop unit Cams Guide Fully close the gate-leaf of the left gearmotor and rotate the cam clockwise until the closing microswitch inserts. -
Page 14: Securing The Side Covers And The Release Handles
Securing the side covers and the release handles Once connections and adjustments are completed, drill through the marked point: - up for the left gearmotor; - down for the right gearmotor. Release support for LEFT gearmotor Release support for RIGHT gearmotor Ø... -
Page 15: Manual Release And Locking Of The Gearmotor
Fit the handle on the release shaft and secure it with screw and washer. LEFT RIGHT UNI 6592 4.3 x 9 UNI 6954 3.9 x 9.5 washer screw Manual release and locking of the gearmotor Open the door with the customized key. To release the gearmotor, fully clockwise rotate the release lever. -
Page 16: Connecting To The Control Panel
Connecting to the control panel When making electrical connections, use the junction pit and boxes. For further instructions concerning functions and adjustments, consult the control panel's technical manual. 1) Control panel 2) Left gearmotor 3) Right gearmotor 4) Junction box 5) Junction pit 002ZM3E Control panel terminal board... -
Page 17: Safety Instructions
Safety instructions Important safety instructions This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The manu- facturer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses. Avoid working close to the hinges or other moving mechanical parts. -
Page 18: Maintenance
Maintenance Periodic maintenance Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocells; check that the safety devices work properly; remove any obstructions to the proper work of the automation. We suggest checking the state of lubrication and tightness of the anchoring screws on the automation. -
Page 19: Extra-Ordinary Maintenance
Periodic maintenance log To be done by the end-user (every 6 months) Date Notes Signature Extra-ordinary maintenance The following table serves to note down any extraordinary maintenance, repairs or improvements performed by specia- lised firms. N.B.: Any extraordinary maintenance must be performed by specialised technicians. Extra-ordinary maintenance log Installer’s stamp Operator name... -
Page 20: Phasing Out And Disposal
UNI EN ISO 14001 standard to ensure environmental protection. We ask you to keep protecting the environment, as CAME deems it to be one of the fundamental points of its market operations strategies, by simply following these brief guidelines when disposing: DISPOSAL OF PACKAGING The packaging components (cardboard, plastic, etc.) are all classifiable as solid urban waste products and may be disposed of... -
Page 21: Ce Declaration
CE declaration... - Page 22 (+34) 91 52 85 009 127273, Moscow Moscow (+34) 91 46 85 442 (+7) 495 739 00 69 (+7) 495 739 00 69 (ext. 226) CAME United Kingdom Ltd. CAME United Kingdom Ltd. GREAT BRITAIN PORTUGAL CAME Portugal CAME Portugal...
