9.0 appendIx 1 – UsIng the optIonal accessorIes

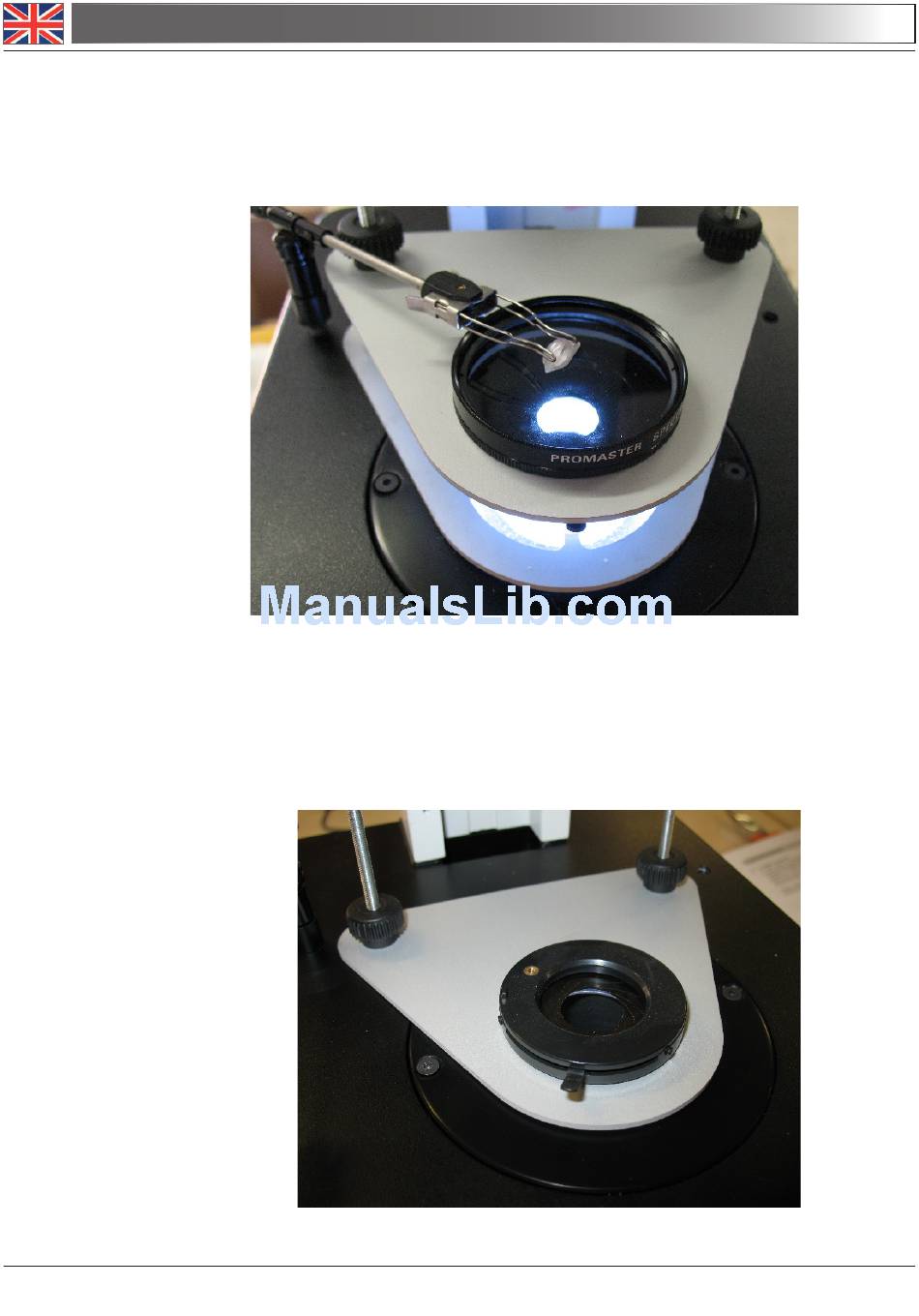

Switch on the LED ring illumination.
Holding your sample with the side clip, you can rotate both the polarizer and analyzer to perform
polarization analysis. You can also open/close the diaphragm to adjust darkfield illumination:
set 4: Immersion analysis with translating holder
• you need: st-203 st-204 and st-207
Mount the iris diaphragm ST-07 on the stage, as described in SET 1:
