9.0 appendIx 1 – UsIng the optIonal accessorIes
Holding your sample with the side clip, you can rotate both the polarizer and analyzer to perform
polarization analysis.
set 3: polarization and darkfield analysis
• you need: st-201 and st-202

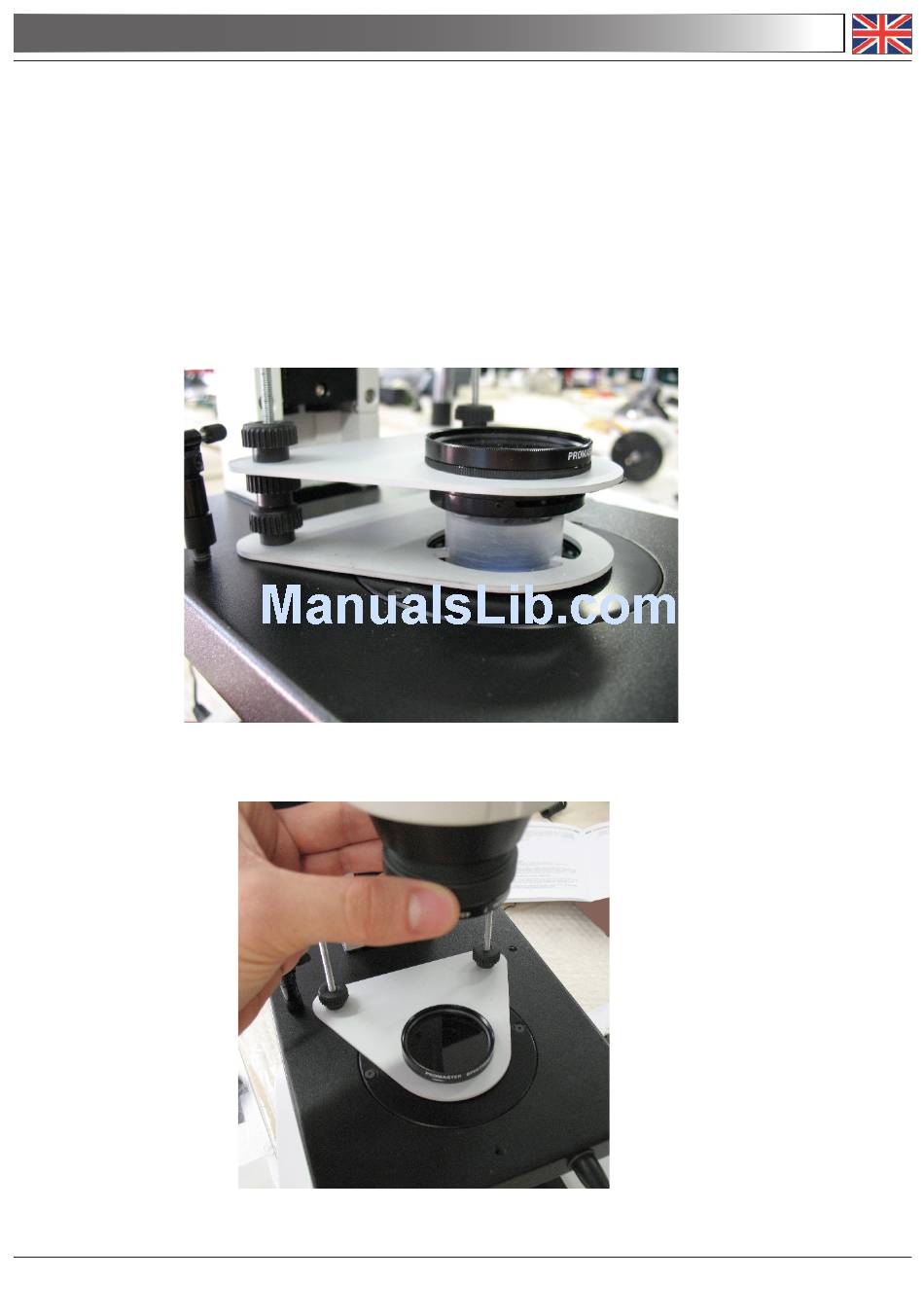

Mount the ST-01 darkfield diaphragm on the stage, as described in SET 1.
Then screw another spacer on both rods. Place the polarizer of ST-0 on the stack, and fix it with
two spacers, as in the following picture:
Screw the analyzer on the bottom of the head, as shown:
