SBC81872 Socket479 All-in-One CPU Card Series User's Manual

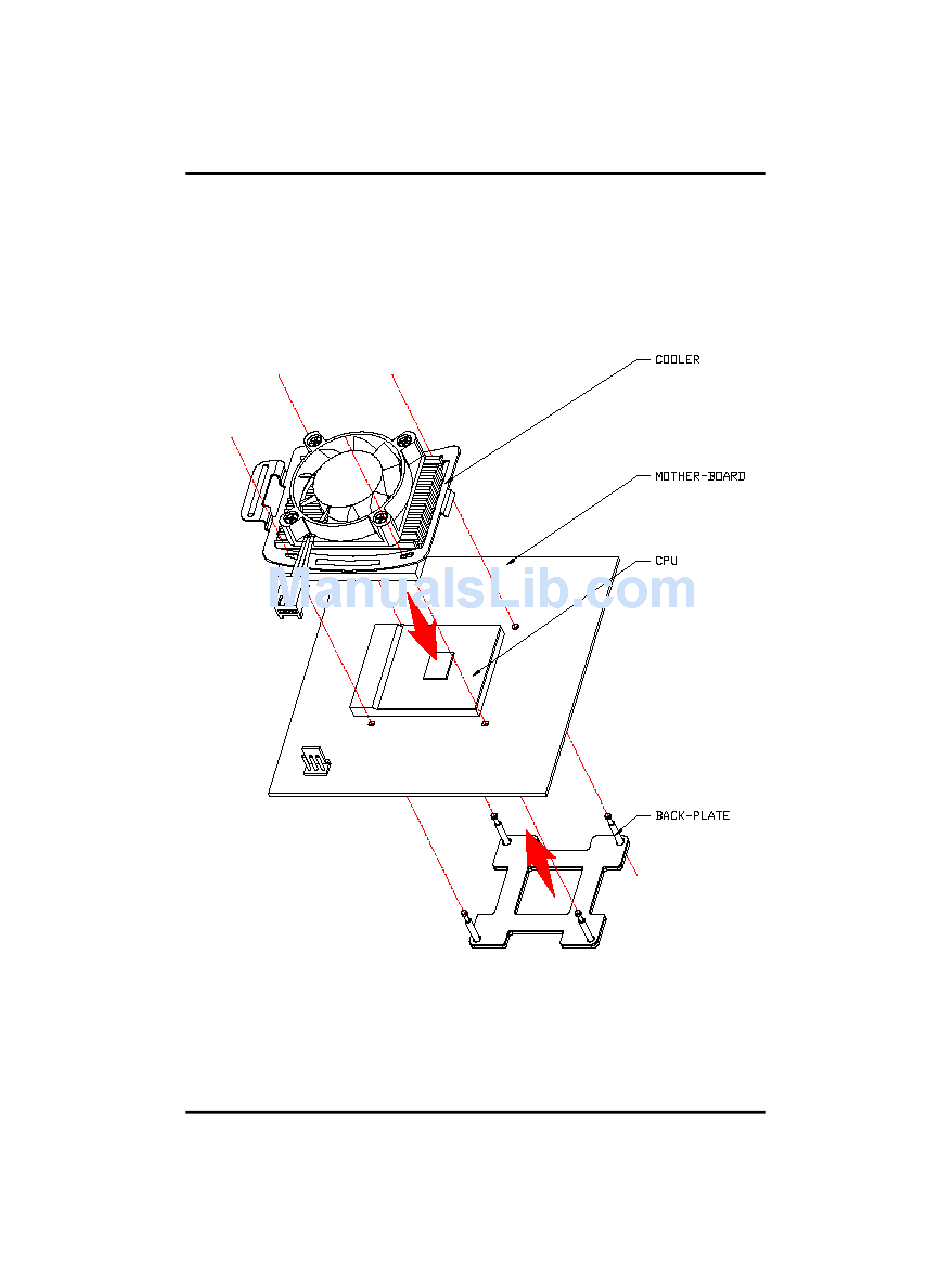

Step 3. Install the Back-Plate at the backside of the mother
board. When the mother board and CPU has been installed in
the system, lay the cooler on the CPU.
13
Installation
