SBC81872 Socket479 All-in-One CPU Card Series User's Manual

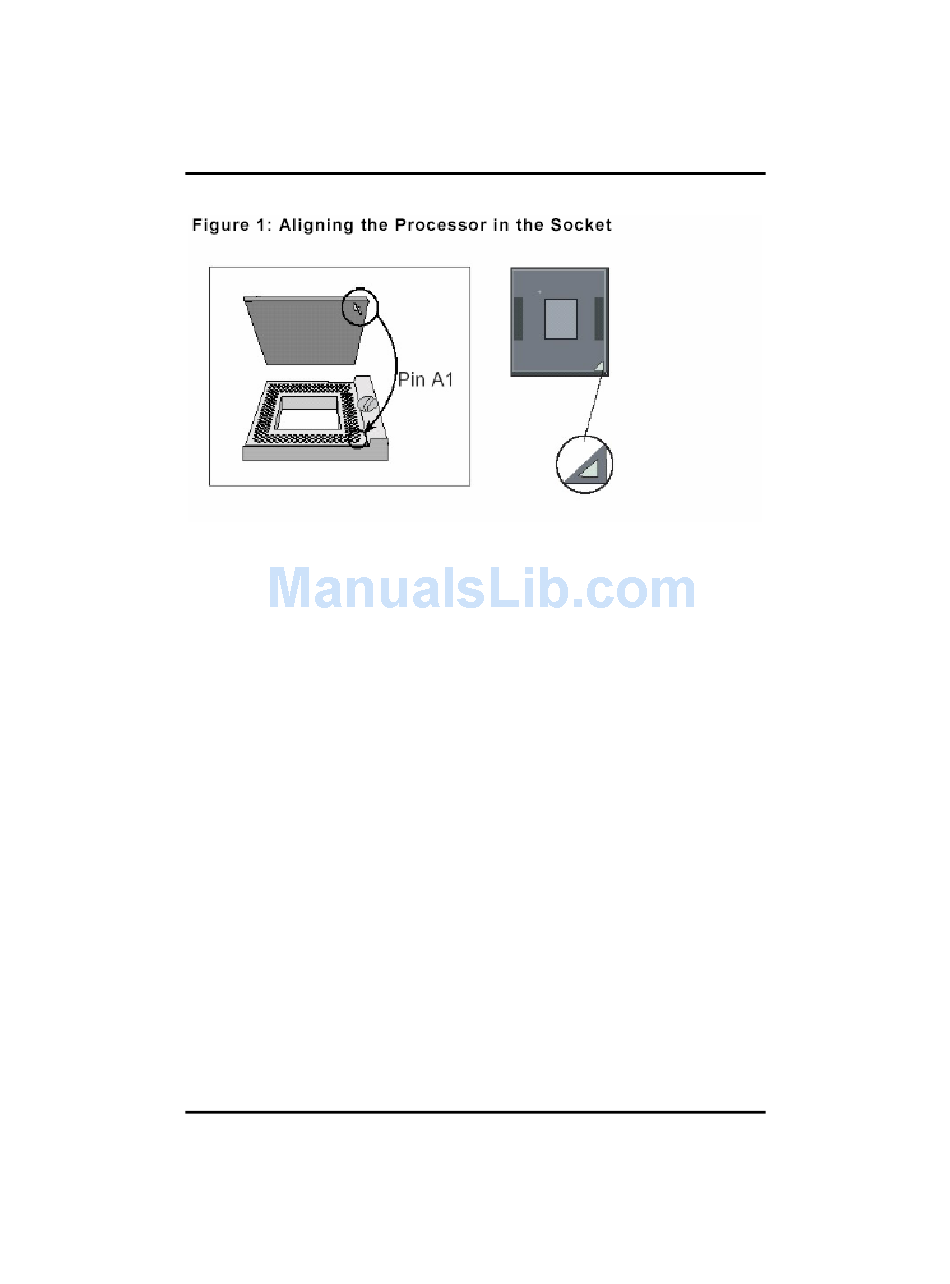

2.. While gently holding the processor down with your finger,
secure the processor in the socket by closing the socket
actuator with a screwdriver.
10
Installation
