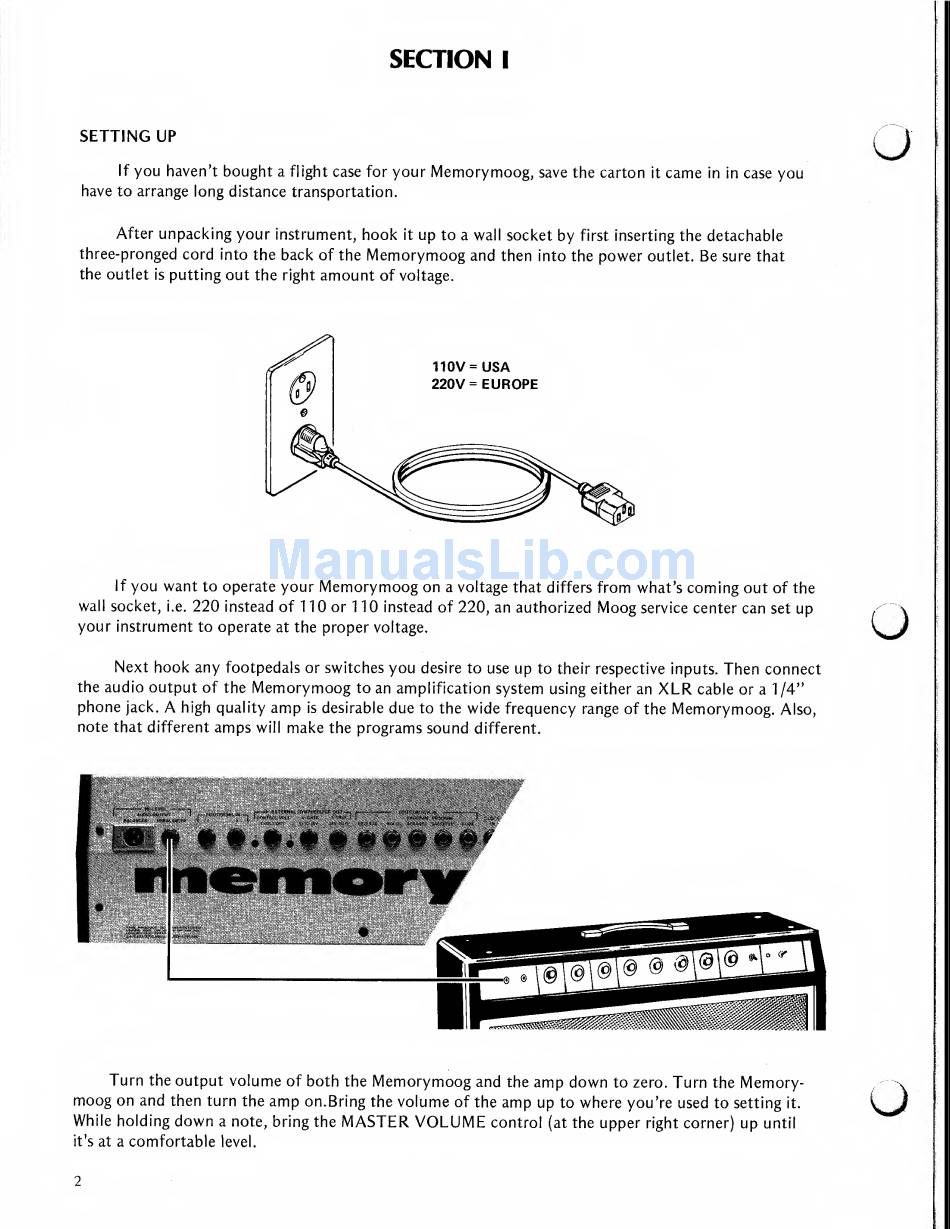

SECTION
I
SETTING UP
If
you
haven't
bought
a flight case for
your Memorymoog,
save the carton
it
came
in in
case
you
have to arrange long distance transportation.
o
After unpacking your
instrunnent,
hook
it
up
to a wall socket by
first
inserting the
detachable
three-pronged cord
into
the back of
the
Memorymoog
and
then
into the
power
outlet.
Be
sure that
the outlet
is
putting out
the
right
amount
of
voltage.
110V
-USA
220V =
EUROPE
If
you want
to
operate your
Memorymoog
on
a
voltage that
differs
from
what*s
coming
out of
the
wall socket,
i.e.
220
instead of
1 1
or
1 1
instead
of 220, an authorized
Moog
service
center can
set
up
your instrument
to operate
at the
proper
voltage.
Next hook any
footpedals or switches
you
desire to use
up
to their respective inputs.
Then
connect
the audio output of
the
Memorymoog
to an amplification system
using
either
an
XLR
cable or a
1
/4'*
phone
jack.
A
high quality
amp
is
desirable
due
to the
wide frequency
range of the
Memorymoog.
Also,
note that different
amps
will
make
the
programs sound
different.
o
Turn
the output
volume
of both
the
Memorymoog
and
the
amp down
to zero.
Turn
the
Memory-
moog
on and
then
turn the
amp
on. Bring the
volume
of the
amp
up
to
where youVe
used to setting
it.
While holding
down
a note, bring the
MASTER VOLUME
control
(at
the
upper
right
corner)
up
until
it's
at a
comfortable
level.
