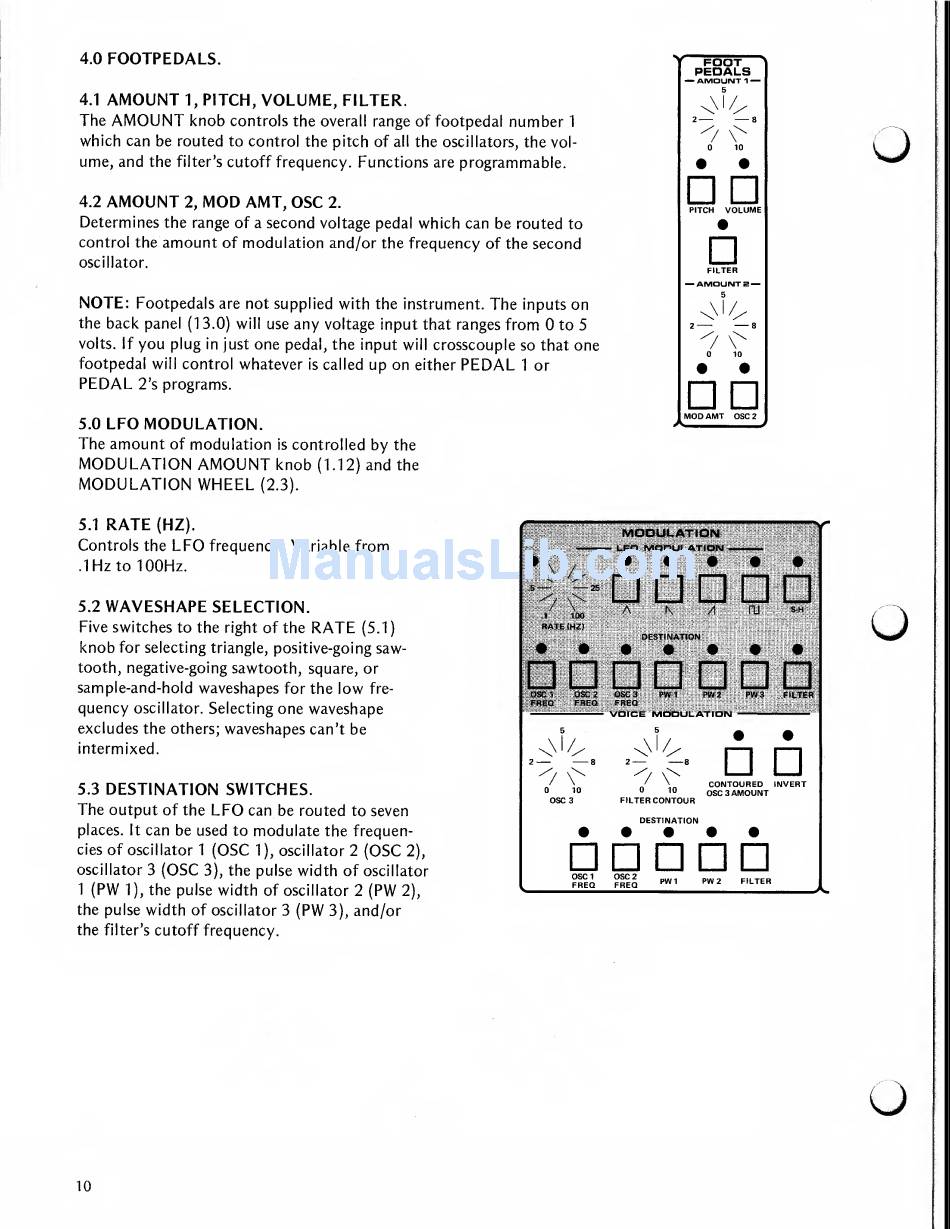

FOOTPEDALS.
4.1
AMOUNT
1,
PITCH,
VOLUME,
FILTER.
The
AMOUNT
knob
controls the
overall
range of footpedal
number
1
which can be routed
to control the pitch of
all
the
oscillators,
the
vol-
ume, and
the
filter's
cutoff frequency.
Functions
are
programmable.
4.2
AMOUNT
2,
MOD
AMT, OSC
2.
Determines
the range of
a
second
voltage pedal
which
can be routed
to
control the
amount
of modulation and/or
the
frequency
of the second
oscillator.
NOTE:
Footpedals
are
not supplied with
the instrument.
The
inputs
on
the
back
panel (13.0)
will
use
any
voltage input that ranges
from
to 5
volts.
If
you
plug
in just
one
pedal,
the input
will
crosscouple so
that
one
footpedal
will
control
whatever
is
called
up on
either
PEDAL
1
or
PEDAL
2*s
programs.
5.0
LFO MODULATION.
The amount
of
modulation
is
controlled by
the
MODULATION
AMOUNT
knob
(1.12)
and the
MODULATION WHEEL
(2.3).
FOOT
PEDALS
—
AMOUNT
1
-^
2 8
^/\^
10
• •
PITCH
VOLUME
D
F ILTER
—
AMOUNTS
—
2 8
^/\^
10
•
•
DD
MOD AMT
OSC
2
Q
5.1
RATE
(HZ).
Controls
the
LFO
frequency. Variable from
.1Hz to
100Hz.
5.2
WAVESHAPE
SELECTION.
Five
switches
to the
right
of the
RATE
(5.1
knob
for selecting
triangle, positive-going
saw-
tooth, negative-going sawtooth,
square, or
sample-and-hold waveshapes
for the
low
fre-
quency
oscillator. Selecting
one waveshape
excludes the
others;
waveshapes
can't
be
intermixed.
5.3
DESTINATION SWITCHES.
The
output of
the
LFO
can be routed
to seven
places.
It
can be used to modulate
the frequen-
cies
of
oscillator
1
(OSC
1 ),
oscillator 2
(OSC
2),
oscillator 3
(OSC
3),
the pulse
width of
oscillator
1
(PW
1
),
the pulse width of
oscillator
2
(PW
2),
the pulse
width of
oscillator
3
(PW
3),
and/or
the
filter's
cutoff frequency.
MODULATION
V\i//
.5
2B
.1
100
•
• • • •
A
K
nnn
A
ru
s-H
RATE
(HZ)
• •
DESTINATION
•
•
• • •
n
F ILTER
nnnn
DD
0SC1 OSC
2
FREQ FREQ
OSC
3
PW
1
FREQ
PW2 PW3
2
8
10
OSC
3
vaicE
MDDULATioiSj
• •
\
/
i%'
n a
n
\«
CONTOURED
INVERT
^ 10
OSC
3
AMOUNT
FILTER CONTOUR
•
DESTINATION
• • • •
DDDDn
?^i
fill
P^i
^^^
F'^-'TE"
o
o
10
