External Synthesizer Out; Footswitch In; Cassette Interface; Power On/Off - Moog MEMORYMOOG 345 Owner's And Service Manual

14.0
EXTERNAL
SYNTHESIZER
OUT.
14.1
CONTROL VOLT
1
VOLT/OCT.
A
1
volt-per-octave
(±
1
0%)
output
for control-
ling
an external synthesizer or synthesizer
accessory.
Range and
scale
trimmers
for
tuning
the
output
to
an
external synthesizer are acces-
sible
through
the rear panel.
14.2
V-GATEO-
15V.
A
voltage gate output with
a
level
of
from
to
15
volts for interfacing with instruments
which
accept voltage
gates.
14.3
S-TRIG 15V TOO.
A
switch
trigger
output
with
a
range of 15
volts
to
volts.
For
interfacing to instruments with
switch
trigger inputs.
15.0FOOTSWITCH
IN.
15.2
HOLD.
A
switch input for turning the
HOLD
function
(1.8)
on and
off.
15.3
PROGRAM ADVANCE.
A
switch input
for
advancing through
the
PRO-
GRAM
SEQUENCES
(3.7).
15.4
PROGRAM
BACKSTEP.
A
switch for stepping through
the
PROGRAM
SEQUENCES
(3.7)
in
reverse order.
15.5
GLIDE.
Turns
the front panel
GLIDE
switch
on
or
off.
15.6
CLOCK
IN.
Replaces the
internal clock
from
the
LFO
(5.0)
with an
external clock.
15.1
RELEASE.
Accepts
a
switch input
for turning the
release
portion of the
Contour
Generators on and
off
(see 10.4).
With the
RELEASE
switch
on
the
front panel on, depressing the
RELEASE
FOOT-
SWITCH
will
turn the
RELEASE
switch
on
the
panel
off.
At
that point, the
RELEASE
FOOT-
SWITCH
will
act as a
SUSTAIN PEDAL
would
on
a piano: pressed
down,
the
RELEASE
func-
tion of the
CONTOUR GENERATORS
(8.5
and
9.0) will
be on;
let
up, the
RELEASE
function
of the
CONTOUR GENERATORS
will
be
off.
16.0
CASSETTE INTERFACE.
Connections
are
made
from
the three jacks to
a
cassette
recorder for
transfer of
memory
contents
to
and from
tape.
17.0
POWER
ON/OFF.
Turns
the
Memorymoog
on and
off.
18.0POWERCORD.
A
detachable cord
is
supplied with
your
instru-
ment. Be
careful to grasp
it
by
the plug
when
taking
it
out of an
electrical
outlet.
Q
«M»ttt» «N»toM«?tfr
p-.J'»«Tf*'Xil»t-.a
j
i^ut<«^
«»^
i«vt«>9 <««««»
f»»
*s9*vii «K«»<ti¥ (fuw lo fM>e tttwrcf
,
„
.
.
,11
,
"
•
W
• -P. .."
" w
.9.
-m
" " w
If
P
1* i««.-<t>tjrf(..&&»»^?»-w

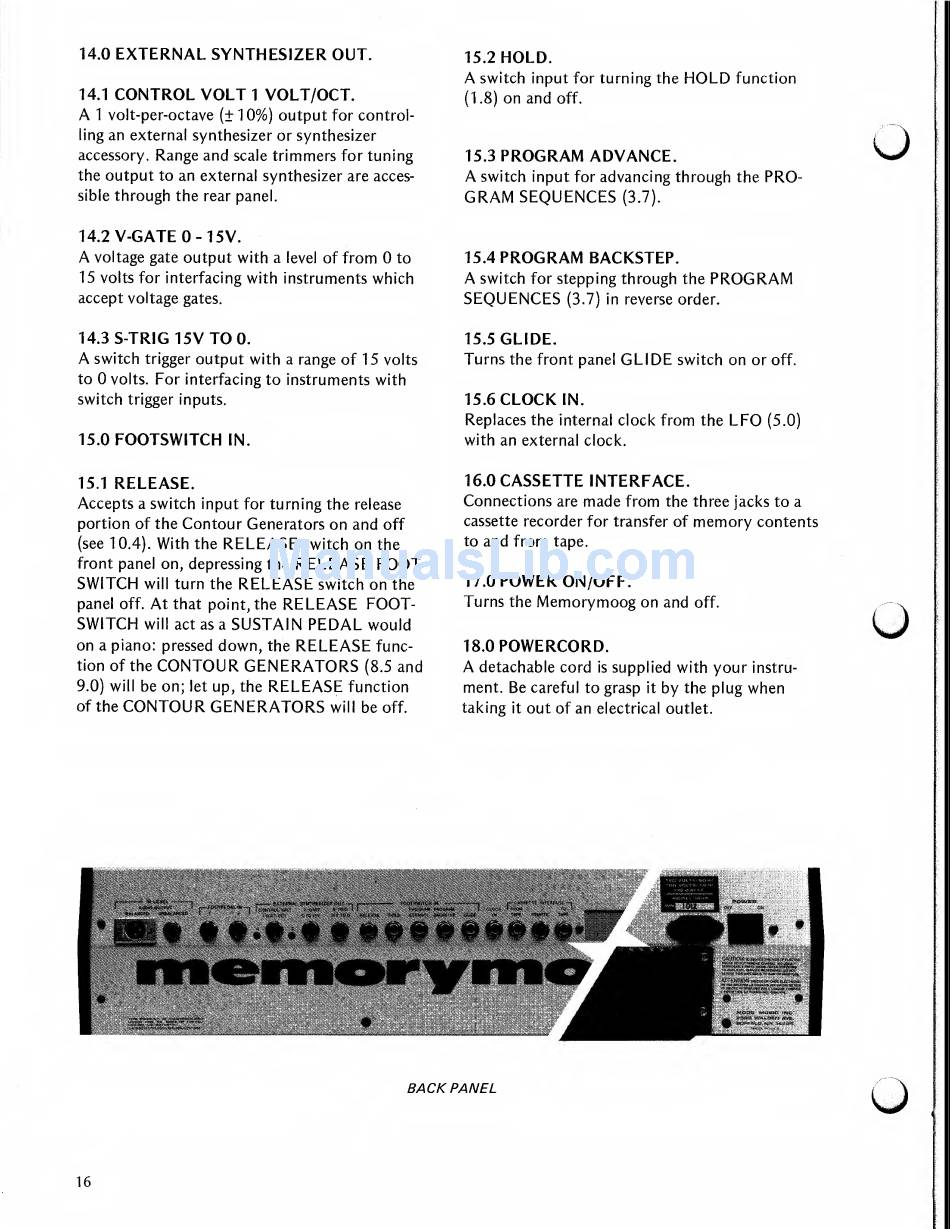

BACK PANEL
16
