11.0

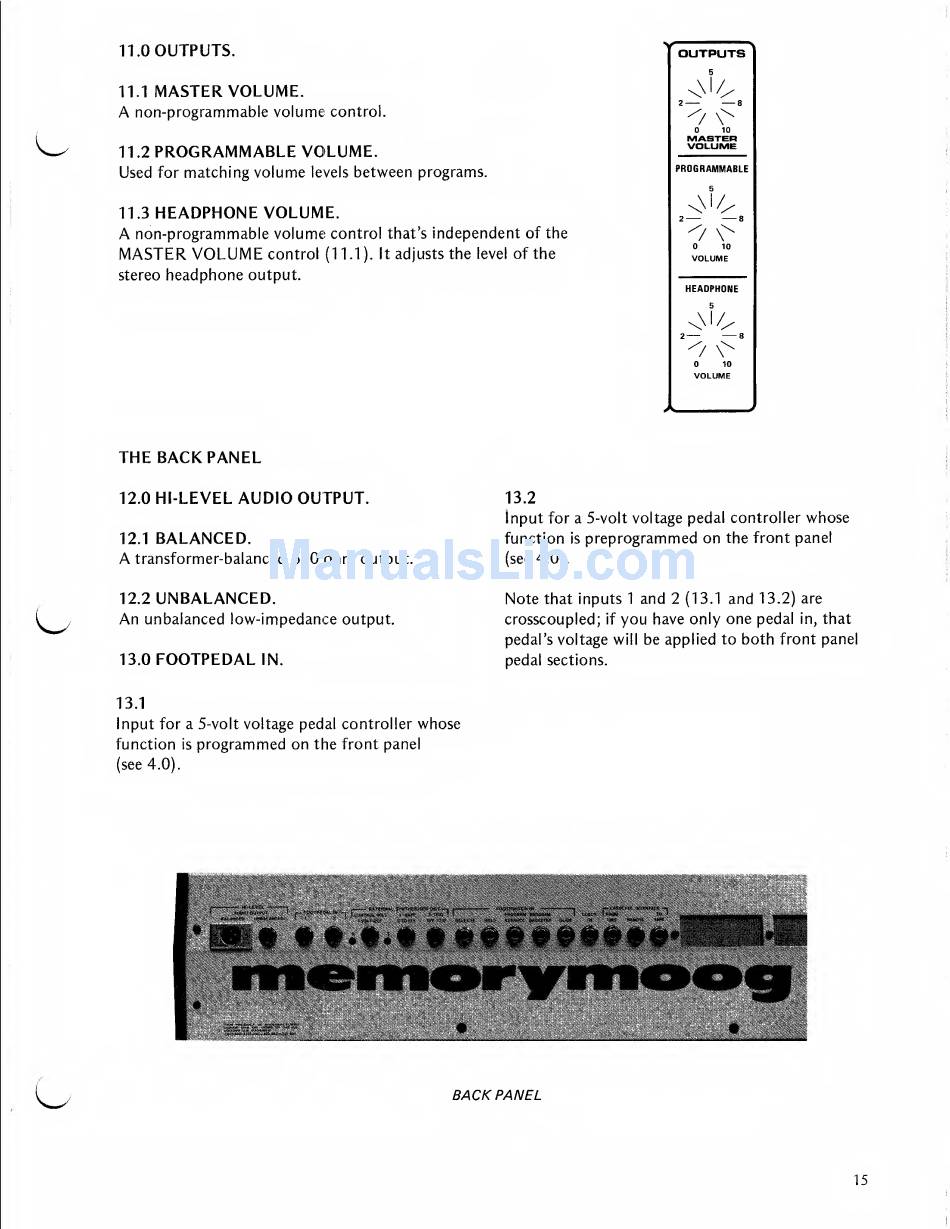

OUTPUTS.
11.1
MASTER VOLUME.
A
non-programmable volume
control.
11.2
PROGRAMMABLE
VOLUME.
Used
for
matching volume
levels betv^^een
programs.
11.3
HEADPHONE VOLUME.
A
non-programmable volume
control that's
independent
of the
MASTER
VOLUME
control
(1 1 .1 ).
It
adjusts the
level
of the
stereo
headphone output.
OUTPUTS
2
8
^/\^
10
MASTER
VOLUME
PROGRAMMABLE
2 8
10
VOLUME
HEADPHONE
2
8
10
VOLUME
o
THE
BACK PANEL
12.0
HI-LEVEL
AUDIO
OUTPUT.
12.1
BALANCED.
A
transformer-balanced
600
ohm
output.
12.2
UNBALANCED.
An
unbalanced low-impedance output
13.0FOOTPEDALIN.
13.2
input for a 5-volt voltage pedal controller
whose
function
is
preprogrammed on
the front panel
(see 4.0).
Note
that inputs
1
and
2
(13.1
and
13.2) are
crosscoupled;
if
you
have only
one
pedal
in,
that
pedal's voltage
will
be applied to
both
front panel
pedal sections.
13.1
Input for a 5-volt voltage pedal controller
whose
function
is
programmed on
the front panel
(see 4.0).
i
».ts»«.
———J
^„,^
8iiif(«h*i. »w»t«!*a«f»
aafwK
'
'
'
t*»»«ct «»ft*
«wwi«_
rm**.M «nt4k
«*t.*s«»lt
uM»H»tKk»
1r
WKK
ik
9V»
m
.'
VHSii
af»«t%m atmtuot
-•
f
.
f f
i t<
i • .tat
ftti:i:t:iN
O
BACK PANEL
15
