SETTING UP

If you haven't bought a flight case for your Memorymoog, save the carton it came in in case you
have to arrange long distance transportation.

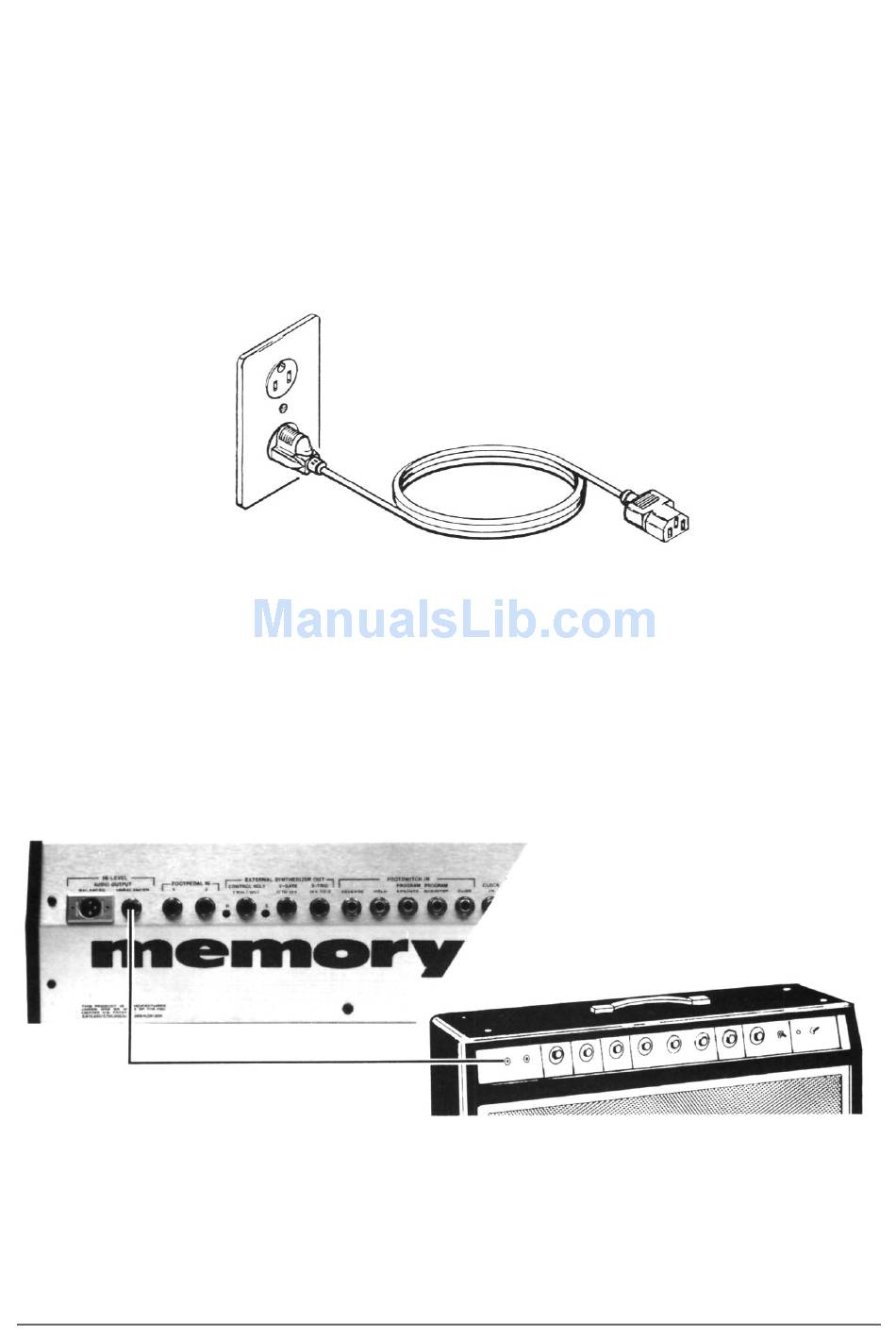

After unpacking your instrument, hook it up to a wall socket by first inserting the detachable
three-pronged cord into the back of the Memorymoog and then into the power outlet. Be sure that
the outlet is putting out the right amount of voltage.
If you want to operate your Memorymoog on a voltage that differs from what's coming out of
the wall socket, i.e. 220 instead of 110 or 110 instead of 220, an authorized Moog service center can
set up your instrument to operate at the proper voltage.
Next hook any footpedals or switches you desire to use up to their respective inputs. Then con-
nect the audio output of the Memorymoog to an amplification system using either an XLR cable or
a 1/4" phone jack. A high quality amp is desirable due to the wide frequency range of the Memory-
moog. Also, note that different amps will make the programs sound different.
Turn the output volume of both the Memorymoog and the amp down to zero. Turn the Memory-
moog on and then turn the amp on. Bring the volume of the amp up to where you're used to setting
it. While holding down a note, bring the MASTER VOLUME control (at the upper right corner) up
until it's at a comfortable level.
2

SECTION I

110V = USA
220V = EUROPE
