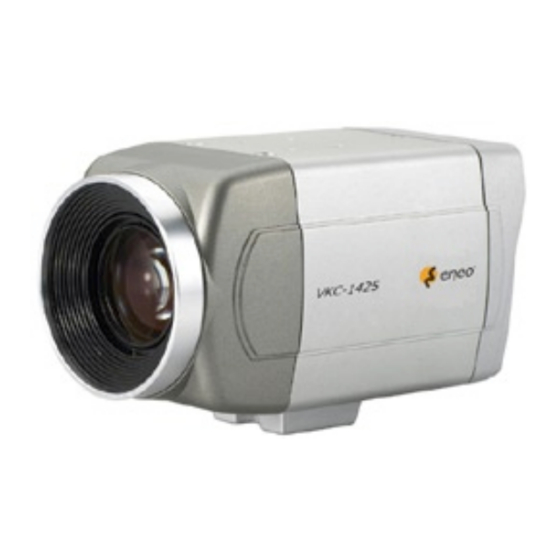

1/4” camera, day & night, 23x zoom

Advertisement

Quick Links

Installation and Operating Instructions
1/4" Camera, Day & Night, 23x Zoom
VKC-1425


Advertisement

Table of Contents
loading

Summary of Contents for Eneo VKC-1425

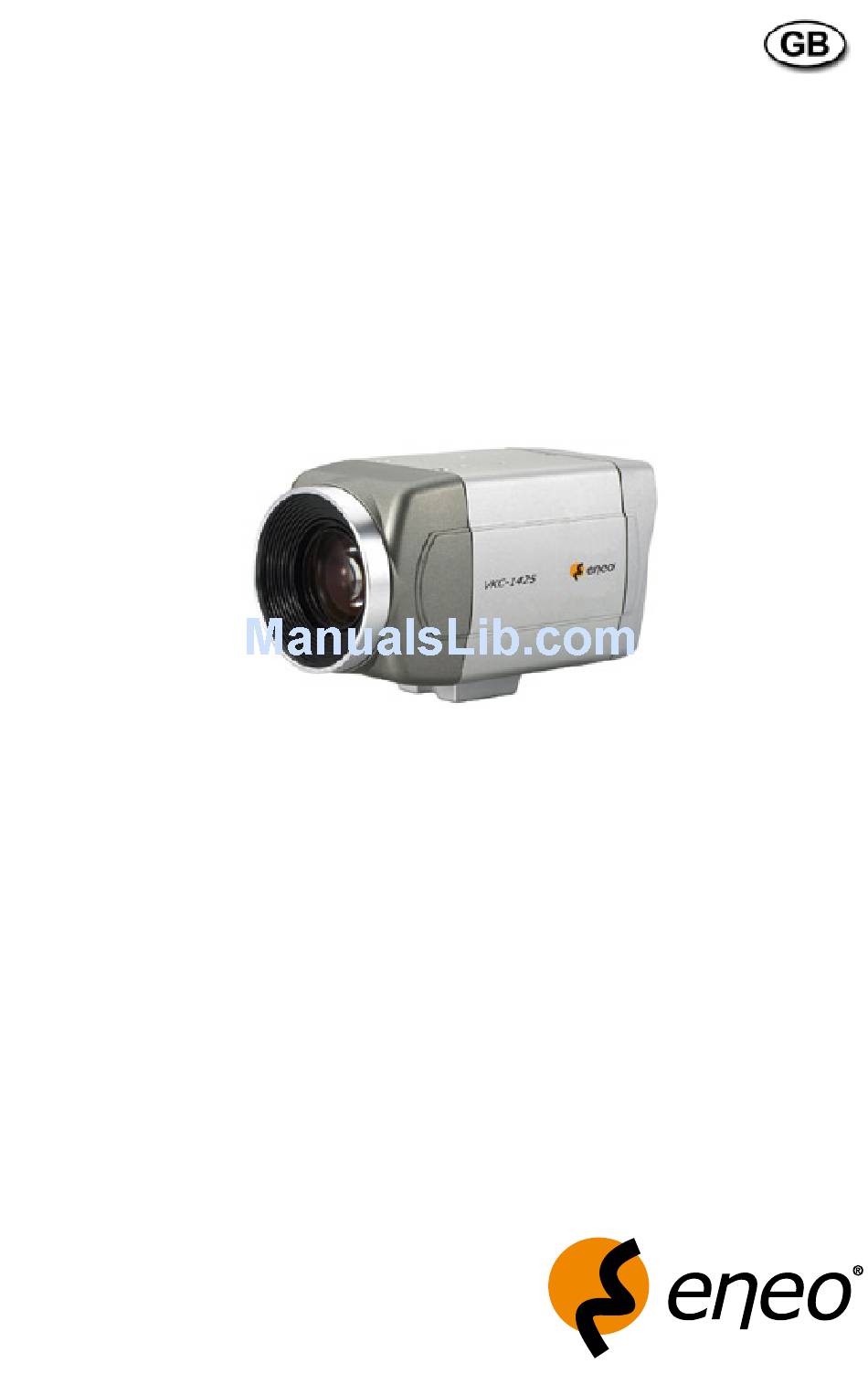

  • Page 1 Installation and Operating Instructions 1/4” Camera, Day & Night, 23x Zoom VKC-1425...
  • Page 2: Table Of Contents

    Contents . Safety Instructions ..............4 . General Description ..............6 3. Rear View and Part Names ............7 4. Installation .................9 4. Connecting a Monitor ............9 4. Connecting to Power ............0 4.3 Camera Control Methods .......... 5. Communication Protocol ............4 5. PELCO-D Byte Format ............4 5. PELCO-P Byte Format ............6 6. On-Screen Display ..............7 6. Explanation of the On-Screen Display ......7 7. Menu and Operation ..............0 7. How to Set Up Functions..........0 7. Main Menu – FOCUS ............ 7.3 Main Menu – EXPOSURE ..........4 7.4 Main Menu – DAY/NIGHT (optional) .
  • Page 3 8. Specifications ................40 9. Dimensional Drawings ..............43 Betriebsanleitung www.videor.com ⇒ Installation and Operating Instructions www.eneo-security.com Mode d’emploi Instrukcja instalacji i obsługi...
  • Page 4: Safety Instructions

    1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • P rotect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the camera outside of the specifications as this may prevent the camera functioning. • Do not operate the cameras beyond their specified temperature, humidity or power ratings. Operate the camera only at a temperature range of -0°C to +50°C and at a humidity of max. 90%. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • P ay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. • Never point the camera towards the sun with the aperture open. This can destroy the sensor. • Installation, maintenance and repair have to be carried out only by authorized service centers.
  • Page 5 • The fitter is responsible for the system of protection being followed in accordance with the technical data, e.g. by sealing of the cable outlet with silicone. • Contact your local dealer in case of malfunction. • Only use original parts and original accessories from Videor E. Hartig GmbH. • Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the surface. In case the dirt is hard to remove, use a mild detergent and wipe gently. • During assembly, care must be taken to ensure that existing seals are correctly inserted and are not displaced as a result of assembly. You must not continue to use damaged seals. NOTE: This is a class A digital device.
  • Page 6: General Description

    2. General Description • High Resolution Day&Night Camera • Integrated 3x AF lens / 0x digital zoom • True day&night mode with IR cut filter • Adjustable video transmission distance (3 steps) • Powerful digital noise reduction (3D DNR) • Motion detection (MD) • Low speed shutter control (DSS) • Digital effects: H/V reverse, 80° rotate • Privacy masking • On-screen menu control (OSD) • RS-485 serial interface (Pelco P & D) Parts supplied • Camera • Camera socket with 4 screws • Installation and Operating Instructions...
  • Page 7: Rear View And Part Names

    3. Rear View and Part Names () Video Out Jack () Function Setup Button (3) Power LED (4) Selection Switch (5) Power Input Terminal (6) Control Terminal 1. Function Setup Button Functions can be setup using 5 buttons on the camera’s rear panel. • MENU Buttons: Used to access menu mode. Also used to escape menu mode. • TELE/WIDE Buttons: Used to choose the desired menu item. It also moves the cursor up or down in the menu screen. • NEAR/FAR Buttons: Used to change the parameter of the selected menu item. It also moves the cursor the left of right in the menu screen. 2. VIDEO OUT Jack Used to connect an external video monitor in jack 3. Power LED The LED turns on when power is supplied.
  • Page 8 4. Selection Switch When the distance is far from camera to monitor, set „Selection Switch” in  or 3. It shows more clear video on the monitor. 5. POWER Input Terminal 6. Control Terminal • D&N IN: It is the function that can turn on external D&N mode is set „EXT D&N” on the OSD menu of the camera. D&N IN Open contact: Day EXT Type Close contact: Night • MD OUT: It is the function that can turn on DVR recorder when MD mode is set „ON” on the OSD menu of the camera. MD OUT +5V 10mA: Motion on 0V: Motion off...
  • Page 9: Installation

    4. Installation 4.1 Connecting a Monitor Connect the video out jack on the back of the product to the monitor Camera Monitor • Connect the camera after switching off each piece of equipment. • Change the 75ohms/Hi-Z conversation switch of each piece of equipment according to the following diagram - move the switch of the intermediate monitor to Hi-Z, and the end equipment to 75ohms. Intermediate Camera End Equipment Video receiver...
  • Page 10: Connecting To Power

    4.2 Connecting to Power • The wire is polarized. Be careful of polarity. • Use VDC power source. • As voltage may drop according to the length of electric cord, a camera may malfunction if too long output line of adaptor is connected to the camera. • Voltage for camera operation: VDC ±0%...
  • Page 11: Camera Control Methods

    4.3 Camera Control Methods Remote control using for PTZ controller PTZ Controller...
  • Page 12 Remote control using for RS-485 Signal (RS-485) DVR System Pelco-D Keyboard...
  • Page 13 • DVR DVR - Connect to Serial PORT (COM or COM) Serial Cable Camera RS-485 Converter • Keyboard (Pelco-D, Pelco-P) Pelco-D Keyboard...
  • Page 14: Communication Protocol

    5. Communication Protocol 5.1 PELCO-D Byte Format -RS-485, 9600bps,  start bit, 8 data bits,  stop bit, no parity • Command Message Function Zoom Tele Byte  Byte  Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 0xFF CamID 0x00 0x0 0x00 0x00 Checksum Function Zoom Wide Byte  Byte  Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 0xFF CamID 0x00 0x40 0x00...
  • Page 15 • Pelco Keyboard (95 + Pattern) Function Menu On / Off Byte  Byte  Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 0xFF CamID 0x00 0x3 0x00 0x5F Checksum • Video Keyboard (Set Preset + 98) Function Menu On / Off Byte  Byte  Byte 3 Byte 4 Byte 5 Byte 6...
  • Page 16: Pelco-P Byte Format

    5.2 PELCO-P Byte Format -RS-485, 9600bps,  start bit, 8 data bits,  stop bit, no parity • Command Message Function Zoom Tele Byte  Byte  Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 0xA0 CamID 0x00 0x0 0x00 0x00 0xAF Checksum Function Zoom Wide Byte  Byte  Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 0xA0 CamID 0x00 0x40 0x00 0x00...
  • Page 17: On-Screen Display

    6. On-Screen Display 6.1 Explanation of the On-Screen Display The OSD (On-Screen Display) is as follows: Function Explanation Automatic focus mode Focus Manual focus mode No screen inverted D-Effect Screen is inverted to the horizontally or vertically. Backlight compensation off Backlight Automatic backlight compensation mode Automatic colour correction mode Special colour correction mode White Indoor mode Balance Outdoor mode Temporary automatic mode...
  • Page 18: Function Osd

    Function Explanation Standard shutter speed (NTSC: /60, PAL: /50) Shutter Flicker correction mode Speed x5 ~ Shutter speed indicator x0.000 000 ~ 55 Camera identification number No motion detected Motion Detect Motion detected Initial Displayed when POWER ON of the WAITING LOGO camera is in operation Explanation of the scene capture Cam Title – by the camera (max.0 letters) Optical zoom: x ~ x3 Zoom x ... Dx30 Digital zoom: Dx4 ~ Dx30 („D” indicates digital zoom) „ND”: No Display The OSDs of 1, 2, 3, 4, 5, 7, 8, 10 disappear 5 sec later.
  • Page 19 OSD Menu Structure...
  • Page 20: Menu And Operation

    7. Menu and Operation 7.1 How to Set Up Functions Functions can be setup using 5 buttons on the camera’s rear panel. • MENU Key: Shows/Hides Menu • TELE/WIDE: Moves up and down items • NEAR/FAR: Set data for the selected item The above keys may be used differently in some functions: „CAM TITLE” 1. Press the MENU button • The Menu consists of the „Main Menu” and „Sub Menu”. • The main menu is displayed where 0 camera functions can be selected. • Main menu selection, the sub-menu is displayed.
  • Page 21 2. Press the TELE/WIDE button • It moves up and down the main menu category. • The sub-menu functions of the main menu category are displayed on the right. 3. Press the NEAR/FAR button • The current set state of each sub-menu can be checked. • Press the TELE/WIDE button to move up and down the sub-menu category and set each category by pressing the NEAR/FAR button. Can be changed using the Near/Far button 4. Press the OSD MENU button at the main menu or sub-menu screen to hide the menu. • It does not apply when the MENU button is used for other uses.
  • Page 22: Main Menu - Focus

    7.2 Main Menu – FOCUS • Sets camera zoom and focus • Press the MENU button to move to the sub-menu 1. FOCUS MODE • AUTO: Focuses automatically when the menu including D&N changes. • MANUAL: User focuses manually • PUSH: When Temporary Automatic Focus is selected, the camera focuses automatically when only the MENU button is pressed. NOTE: Automatic focus in manual mode is only possible when the location of the zoom lens has changed or when the „temporary automatic focus”...
  • Page 23 2. FOCAL DIST • Minimum distance the camera can focus. Example, 10cm: Objects/subjects closer than 0cm cannot be brought into focus. 3. ZOOM START • Minimum zoom movement. Possible from x00 to x03 4. ZOOM END • Maximum zoom movement. Possible from x00 to x30 5. ZOOM SPEED • Zoom speed movement (Start x ~ End x3) : 7.5sec : 6sec 3: 4sec 6. REFRESH MODE • Adjusts focus every REFRESH TIME automatically 7. REFRESH TIME • Period of auto focus adjusting 8. INITIAL • Initializes changed category in FOCUS Menu.
  • Page 24: Main Menu - Exposure

    7.3 Main Menu – EXPOSURE • Press the MENU button to move to the sub-menu. 1. AE MODE • AUTO: Automatically adjusts brightness according to the available lighting • MANUAL: Manually adjusts all brightness • AGC MAN: Allows you to adjust gain • IRIS MAN: Allows you to adjust iris • SHUT MAN: Allows you to adjust the shutter speed NOTE: Cannot adjust when D&N mode (refer to page 28) is in Auto. 2. SHUTTER • Can be changed while in Manual and Shutter Manual mode • Shutter speed can be changed from standard to /0.000.
  • Page 25 3. IRIS • Adjusts the opening of iris • Can be adjusted from 0 (closed) to 55 (opened) • Change in screen can be recognized only within the certain range • Can be adjusted in MANUAL and IRIS MANUAL mode. 4. AGC • Gain adjustment of image signal • Can be adjusted from 0 to 55 • Can be adjusted in MANUAL and AGC MANUAL mode 5. BRIGHTNESS • Brightness can be adjusted from 0 (dark) to 48 (bright) • Not used while in MANUAL mode 6. FLICKERLESS • Removes screen flickering caused by disordance of frequency and lighting 7. D.S.S. • Use under very low light condition for full colour surveillance • OFF: Digital slow shutter function is disabled. • Can be adjusted from FLD  to FLD 8 8. INITIAL • Initializes the changed category in EXPOSURE menu to the initial settings 9.
  • Page 26: Main Menu - Day/Night (Optional)

    7.4 Main Menu – DAY/NIGHT (optional) • Determines and operates in mode suitable for day or night • Press the MENU button to move to the sub-menu. • You can select between AUTO, NIGHT and DAY using the NEAR/FAR button. 1. D&N MODE • AE: Automatically adjusts brightness according to the available lighting. • EXT D&N: DAY/NIGHT filter operates by External signal 2. DWELL TIME • Sets conversion time of IR cut filter while in Automatic mode • Time can be adjusted from  to 0 seconds. 3. INITIAL • Initializes changed category in Night - Day/Night menu 4. EXIT • Closes the sub-menu and moves to the main menu...
  • Page 27: Main Menu - Blc

    7.5 Main Menu – BLC • Press the MENU button to move to the sub-menu. 1. BLC • Use to select BLC mode • BLC can be set from NORMAL, C, C, L, L, U, U, D, D, R, R and vice versa using the NEAR/FAR button.
  • Page 28: Main Menu - White Bal

    7.6 Main Menu – WHITE BAL • Adjusts picture colour • Press the MENU button to move to the sub-menu. • You can select between ATW, MANUAL, INDOOR, OUTDOOR and PUSH using the NEAR/FAR button. • ATW: Automatically adjusts colour according to the available lighting. • MANUAL: Colour can be corrected when the user increases or decreases „Red Control” or „Blue Control”. • INDOOR: Set colour temperature to be 5400K • OUTDOOR: Set colour temperature to be 300K • PUSH: Colour will be automatically adjusted while the MENU button is pressed in the temporary automatic mode. 1. RED CONT • Can be changed in Special mode only, and R-Gain value is adjusted. • Can be set from 0 to 55.
  • Page 29: Main Menu - 3D-Dnr

    2. BLUE CONT • Can be changed in Special mode only, and B-Gain value is adjusted. • Can be set from 0 to 55. 3. EXIT • Closes the sub-menu and moves to the main menu. 7.7 Main Menu – 3D-DNR • Press the MENU button to move to the sub-menu. 1. 3D-DNR • To reduce the image noise especially during the low ambient lighting conditions. • You can adjust between OFF, LOW, MIDDLE and HIGH using the NEAR/FAR button.
  • Page 30: Main Menu - Special

    7.8 Main Menu – SPECIAL • Press the MENU button to move to the sub-menu. 1. D-EFFECT • You can select between OFF, V-FLIP, ROTATE and MIRROR using the NEAR/FAR button. • V-FLIP: You can flip the picture hotizontally on the screen. • ROTATE: You can rotate 80 degrees the picture. • MIRROR: You can flip the picture vertically on the screen. 2. SHARPNESS • Adjusts sharpness of outlines • Can be set from 0 to 6 3. FREEZE • Freeze the video 4. COLOR • You can select between ON/OFF using the NEAR/FAR button.
  • Page 31 5. MOTION • When there is movement of the subject in the screen, there will be an alarm, or the user will be informed through communications or „MD” will display on the screen. • Press the MENU button to move to the sub-menu. A. ZONE SELECT • Sets motion detection field Can be set to CENTER, WHOLE, UPPER and OUT B. ZONE STATE • Enables or disables motion detection function C. SENSITIVITY • Sets sensitivity to detect movement Can be set from  (low response) to 5 (sensitive) D. INITIAL • Initializes the changed category in MOTION menu E. EXIT • Closes the sub-menu and moves to the main menu...
  • Page 32 NOTE: There is a signal every time there is movement by the subject. If motion is detected, MD (Motion Detected) is displayed on the upper left of the screen. This message enables the user to set On-Screen Display state in the menu. CAUTION: Error can occur in the motion detection function in the following cases.
  • Page 33 6. PRIVACY • Select PRIVACY using the TELE/WIDE button and press the MENU button to active the PRIVACY option. A. MASK NUMBER: To specify the PRIVACY area • Select AREA using the TELE/WIDE button. You can select area from 0~3 position using the NEAR/FAR button. B. MASK STATE: To display the Privacy Zone area • Select DISPLAY using the TELE/WIDE button. You can select between ON/OFF using the NEAR/FAR button. (1) ON: displays the Privacy Zone area (2) OFF: disable...
  • Page 34 C. MASK COLOR: To change colour of privacy zone • Select COLOR using the TELE/WIDE button. You can adjust from GRAY, BLACK, WHITE or YELLOW using the NEAR/FAR button. D. TOP/BOTTOM/LEFT/RIGHT: Users can specify PRIVACY ZONE area • Select TOP, BOTTOM, LEFT or RIGHT using the TELE/WIDE button. You can adjust the privacy zone using the NEAR/FAR button. (1) TOP: extend or reduce the upper area of the PRIVACY ZONE area (0~281) (2) BOTTOM: extend or reduce the bottom area of the PRIVACY ZONE area (3) LEFT: extend or reduce the left side of the PRIVACY ZONE area (0~741) (4) RIGHT: extend or reduce the right side of the PRIVACY ZONE area reduce RIGHT extend LEFT RIGHT BOTTOM E. INITIAL: To reset the factory default only on the PRIVACY mode. • Select INITIAL using the TELE/WIDE button. You can reset the PRIVACY mode using the MENU button.
  • Page 35: Main Menu - General

    F. EXIT: To return to SPECIAL MENU • Select EXIT using the TELE/WIDE button. You can return to SPECIAL using the MENU button. 7.9 Main Menu – GENERAL • Sets up the general operation of the camera. • Press the MENU button to move to the sub-menu. 1. CAMERA ID • Displays the camera’s ID • Camera ID can be specified using numbers from 000 to 55 using the NEAR/FAR button. 2. ID DISPLAY • Displays CAM ID on the screen...
  • Page 36 3. CAM TITLE • Edits and displays the information of camera or explanation on the area of the image being captured at the bottom left of the screen. • Maximum of 0 letters can be used/edited. CAM TITLE • User can edit explanation or condition of camera, and this will be displayed on the lower left screen. . You can choose up to 84 symbols from the available symbols table. . Select the location of letters using the TELE/WIDE button. A downward arrow will blink on top of the letter to edit. 3. Select letters using the NEAR/FAR button. 4. To exit, press the MENU. CAUTION: Denotes a blank letter and will be displayed as a blank space on the actual screen.
  • Page 37 4. LANGUAGE • Displays the currently set language • Language can be set from ENG to CHN and vice versa using the NEAR/FAR button. 5. PROTOCOL • DEF: Default • P/D: Pelco-D • P/P: Pelco-P 6. BAUDRATE • You can select 400/4800/9600/38400 bps. 7. VERSION • Displays the camera’s version 8. INITIAL • Resets the current general settings category to the initial settings 9. EXIT • Closes the sub-menu and moves to the main menu CAUTION: Change the data of the sub-menu using the NEAR/FAR button.
  • Page 38: Main Menu - Initial

    7.10 Main Menu – INITIAL • Initializes all current settings • No sub-menu • Press the MENU button to initialize the entire camera settings • Note that all settings in the sub-menus will be initialized. • OFF STATE: Indicates that settings are not initialized • ON STATE: Indicates that camera settings have been initialized CAUTION: Please use caution when performing this function. Every setting (even in all sub-menus) will be initialized (except some menus CAM ID, CAM TITLE, LANGUAGE, PROTOCOL, BAUDRATE of GENERAL menu).
  • Page 39: Main Menu - Exit

    7.11 Main Menu – EXIT • Closes menu • Press the MENU button to close menu.
  • Page 40: Specifications

    8. Specifications Type VKC-1425 Art. No. 92769 System Day & night Video standard Sensor size /4” Imager CCD, Monalisa II DSP Active picture elements 795(H) x 596(V) pixels Synchronization Internal Signal-to-noise ratio >50dB Horizontal resolution 580 TVL Sensitivity 0.4 Lux, (colour); 0.5Lux (B&W) at (at 50% video signal) F. (measured) Exposure modes Automatic, manual, iris priority, shutter priority, AGC priority Automatic electronic /50 ~/0,000sec.
  • Page 41 White balance ATW, indoor, manual, outdoor, one push Backlight compensation BLC, 4 adjustable zones, ON/OFF switchable Wide Dynamic Range (WDR) IR cut filter Switchable Video outputs Composite (CVBS) Lens type Zoom Focal length 3.6 mm - 8.8 mm PTZ support Digital zoom x ~0x Horizontal angle of view 55.° - .° Illumination Menu language English OSD function control OSD camera setup Text display 0 digit...
  • Page 42 Housing material Metal, plastic Housing Indoor Integrated wall mount Hidden cable management Sunshield Window heater Colour (housing) Silver grey Vandalism resistant Protection rating Alarm inputs Alarm outputs Supply voltage VDC, (+/-0%) Power consumption 4.6watts Dimensions See drawings Weight 35g Certificates Optional Accessories The optional accessories currently available can be found on our Homepages: www.videor.com and www.eneo-security.com...
  • Page 43: Dimensional Drawings

    9. Dimensional Drawings 1/4”-20UNC 34.6 50.5 Dimensions: mm...
  • Page 44 ® Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 633 Rödermark/Germany Technical changes reserved Tel. +49 (0) 6074 / 888-0 Fax +49 (0) 6074 / 888-00 © Copyright by VIDEOR E. Hartig GmbH www.videor.com www.eneo-security.com 05/0...
