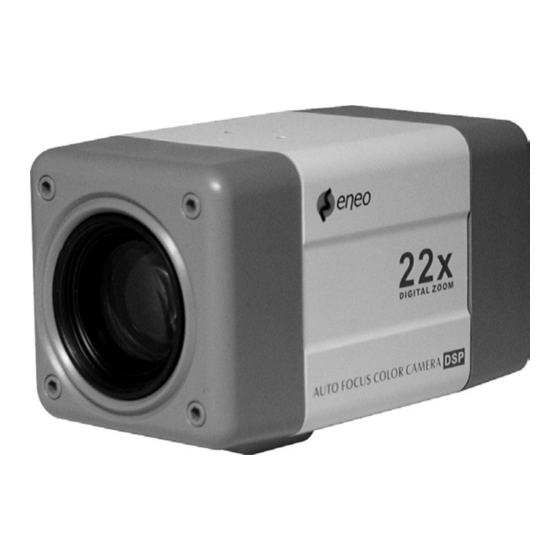

- Page 1 Installation and Operating Instructions Color CCD-AF-Camera with integrated zoom lens, VKC-1415...
-
Page 2: Table Of Contents
3. Connection and Operation ............................... 5 4. Settings in the OSD Menu ............................... 7 5. Troubleshooting ..................................12 6. Specifications ..................................13 7. External Controller Circuit Schematic ............................ 15 8. Dimensional Drawings ................................16 Montage- und Betriebsanleitung ⇒ www.eneo-security.com/manuals Installation and Operating Instructions... -
Page 3: Safety Instructions
1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Unauthorized intervention voids warranty. • Contact your local dealer in case of malfunction •... -
Page 4: General Description
• 12 VDC power supply • Excellent picture quality • Various picture effects • Digital zoom x11 • Flexible configuration Supplied Items 1 x 1/4” Colour camera VKC-1415 1 x Installation ond operation manual 1 x 12 pin control cable... -
Page 5: Connection And Operation
3. Connection and Operation Rear view Front view Right hand camera side Bottom view Zoom Lens Integrated lens with 22x optical and 11x digital zoom. Filter mount Accepts commonly used filters with 37 mm diameter. Connector 12 pin connector (connection see below) for control interface TELE, WIDE Zoom control: Push „WIDE”... - Page 6 Power supply Terminal block for power (12 VDC) Tripod mount Standard (1/4” - 20 UNC) thread for tripod mount Connector for control interface Description Description 485- RS-485- RS-485+ 485+ RS-232 TXD IN RS-232 RXD IN Ground Motion detect out External AD KEY 2 External AD KEY 1 Far (-), Near (+) FOKUS...
-
Page 7: Settings In The Osd Menu
4. Settings in the OSD Menu <MAIN MENU> TITLE DISPLAY CAM SET EFFECT PRESET Status display Main menu Programming The menu is controlled with the camera buttons: TELE button: Moves the cursor up WIDE button: Moves the cursor down NEAR button: Moves the cursor to the right ➞... - Page 8 Settings in the main menu MAIN MENU Table of the settings in the main menu TITLE DISPLAY CAM SET EFFECT PRESET Table of the settings in the main menu TITLE DISPLAY CAM SET EFFECT PRESET AUTO MENU DISP0 D-ZOOM FOCUS INDOOR IRIS PRI ABCDEF...-,‘...
- Page 9 Description of the submenu settings Automatic white balance INDOOR / OUTDOOR White balance for indoor or outdoor MANUAL Manual white balance setting. The red and green picture values can be adjusted with buttons. The setting is saved with ENTER. ➞ WAWB Automatic white balance adjustment for wide angle AUTO...
- Page 10 Display DISP0 Displays camera text and camera ID DISP1 Displays camera text, camera ID and zoom lens position DISP2 Displays camera text, camera ID, zoom lens position, AGC, shutter speed, aperture, focus mode, white gain and auto exposure DISP PUSHON Display OFF/ON/PUSHON (when button is pressed the display appears for 4-6 sec.) CAM SET Input of camera ID number.
- Page 11 PRESET FOCUS Selection of automatic (AUTO) or manual (MANUAL) operation. In order to prevent a focus shift, for example after a power failure, the setting „manual focus” must be stored before in the menu under INIT with „Preset” and under SAVE with „Preset”. PUSHAF: the focus is held until the zoom button is pressed again.
-
Page 12: Troubleshooting
5. Troubleshooting If problems occur, verify the installation of the camera qith the instruction in this manual and with other operating equipments. Problem Possible solution No video 1. Verify power to all pieces of equipment in the system. 2. Verify that the lens cap has been removed from the lens or that the ids of the lens is open. Videos, but no control Power down the system for one minute, then turn power back on (reset). -
Page 13: Specifications
6. Specifications Model VKC-1415 EDP No. 91884 Imager 1/4” Sony Super HAD Interline Transfer CCD System Signalprocessing Digital (DSP) Active pixels 752 x 582 Synchronization Internal, external Horizontal resolution 480TV lines Sensitivity at 50% video signal Standard use: 0.8Lux at F1.6 (measured) - Page 14 Lens Iris control Auto / manual (F1.6 - F32) Focus length 3.8mm - 83.6mm (+/- 5%), (22x optical zoom, 11x digital zoom) M.O.D. (x1-x4) 10cm, (x5 -x22) 1m Auto exposure Auto, manual, IRIS PRI, Shutter PRI, AGC ON/OFF, Adjustments Digital zoom, positiv/negativ switch, B/W, mirror, PIP, freeze, BLC, camera title, camera ID, display, presets, DNR, WDR, DIS, Low-Shutter Focus control Automatic / manual...
-
Page 15: External Controller Circuit Schematic
7. External Controller Circuit Schematic... -
Page 16: Dimensional Drawings
42.5 8. Dimensional Drawing Dimensions: mm eneo ® is a registered trademark of Videor Technical E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR TECHNICAL E. Hartig GmbH Carl-Zeiss-Straße 37 · 63322 Rödermark/Germany Technical changes reserved. Tel. +49 (0) 60 74 / 888-0 · Fax +49 (0) 60 74 / 888-100 www.eneo-security.com...
