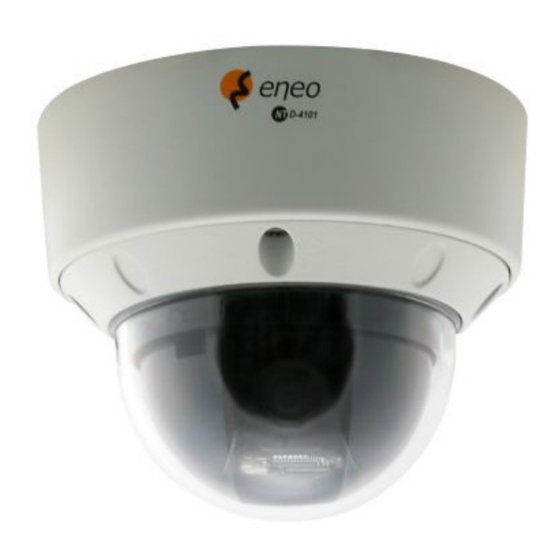

- Page 1 Operating Instructions 1/4“ Network Colour Mini Dome Camera Model: NTD-4101...
-
Page 3: Safety Instructions
Use only a damp cloth for cleaning the camera housing. Never use a wet cloth. ► Use only a mild detergent to clean the housing. Do not use solvent-containing detergents or benzene. This could permanently damage the surface finish. Spare parts ► Use only original spare parts from Videor E. Hartig GmbH. NTD-4101... -
Page 5: Table Of Contents
Operation via system keypad Joystick menu functions Keypad menu functions Camera menu operation Invoking menu settings Controlling the camera during menu operation Saving presets via the system keypad Camera movement with enabled automatic image reversal Resetting alarm Operation via web browser NTD-4101... - Page 6 Camera Control via NT-Manager NT-Manager main menu Additional information Logging on the camera in the network Camera Control via Web Browser Connecting camera with web browser Possible Errors and Solutions Specifications NTD-4101 Accessories Dimensional Drawings Index Notes on disposal NTD-4101...
-
Page 7: Overview
Note: Please refer to www.videor.com for further information. Control options ● Analog camera menu via external system keypad (not in scope of delivery) ● Viewer software (NT-Manager) ● Web browser NTD-4101... -
Page 8: Design And Connections Of The Camera
ALARM COMMON Blue: Alarm earth Alarm contact RS-485(+) Black: RS-485(+) Non-inverted connection RS-485(-) Brown: RS-485(-) Inverted connection LAN (RJ-45) Network connection, RJ-45 Network cable Power supply unit 12 VDC, protection +12 VDC / GND Power supply class 2, 12 W NTD-4101... -
Page 9: Terminating The Camera (Rs-485)
The termination of the camera at the physical end of the RS-485 line must be activated. Requirements: RS-485 of the camera Termination switch ● Camera separated from the power supply. Terminated ● Termination switch accessible. ● Network connection configuration known. Not terminated NTD-4101... -
Page 10: Getting Started
Note down the MAC address of the camera Make camera selections in the analog camera menu Install the camera at the monitoring point Connecting the camera Install the network software Log on the camera in the network Operate the camera via the network NTD-4101... -
Page 11: Network Connection Setup
Network Connection Setup The following figure shows an example of a network connection setup. IP setting utility RJ-45-Crossover RJ-45-LAN NT-Manager External Control Internet *) terminated NTD-4101... -
Page 12: Installing The Camera
Prior to installing the camera on a wall or ceiling you must secure the safety rope from the parts supplied on the camera. Requirements: ● Safety rope and screw from the parts supplied are available. Meaning Retaining screw Mx5 Safety rope NTD-4101... -
Page 13: Drilling Template
The enclosed drilling template permits boreholes and openings to be drilled at the correct positions. The following figure and table show the drilling template with dimensions (in mm): Meaning 42.5 Borehole Ø 7.5 mm Outer edge of template Opening in suspended ceiling Opening for cable penetration NTD-4101... -
Page 14: Opening The Dome Cover
Once installation and adjustment have been completed, you must close and secure the dome cover. Step Action Fold the dome cover (B) over the optical system onto the dome base (D). Tighten four screws (A) in the dome cover (B). Result: The dome cover is closed and secured. NTD-4101... -
Page 15: Installation On Ceiling Or Wall
Secure the safety rope on a bearing part. Connect the camera. Open the dome cover. Securely screw the dome base with 4 screws M6x5 (A) and rubber gaskets (B) in the multi- purpose wall plugs (D). Close and secure the dome cover. NTD-4101... -
Page 16: Installing The Heater Kit
The following figure and the table describe the measures to be taken for routing the cables in a pipe: Step Action Remove the rubber gasket (A) from the camera cable outlet. Route the pipe (B) over the cables to the camera. Sealing with silicon sealant around the pipe (C) replaces the removed rubber gasket. NTD-4101... -
Page 17: Connecting The Camera
The RS-485 connection of this camera is suitable for an RS-485 interface with baud rate 9600 bps. Requirements: ● The cable ends must be insulated after connection, even when they are unused. ● Total communication cable length: max. 1200 m. NTD-4101... -
Page 18: Camera Settings
Requirement: Colour standard known. Requirement: Control protocol known. Colour standard DIP No. 8 Protocol DIP No. 9 DIP No. 0 NTSC Fastrax-II PELCO-D Setting the ID address The following table shows the settings of the DIP switches for networks: NTD-4101... -
Page 19: Multiplexer In The Network
= 0 + 4 = 16 x (1 - 1) + 1 = 0 + 1 = 16 x (2 - 1) + 1 = 16 + 1 = 16 x ( - 1) + 11 = 2 + 11 NTD-4101... -
Page 20: Operation Via System Keypad
Invoke „MAIN MENU“ MENU Cancel entries and return to the previous menu Enable joystick for camera function CTRL Allocate presets to numeric keys Invoke preset PRST Invoke camera movement TOUR Invoke automatic scanning SCAN Reset alarm ALRM Numeric keys NTD-4101... -
Page 21: Camera Menu Operation
Operation Press and hold the CTRL button. CTRL Result: The text „CONTROL“ appears on the OSD. Make PTZ settings. Release CTRL button. Result: The text „CONTROL“ disappears from the OSD. The PRESET MENU settings can be saved as presets. NTD-4101... -
Page 22: Saving Presets Via The System Keypad
Result: The camera rotates through 180°, the camera move- ment is continued. Resetting alarm An activated alarm can be terminated by resetting it via the system keypad. The following table describes how an alarm is reset. Step Action Operation Reset alarm. ALRM Result: Alarm function reset. NTD-4101... -
Page 23: Operation Via Web Browser
Web browser (e.g. Internet Explorer) installed in the PC. ● Current version of ActiveX/HVC installed in the PC. ● IP address of the camera is known. Note: The integrated help function provides comprehensive information about the operation of the web browser. NTD-4101... -
Page 24: Camera Menu Overview
END POINT SAVE AND EXIT EXIT ALARM INPUT OPTION PRESET DWELL TIME SAVE AND EXIT EXIT CAMERA SETUP FOCUS CONTROL MODE DISTANCE DIGITAL ZOOM SAVE AND EXIT EXIT WB CONTROL MODE R GAIN B GAIN SAVE AND EXIT EXIT NTD-4101... - Page 25 INITIALIZE CAMERA YES or NO EXIT DOME SETUP OSD DISPLAY TILT AUTO FLIP HOME FUNCTION MODE FUNCTION TYPE FUNCTION NUMBER DWELL TIME SAVE AND EXIT EXIT INITIALIZE DOME YES or NO DOME INFORMATION VERSION: x.y.z SAVE AND EXIT EXIT NTD-4101...
-
Page 26: Menu Descriptions - Camera Menu
Resetting the camera to the delivery state DOME SETUP The following items are defined in the „DOME SETUP MENU“ menu: ● The settings for the OSD DOME SETUP ● The settings for the home function ● Resetting the dome part to the delivery state NTD-4101... -
Page 27: Preset (Fixed Positions)
Max. 10 letters or figures in any combination Status display of the presets: = = = ... Preset not assigned Preset assigned SAVE AND EXIT Save the entries and return to the „MAIN MENU“ EXIT Back to the „MAIN MENU“ NTD-4101... -
Page 28: Tour (Camera Movements)
Input of the presets of the camera movement: == == ... Up to 16 presets per tour DELETE DATA Delete entries of the selected camera movement SAVE AND EXIT Save the entries and return to the „MAIN MENU“ EXIT Back to the „MAIN MENU“ NTD-4101... -
Page 29: Auto Scan (Automatic Scanning)
Note: No display of the zoom value, setting by image contents. Set the horizontal end angle: 0.0° Min. horizontal end angle END POINT 0.0° Factory setting 60.0° Max. horizontal end angle SAVE AND EXIT Save the entries and return to the „MAIN MENU“ EXIT Back to the „MAIN MENU“ NTD-4101... -
Page 30: Alarm 0
Note: The setup mode depends on the following settings: OPTION = TIME OUT DWELL TIME Min. dwell time Factory setting 99 s Max. dwell time SAVE AND EXIT Save the entries and return to the „MAIN MENU“ EXIT Back to the „MAIN MENU“ NTD-4101... -
Page 31: Camera Setup 1
White balance settings >> AE CONTROL Set automatic exposure control >> PICTURE Video image settings >> Reset camera part to delivery state: INITIALIZE CAMERA Return to „CAMERA SETUP MENU“ Reset camera part to delivery state EXIT Back to the „MAIN MENU“ NTD-4101... - Page 32 Min. focus DISTANCE 0.1M Factory setting Max. focus 6.0M Set digital zoom: Optical zoom only DIGITAL ZOOM Digital and optical zoom SAVE AND EXIT Save the entries and return to the „CAMERA SETUP MENU“ EXIT Return to „CAMERA SETUP MENU“ NTD-4101...
- Page 33 Note: Only possible in conjunction with „MANUAL“ mode. Blue intensification: Min. intensification Factory setting B GAIN Max. intensification Note: Only possible in conjunction with „MANUAL“ mode. SAVE AND EXIT Save the entries and return to the „CAMERA SETUP MENU“ EXIT Return to „CAMERA SETUP MENU“ NTD-4101...
- Page 34 Note: Only possible in conjunction with „MANUAL“ mode. Shutter speed setting: Min. speed NORMAL Factory setting in „SHUTTER PRI“ or „MANUAL“ mode. SHUTTER Factory setting in „FLICKERLESS“ mode Max. speed 10000 Note: Not possible in conjunction with „AUTO“ mode or „IRIS PRI“. NTD-4101...
- Page 35 Manual sharpness adjustment of the camera image: Min. contour sharpness Factory setting SHARPNESS Max. contour sharpness Note: Only possible in conjunction with „MANUAL“ mode. SAVE AND EXIT Save the entries and return to the „CAMERA SETUP MENU“ EXIT Return to „CAMERA SETUP MENU“ NTD-4101...
-
Page 36: Dome-Setup 6
Reset dome part to delivery state: Return to „DOME SETUP MENU“ INITIALIZE DOME Reset dome part to delivery state DOME INFORMATION Display software version SAVE AND EXIT Save the entries and return to the „MAIN MENU“ EXIT Back to the „MAIN MENU“ NTD-4101... -
Page 37: Exit 7
DWELL TIME Factory setting 600 s Max. dwell time SAVE AND EXIT Save the entries and return to the „DOME SETUP MENU“ EXIT Return to „DOME SETUP MENU“ EXIT The main menu is exited with „EXIT“. MAIN MENU EXIT NTD-4101... -
Page 38: Setting Up Network Connectivity 8
Complete the MAC address of the camera. MAC address Enter the IP address of the camera. IP address Select the Ethernet adapter of the PC. Ethernet adapter Log on the camera in the network. START Result: The IP address is allocated to the camera. NTD-4101... -
Page 39: Camera Control Via Nt-Manager 9
Camera status PTZ control Display Camera list Add group Add camera Display Search list Display Monitoring image Playback control Additional information The complete software description of the NT-Manager can be found in the Help function of the NT-Manager software. NTD-4101... -
Page 40: Logging On The Camera In The Network
Register the camera. Result: The new camera is added to the camera list, and integrated. Select the camera from the camera list, and drag it to a channel on the screen (Drag&Drop). Result: The camera image appears on the screen. NTD-4101... -
Page 41: Camera Control Via Web Browser
Note: A separate web browser window must be opened for each camera. Enter the IP address of the camera into the address line of the web browser. Example: http://192.168.0.2 Enter user name (admin) and password (no entry). Select login. Result: The camera is connected with the web browser. NTD-4101... -
Page 42: Possible Errors And Solutions
Terminate the devices at the physical end of the RS-485 line. Control via RS-485 disturbed Total communication cable length: max. 1200 m. Check ID addresses. Repeat log on at keypad. Keypad operation disturbed Check the connections. Check the peripherals. NTD-4101... -
Page 43: Specifications Ntd-4101
Specifications NTD-4101 Model NTD-4101 EDP No. 9155 System Colour Video standard Sensor size 1/4“ Imager CCD, Sony Super HAD Interline Transfer Synchronization Internal External synchronization Signal-to-noise ratio 48 dB (AGC OFF) Light sensitivity 0.85 Lux (at 50% video signal) Horizontal resolution... - Page 44 Specifications NTD-4101, continued Model NTD-4101 Resolution Network: 720 x 576 (D1), 640 x 480, 20 x 240, 160 x 120 pixels Image transfer rate max. 50 fields/s Frame rate Max. 25 ips at 720 x 576 pixels (PAL) Playback Via browser to PC or Viewer software...
- Page 45 Specifications NTD-4101, continued Model NTD-4101 Tours 4 selectable tours with 16 presets each Autoscan function 4 ranges, speed: 7°/s Operating voltage 12 VDC, 20 VAC Power-over-Ethernet Power consumption 12 W max. Ceiling installation or installation in wall or ceiling bracket...
-
Page 46: Accessories
Configuration software for Fastrax, Minitrax Dome cameras and VKC-1416 Wall or ceiling installation bracket for EDMC-142 dome camera series and 74097/EDMC/CWB WDDG-1 74155/EDMC/CWB-1 Wall or ceiling installation bracket for dome camera series EDMC and NTD 74099/EDMC/H12 Low-voltage heater kit 12V/10W for Minitrax series NTD-4101... -
Page 47: Dimensional Drawings
Dimensional Drawings Dimensions in mm NTD-4101... -
Page 48: Index
Connecting the camera 1, 16, 17 Connections 8, 9 ID address Connector imprint 15 Calculating 19 Control cable 15 Setting 18 Control options 7 Installation Control protocol 18 Rubber ring gasket 15 Installing the camera 12 Ceiling or wall 15 NTD-4101... - Page 49 Package contents 7 Recycling the VCR 50 RS-485 17 Safety instructions Safety rope Installation on structure 15 Installation on the camera 12 Setting up network connectivity 8 Shutter speed 28 Specifications 4 Structure 8, 9 Terminating 9 White balance 27 NTD-4101...
-
Page 50: Notes On Disposal
Contact the retailer from whom you purchased the camera, or your competent local authority to find out how you can recycle the camera in an environmentally friendly way. Commercial users ► This camera must not be discarded with trade waste. To clarify the conditions of disposal, check your purchase contract or contact your supplier. NTD-4101... - Page 52 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Operating Instructions version 09/2008 (V1.0) Carl-Zeiss-Str. 8 · 622 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Subject to technical change without notice.
