Page 1: Installation Instructions

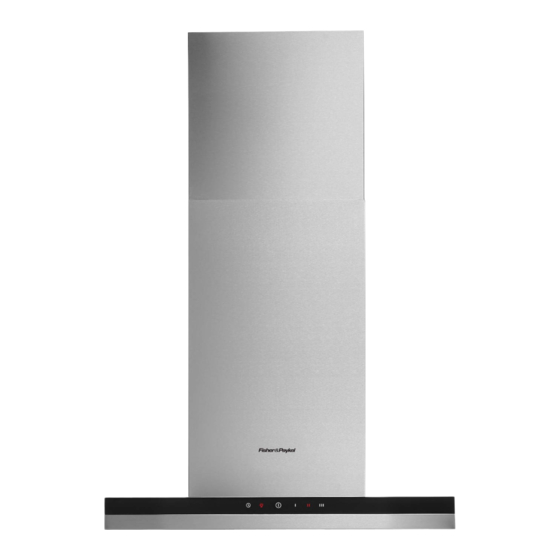

INSTALLATION INSTRUCTIONS USER GUIDE Box Wall Rangehood HC60DCXB1, HC90DCXB1, HC120DCXB1, HC60DCXB2, HC90DCXB2 and HC120DCXB2 models NZ AU ROW... -
Page 3: Table Of Contents
CONTENTS Introduction Safety and warnings Installation instructions Operating instructions Cleaning and maintenance Parts and accessories Manufacturer’s Warranty Customer Care IMPORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this user guide may provide you with the best service possible. -
Page 5: Introduction
INTRODUCTION Thank you for purchasing a Fisher & Paykel product. Thousands of hours go into the design, engineering, testing and perfecting of each Fisher & Paykel appliance. The care and attention given to creating these beautiful products doesn’t stop once it has found its home with you. This use and care manual will answer most of your questions about the set-up, use and on-going maintenance of your Fisher &... -
Page 6: Safety And Warnings
SAFETY AND WARNINGS WARNING! Weight Hazard The appliance is heavy. Please ensure adequate care is taken when installing the appliance to prevent personal injury. The appliance must be installed onto a solid wall, stud, beam or truss. Weight of the product is 13.2 kg (HC60) / 17.6 kg (HC90) / 24 kg (HC120). -
Page 7: Important Safety Instructions
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! When using this appliance always exercise basic safety precautions including the following: Please read the entire set of instructions before installing or using this appliance. ● ● Please make this information available to the person installing the appliance – ●... - Page 8 SAFETY AND WARNINGS You must read the details concerning the method and frequency of cleaning. ● ● There is a fire risk if cleaning is not carried out in accordance with the instructions. ● ● Never leave frying food unattended since grease can overheat and catch fire. The risk ●...
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Contents of packaging INSTALLATION INSTRUCTIONS USER GUIDE Box Wall Rangehood HC60DCXB1, HC90DCXB1, HC120DCXB1, HC60BCXB2, HC90BCXB2 and HC120BCXB2 models NZ AU ROW Rangehood Installation instructions Chimney User guide manual Upper chimney Upper chimney bracket Chimney bracket Ducting adapter Expansion plug 30 mm self... - Page 10 INSTALLATION INSTRUCTIONS Product dimensions Power cord location Ø...
- Page 11 INSTALLATION INSTRUCTIONS HC60 HC90 HC120 PRODUCT DIMENSIONS Overall height of product 595 – 1035 595 – 1035 595 – 1035 Overall width of product 1198 Overall depth of product Height of hood Height of stainless strip Width of chimney Depth of chimney Distance from centre of ducting outlet to back of product Distance from centre of ducting...
- Page 12 INSTALLATION INSTRUCTIONS Height of rangehood INSTALLATION DIMENSIONS Installation height Ducted min. 635 – max. 1035 Recirculation min. 675 – max. 1035 Height top of cooktop to base of product Electric cooktop min. 600 – max. 750 Gas cooktop min. 650 – max. 750 Rangehood installation height above the cooktop is the user’s preference.
- Page 13 INSTALLATION INSTRUCTIONS Venting options Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. The rangehood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen. Ducted For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid ducting is used.
- Page 14 INSTALLATION INSTRUCTIONS WARNING! This appliance is heavy and requires two persons for unpacking and installation ● ● Installation work and electrical wiring must be done by qualified person(s) in ● ● accordance with all applicable codes and standards. Failure to install the screws or fixing device in accordance with these instructions ●...
- Page 15 INSTALLATION INSTRUCTIONS 250 mm Upper chimney extension bracket attachment points 235 mm Chimney bracket attachment points 250 mm Upper hood attachment points Lower hood attachment points Fig.2 HC60 HC90 HC120 PRODUCT DIMENSIONS Lower rangehood attachment point width Chimney bracket attachment point height Upper rangehood attachment point height Lower rangehood attachment point height 42.5...
- Page 16 INSTALLATION INSTRUCTIONS Fig.3 Attach ducting adapter Place the ducting adapter ● ● onto the hood and screw it in place using the 10 mm screws.
- Page 17 INSTALLATION INSTRUCTIONS Attach hood to wall Remove filters and easy clean plate from hood as shown in Fig.4. ● ● Fig.4...
- Page 18 INSTALLATION INSTRUCTIONS Fig.5 Hang hood off upper hood mounting screws with 2 mm gap. Hang off the keyhole ● ● attachment points on the back of the hood (see Fig.5). Tighten screws. Attach lower hood mounting screws to fix hood to wall. ●...
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS Touch control panel CONTROL PANEL FEATURES Filter Activated regularly to alert of the need to cleaning alert clean filters. It can be deactivated with a single press. Timer Turn the timer on. The fan operates for 5 minutes at the current speed and each descending speed before turning off. -
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING! Unplug or disconnect the appliance from the power supply before servicing or cleaning. IMPORTANT! Never use abrasive or oil based cleaners ● ● Wear gloves to protect against sharp edges ● ● Maintenance The rangehood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. - Page 21 CLEANING AND MAINTENANCE WARNING! When replacing the bulb, let the bulb cool, and assure that power to the rangehood ● ● has been turned off. Use new bulbs according to that indicated on the rangehood nameplate. ● ● Carbon filters – for use in recirculation mode Active carbon filters are disposable items designed to remove grease and odours from cooking vapours before the air is channelled back into the kitchen.
-
Page 22: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER Halogen bulb 791822 Aluminium filter pattern 791938 Recirculation carbon filter 791772 Recirculation diverter 791820 Ducting kit 150 mm (eaves) PD-RHK150E Ducting kit 150 mm (wall) PD-RHK150W... -
Page 23: Manufacturer's Warranty
MANUFACTURER’S WARRANTY You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this rangehood covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. - Page 24 MANUFACTURER’S WARRANTY For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
-
Page 25: Customer Care
CUSTOMER CARE Before you call for service or assistance... Check the things you can do yourself. Refer to your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Fisher &... -
Page 26: Registration
CUSTOMER CARE *If you call, write or contact our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance. Product details can be found on the easy clean plate underneath the filters. -
Page 28: Www.fisherpaykel.com
www.fisherpaykel.com © Fisher & Paykel Appliances 2015. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your dealer to ensure this booklet correctly describes the product currently available.
