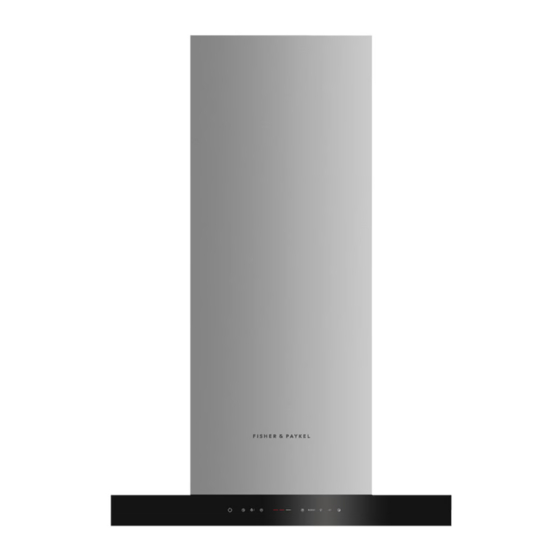

- Page 1 WALL RANGEHOOD CONTEMPORARY HC60DCXB4, HC90DCXB4, HC90DCBB4, HC120DCXB4, HC90DCEBB4 & HC90DCEXB4 models USER GUIDE NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Cooking considerations First use Wi-Fi connection Light settings Care and cleaning Parts and accessories Troubleshooting Manufacturer’s Warranty Customer care Registration To register your product visit our website: fisherpaykel.com/register... -
Page 4: Safety And Warnings
The appliance must be installed onto a solid wall, stud, beam or truss. • Product weight: HC120DCXB4 25kg HC60DCXB4 15kg HC90DCEXB4 12kg HC90DCXB4 17kg HC90DCBB4 17kg HC90DCEBB4 12kg READ AND SAVE THESE INSTRUCTIONS... - Page 5 SAFETY AND WARNINGS WARNING! When using this appliance always exercise basic safety precautions including the following: General This product is for use with a compatible Fisher & Paykel external motor (some models only). Failure to comply could void your warranty. Please read the entire set of instructions before installing or using this appliance.
-
Page 6: Cooking Considerations
COOKING CONSIDERATIONS Induction Induction cooktops use energy-efficient technology that only heats the contents of a cooking pot, not the surrounding air. As a result, there is more likelihood of condensation on rangehood filters, splashbacks and surrounding cabinetry than when you use traditional electric or gas cooktops. -
Page 7: First Use
FIRST USE Control panel Press to turn the rangehood on/off. The fan turns on at lowest 1 Power speed and lights turn on to the last used level. Fan turns off after 4 hours with no interaction. Press to turn the timer on. The fan operates for 5 minutes at the 2 Timer current speed and 2 minutes at each descending speed before turning off. -
Page 8: Wi-Fi Connection
WI-FI CONNECTION Your appliance may be connected to your home wireless network and operated remotely using the app. Getting started Ensure your home Wi-Fi network is turned on. You will be given step by step guidance on your mobile device. It may take up to 10 minutes to connect your appliance. -
Page 9: Light Settings
LIGHT SETTINGS Lights can be adjusted for brightness or colour temperature. They will turn off after 12 hours with no interaction. Adjusting brightness level With rangehood ON, press and hold Lights button to adjust brightness level. You can also adjust brightness via the app. Changing colour temperature With rangehood OFF, press and hold Light button until adjacent buttons flash red for... -
Page 10: Care And Cleaning
CARE AND CLEANING Disconnect the product from the power source before undertaking any cleaning. Clean your rangehood regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease. Avoid the use of corrosive chemicals, abrasive cleaning products, hard brushes and steel wool pads. - Page 11 CARE AND CLEANING Carbon filters (some models only) Carbon filters are for use in recirculating mode. They are disposable and must be replaced at least every three months to ensure the performance of the rangehood. In the event of a fire, grease-laden filters could be flammable.
-
Page 12: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER LED Strip 60cm 793708 LED Strip 90cm 793709 Filter with Stainless Steel cover and anti drop hooks 793707 Carbon filter x 2 793599 Recirculation Diverter 150mm 793713 Chimney Extension 850mm 792492 Chimney extension 850mm Black Stainless Steel 793716... -
Page 13: Troubleshooting
TROUBLESHOOTING If there is a problem with your rangehood, please check the following points before contacting your local Fisher & Paykel trained and supported service technician or the Customer Care Centre. PROBLEM POSSIBLE CAUSE WHAT TO DO The external motor shuts The thermal protector has shut off Turn off the rangehood. -
Page 14: Manufacturer's Warranty
MANUFACTURER’S WARRANTY You automatically receive a 2-year Manufacturer’s Warranty with the purchase of this product covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. - Page 15 MANUFACTURER’S WARRANTY For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
-
Page 16: Customer Care
CUSTOMER CARE Before you call for service or assistance Check the things you can do yourself. Refer to your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Fisher &... - Page 17 CUSTOMER CARE *If you call, write or contact our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance.
- Page 18 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
