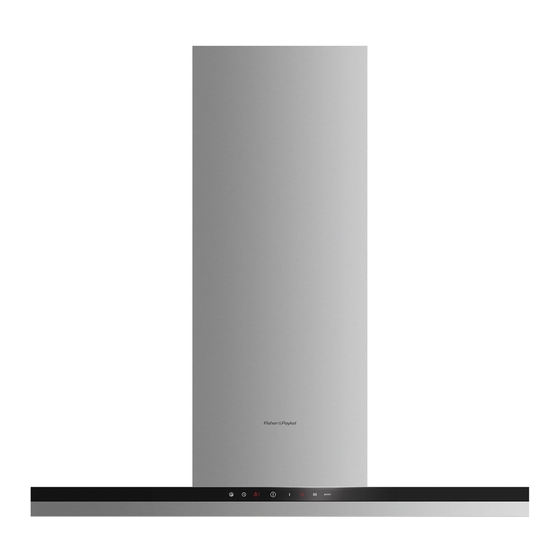

Fisher & Paykel 7 Series Installation Manual
Wall rangehood, box chimney with external blower
Hide thumbs
Also See for 7 Series:
- User manual (42 pages) ,
- Installation manual/user manual (28 pages) ,
- Installation manual (14 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel 7 Series
Summary of Contents for Fisher & Paykel 7 Series
- Page 1 WALL RANGEHOOD, BOX CHIMNEY WITH EXTERNAL BLOWER CONTEMPORARY HC60DCEXB3 & HC90DCEXB3 INSTALLATION GUIDE NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Parts supplied Prior to installation Product dimensions Installation height Attachment dimensions Venting requirements Electricial requirements Attach brackets and mounting screws Prepare rangehood Hang rangehood Parts and accessories Final checklist... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs. Failure to do so can result in death, electric shock, fire or injury to persons. - Page 5 SAFETY AND WARNINGS WARNING! When using this appliance always exercise basic safety precautions including the following: Please read the entire set of instructions before installing or using this appliance. Please make this information available to the person installing the appliance – doing so could reduce your installation costs.
-
Page 6: Parts Supplied
PARTS SUPPLIED WALL RANGEHOOD, BOX CHIMNEY WITH EXTERNAL BLOWER HC60DCEXB3 & HC90DCEXB3 models INSTALLATION GUIDE NZ AU Rangehood Installation guide 200 mm diameter ducting adapter (1) and screws (4) Upper chimney Chimney Upper chimney bracket (1) Chimney bracket 30 mm self Expansion plug tapping screw... -
Page 7: Prior To Installation
PRIOR TO INSTALLATION Fisher & Paykel is not liable for any damage caused by not following these instructions. Please read the instructions carefully. Unpack the rangehood. Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency of the installation site. -
Page 8: Product Dimensions
PRODUCT DIMENSIONS PLAN PROFILE FRONT BOTTOM VIEW... - Page 9 PRODUCT DIMENSIONS HC60 HC90 PRODUCT DIMENSIONS A Maximum overall height of product 1035 1035 B Minimum overall height of the product C Overall width of product D Overall depth of product E Height of hood F Height of stainless strip G Width of chimney H Depth of chimney I Distance from centre of ducting outlet...
-
Page 10: Installation Height
INSTALLATION HEIGHT HEIGHT DIMENSIONS A Ducted installation Minimum height Maximum height 1035 B Height top of cooktop to base of product Electric cooktop min 600 – max 750 Gas cooktop min 650 – max 750 This rangehood must be installed no lower than the minimum height indicated in the table above. - Page 11 INSTALLATION HEIGHT Induction cooktop considerations Induction cooktops use energy efficient technology that only heats the contents of a cooking pot. Unlike gas or traditional electric cooktops, the surrounding air does not get heated when using an induction cooktop. As a result, rangehood filters, splashbacks and surrounding cabinetry do not get warmed up, increasing the likelihood of condensation on these cooler surfaces.
-
Page 12: Attachment Dimensions
ATTACHMENT DIMENSIONS Ceiling Upper chimney extension bracket attachment points Chimney bracket attachment points Upper hood attachment points Lower hood attachment points HC60 HC90 ATTACHMENT DIMENSION A Lower rangehood attachment point width B Lower rangehood attachment point height C Upper rangehood attachment point width D Upper rangehood attachment point height E Chimney bracket attachment point width F Chimney bracket attachment point height... -
Page 13: Venting Requirements
VENTING REQUIREMENTS Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. This rangehood is designed to operate with a Fisher & Paykel external blower with the exhaust air ducted externally from the kitchen. External blower rangehood installation is different from internal blower rangehood installation, please refer to the external blower installation guide for details. -
Page 14: Electricial Requirements
ELECTRICIAL REQUIREMENTS Rating plate location Before connecting the rangehood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location: MODEL FREQUENCY VOLTAGE HC60 50 Hz 230 V HC90 50 Hz 230 V... -
Page 15: Attach Brackets And Mounting Screws
ATTACH BRACKETS AND MOUNTING SCREWS Attach the chimney bracket and upper chimney bracket (if using the upper chimney) in the locations shown. Use the 30mm screws and expansion plugs if attaching to masonry. Attach the upper hood mounting screws. Use the 30mm screws and expansion plugs if attaching to masonry. -
Page 16: Prepare Rangehood
PREPARE RANGEHOOD Warning: Failure to install the screws or fixing device in accordance with these instructions may result in an electrical hazards. Place the ducting adapter onto the hood and screw it in place using the 10mm screws supplied. Remove the filters – pull the catch and tilt the filter downwards until it disengages from the supports. -
Page 17: Hang Rangehood
HANG RANGEHOOD Hang the rangehood off the upper rangehood mounting screws. Hang off the keyhole attachment points on the back of the rangehood then tighten the screws. Attach the lower rangehood mounting screws to fix the rangehood to the wall. Refit the filters. duct straight up Attach flexible ducting to the ducting adapter using aluminium... - Page 18 ATTACH CHIMNEY Bend the tabs on the chimney. Place chimney around the rangehood chassis and hang off the chimney bracket. Extend the upper chimney and attach to the upper chimney bracket with 10mm screws.
- Page 19 COMPLETE INSTALLATION External blower Roof Ducting Install the external blower (if not already installed), refer to rangehood external blower installation guide. Connect to the external blower and Ceiling plug the rangehood in. Power cords Power cord path...
-
Page 20: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER Flexible ducting 200mm (6m) 792961... -
Page 21: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER … Rangehood is correctly installed … All connections are secure … Connections have not pierced any electrical or water lines within the wall … Ducting has not been crushed or bent in any area’s …... - Page 24 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
