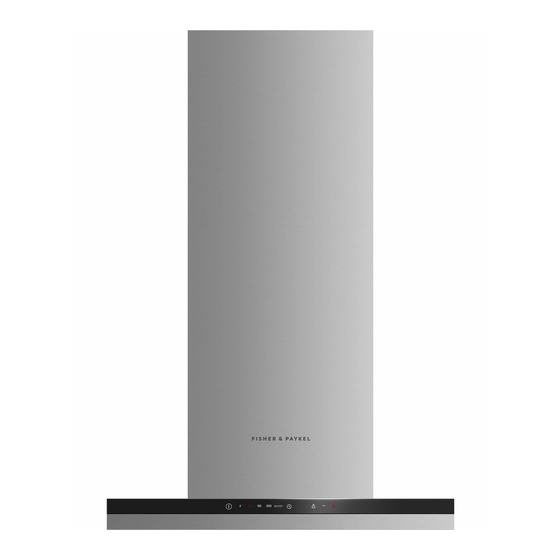

Fisher & Paykel HC60BCXB2 Operating Instructions

Operating Instructions
Touch Control Panel
https://producthelp.fisherpaykel.com/eu/Cook/Cooker_Hoods/Canopy/HC60BCXB2/User_Guide_HC60BCXB2/05_operating_i...
Control Panel Features
Power Turn the cooker hood on or off. The fan automatically turns on to
on/off operate at level 1.
Adjust the fan speed levels from 1 – 4 with 1 being the lowest level and
Fan
4 being the highest.
speed 1
– 4
The fan speed level icon illuminates red when selected.
Turn the fan onto boost speed. The icon flashes red when it is on. The
Boost cooker hood will operate on boost speed for 5 minutes and will then
revert to speed 4.
Turn the timer on. The fan operates for 5 minutes at the current speed
and each descending speed before turning off.
Timer
The timer icon flashes red when the filters need cleaning. To reset the
timer press the button and it will stop flashing and begin counting again.
Updated: Thu, 06 Jan 2022 01:29:29 GMT
