Page 1: User Manual

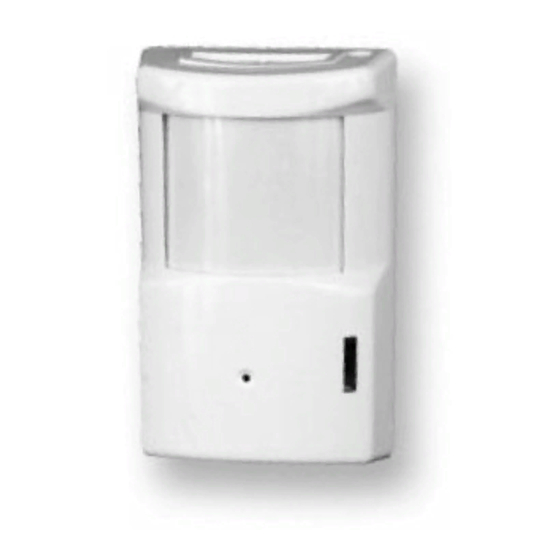

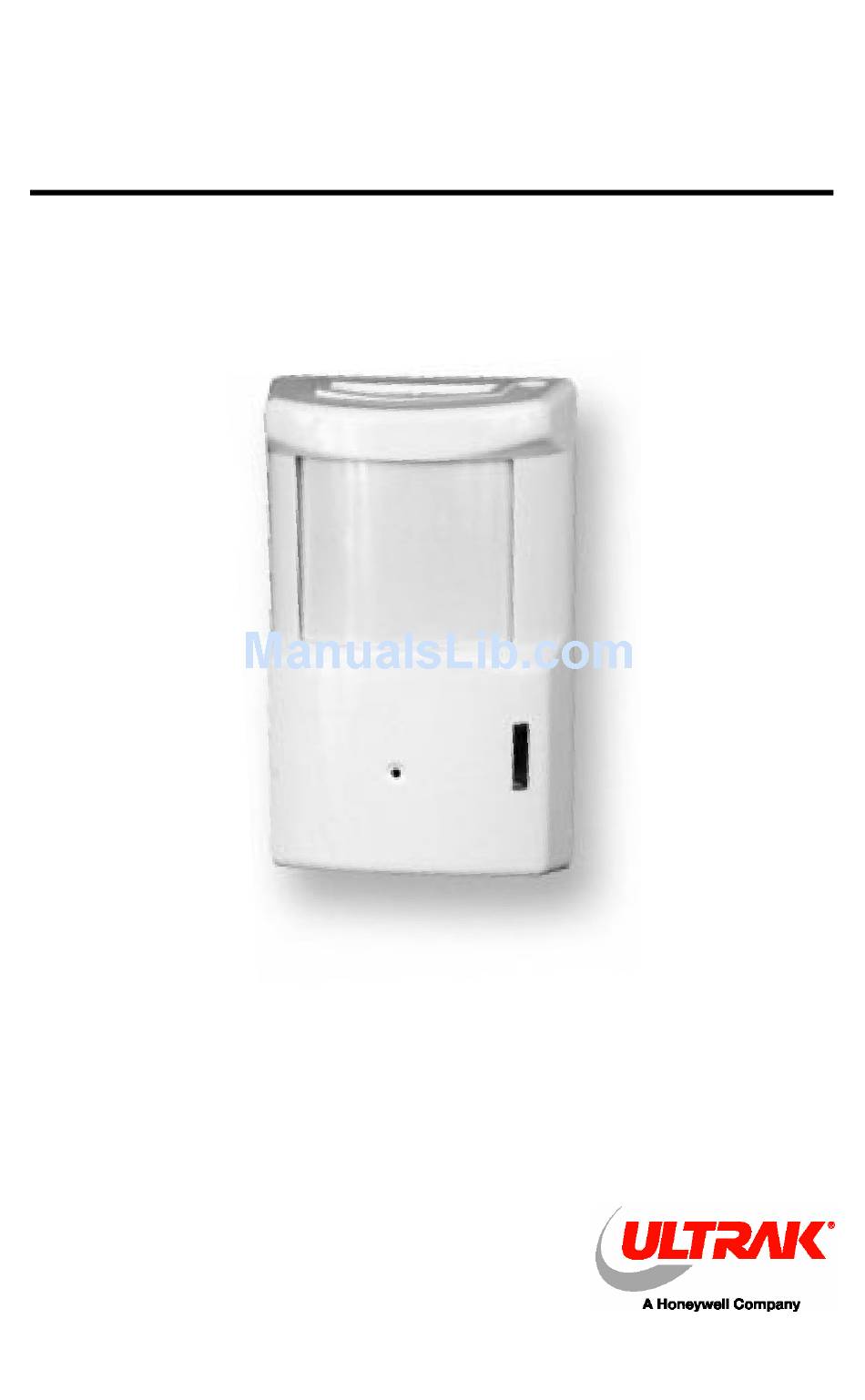

CSC100xU Series CSC110xU Series Covert Cameras USER MANUAL Rev. A CSMU000835 09/15/03... - Page 2 Rev. Date Description September 2003 Initial Release. ©2003 HONEYWELL INTERNATIONAL INC. ALL RIGHTS RESERVED HONEYWELL VIDEO SYSTEMS 1305 WATERS RIDGE DRIVE LEWISVILLE, TX 75057 (800) 796-CCTV ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM HONEYWELL VIDEO SYSTEMS.
- Page 3 WARNING • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE CAUTION C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1: INTRODUCTION ..............1 PRODUCT DESCRIPTION..............1 SECTION 2: INSTALLATION................ 2 BEFORE INSTALLING ............... 2 MOUNTING THE CAMERA............... 2 Setting dip switches ................5 WARM UP TIME ................. 5 WALK TESTING THE DETECTOR ........... 6 VOLTAGE REGULATION..............6 SECTION 3: SPECIFICATIONS .............. -
Page 5: Section 1: Introduction
Built-in voltage regulators prevent high voltage from reducing the life of the camera. The following models are covered in this manual: Covert Camera, Black & White CSC100BU Standard Resolution, Non-Functioning PIR Covert Camera, Color CSC100CU Standard Resolution Non-Functioning PIR Covert Camera, Black &... -
Page 6: Section 2: Installation
SECTION 2: INSTALLATION BEFORE INSTALLING Select a suitable location for the camera and enclosure. • Select a location where an intruder is most likely to cross the range of the detector. • Do not place the camera in front of windows subject to direct sunlight. - Page 7 MOUNTING THE CAMERA, CONTINUED Connector Block Screw Terminal Figure 1: PCB Layout (CSC100BU/CSC100CU) Indicator Switches Connector Relay Screw Pyro Sensor Relay Grounding Jumper Figure 2: PCB Layout (CSC110BU/CSC110CU) Rev. A CSMU000835 09/15/03...
- Page 8 MOUNTING THE CAMERA, CONTINUED 3. Use the provided knockouts to assist in mounting the unit. Use the side knockouts to mount the camera at an angle. Knock- outs Figure 3: Rear Housing Knockouts 4. Reattach the electronics board to the rear housing, making final wiring additions if needed.
-
Page 9: Setting Dip Switches
Relay Operation Relay N.C. Relay N.O. 6. Attach the front cover. 7. Connect the unit to a UL listed power supply or Ultrak observation system. WARM UP TIME The detector will warm up for the first 90 seconds after applying power. -
Page 10: Walk Testing The Detector
WALK TESTING THE DETECTOR A walk test is used to determine the lens coverage pattern of the detector and should be performed weekly. 1. Walk across the scope of the detector according to the detection pattern selected. Since the pattern is determined by the lens used in the detector, refer to the lens range diagram. -
Page 11: Section 3: Specifications
SECTION 3: SPECIFICATIONS CSC100BU CSC110BU CSC100CU CSC110CU Image Sensor 1/3” Interline Transfer CCD CCD Lens 3.6mm pinhole lens 3.7mm pinhole lens Horizontal Freq. 15.750 KHz (EIA) 15.734KHz (NTSC) Vertical Freq. 60Hz (EIA) 60Hz (NTSC) Picture Elements 510(H) x 492(V) (EIA) - Page 12 Honeywell Video Systems South Africa 1305 Waters Ridge Drive 53 Juta Street Lewisville, TX 75057 Braamfontein 2001 +1-800-796-2288 South Africa www.ademcovideo.com + 27-11-403-3002 www.teqtrader.com United Kingdom Italy Aston Fields Rd. Via della Resistenza, 53/59 Whitehouse Ind. Est 1 – 20090 Buccinasco Runcorn Milano UK WA7 3DL...
