Installation Guide

This section will explain how to perform a normal installation of a
PolyCom ViewStation 128 video conference device. This installation
requires that you have a television with an S-Video input and access to
the Internet.

Locate all the parts:

If you are missing a part listed stop and do not continue. Contact the
person who shipped you the device and confirm you have all the parts
you need to safely complete the installation. Missing or substandard
parts increase the likelihood that the unit will become damaged during
use.
© Copyright 2006, Oregon State University Extension Service

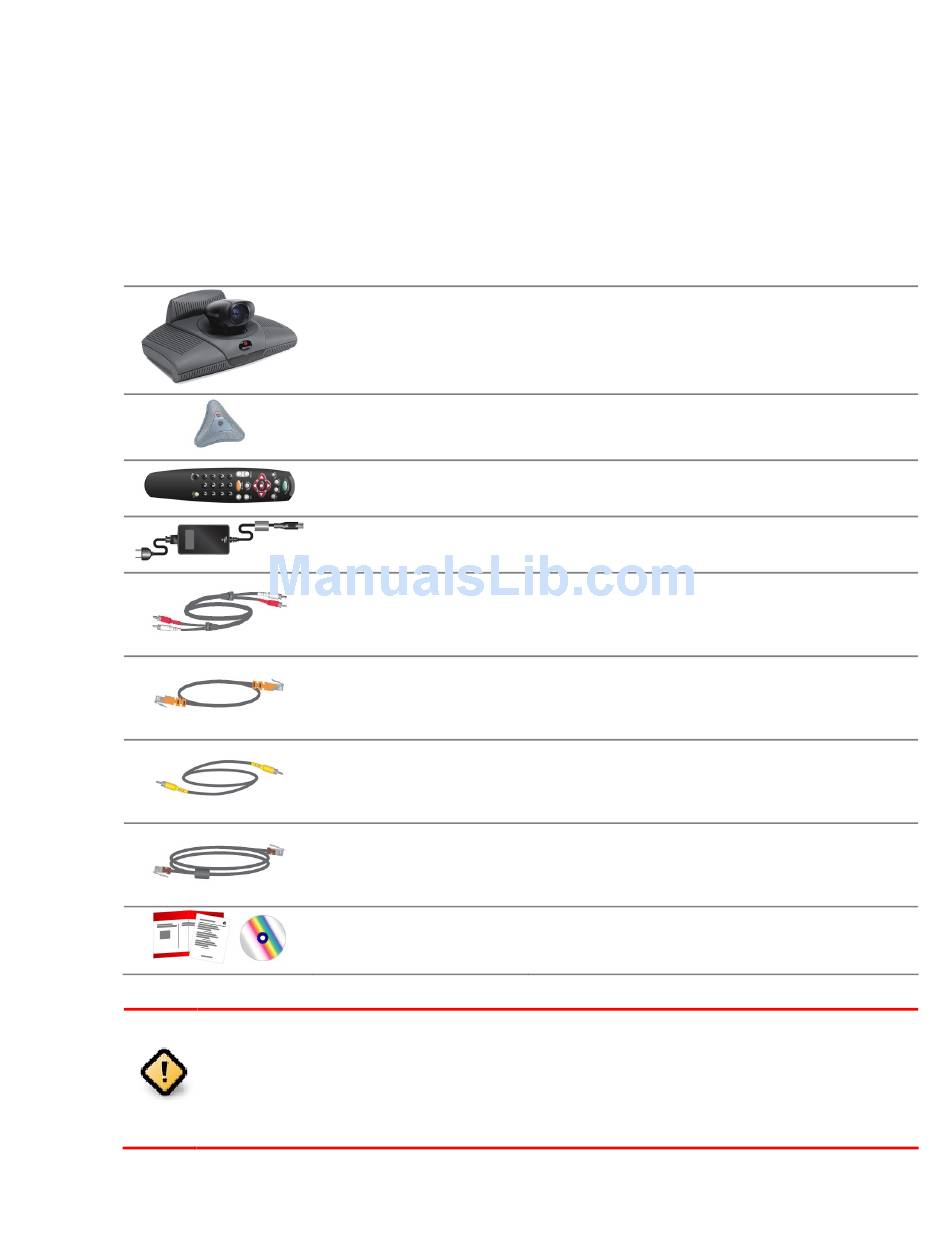

ViewStation 128
Base Unit
Microphone
Remote Control
Power Cable
Audio Cables
LAN Cable
Video Cable
Microphone Cables
Documentation
Page 5 of 24
http://extension.oregonstate.edu/esoc/ectu/
This is the camera for the
teleconferencing system. It is placed
on top of the television screen.
Used to increase the quality of voice
transmission.
This is the only way to control the
video conference device.
The cable plugs into a power outlet in
the wall in the conference room.
This cable is red and white tipped and
connects to the television's audio
inputs.
This cable is probably
and connects the video conference
device to the Internet.
This cable is yellow
connects the video conference device
to the television.
This cable is brown
connects the microphone to the video
conference device.
The manuals come on CDs and in
printed form.
orange tipped
tipped and
tipped and
