Installation Guide

This section will explain how to perform a normal installation of a
PolyCom VSX 5000 video conference device. This installation requires
that you have a television with an S-Video input and access to the
Internet.

Locate all the parts:

If you are missing a part listed stop and do not continue. Contact the
person who shipped you the device and confirm you have all the parts
you need to safely complete the installation. Missing or substandard
parts increase the likelihood that the unit will become damaged during
use.
© Copyright 2006, Oregon State University Extension Service

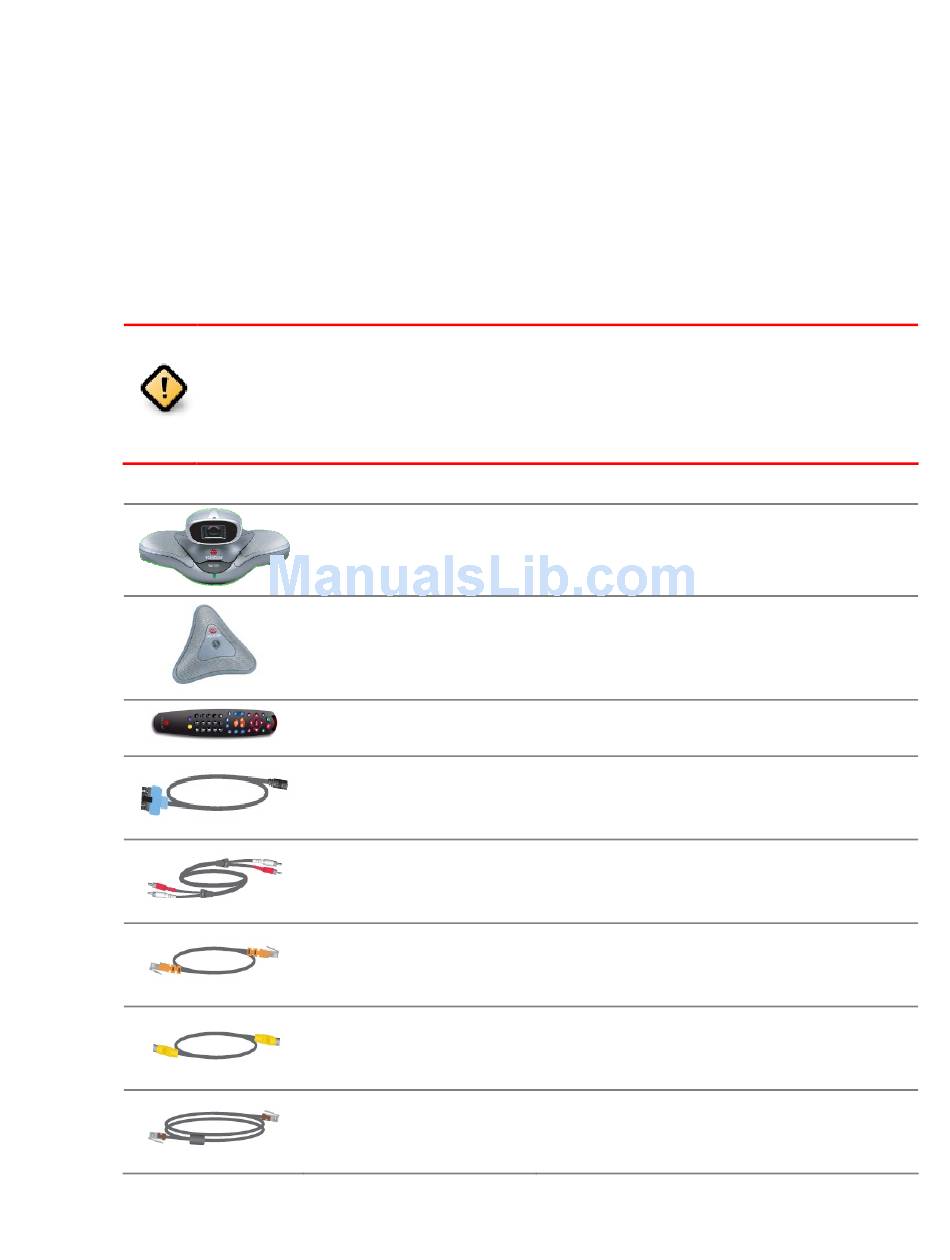

VSX 5000 Base Unit
Microphone
Remote Control
Power Cable
Audio Cables
LAN Cable
S-Video Cable
Microphone Cable
Page 5 of 23
http://extension.oregonstate.edu/esoc/ectu/
This is the camera for the video
conferencing system. It is placed on
top of the television screen.
Used to increase the quality of voice
transmission.
This is the only way to control the
video conference device.
The cable is blue tipped and
connects the base unit to the
subwoofer.
This cable is red and white tipped
and connects to the television's
audio inputs.
This cable is probably
and connects the video conference
device to the Internet.
This cable is yellow
connects the video conference device
to the television.
This cable is brown
connects the microphone to the
video conference device.
orange tipped
tipped and
tipped and
