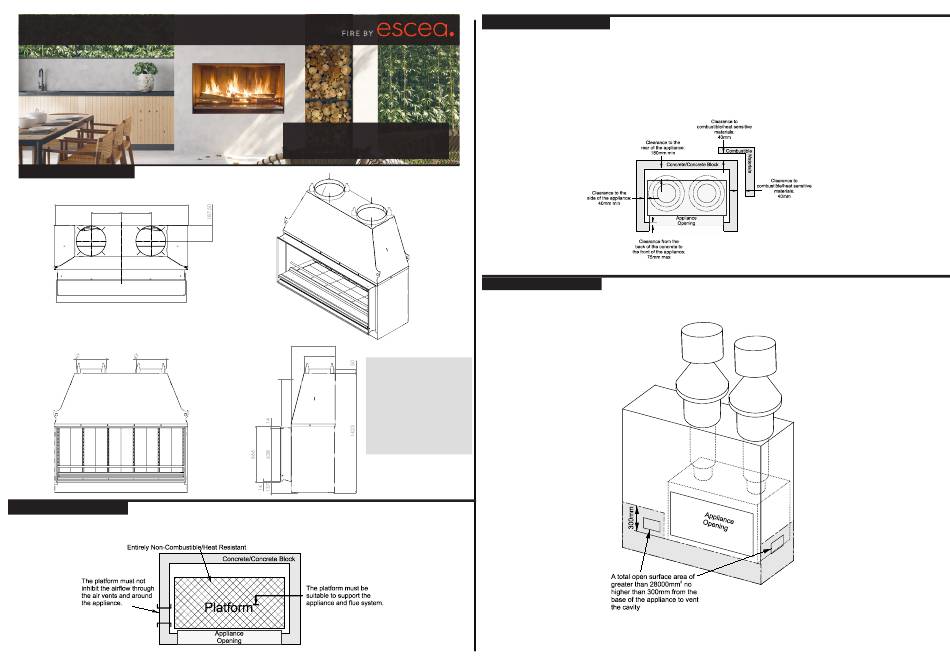

Escea EK1550 Information Sheet

EK1550
Information Sheet for Builders and Architects

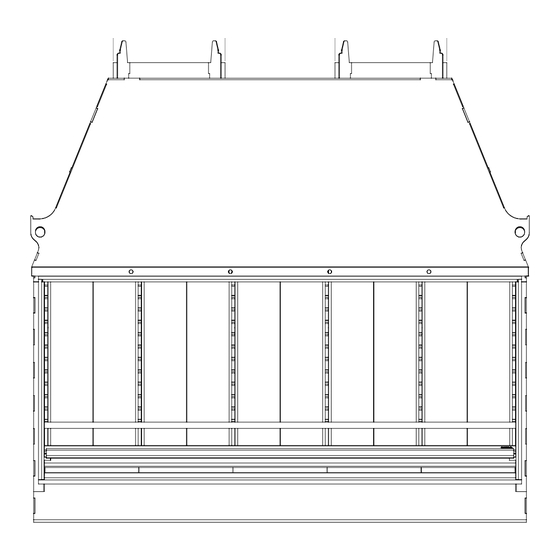

Appliance Information
1584
355 355
1519
1547
Flue: 350 ID Flue: 350 ID
Platform Construction
The fire must be securely fastened to the platform using the fixing points on the bottom of the fire. Please see the
Installation Manual for more details.
For further information or specifications, visit the
technical section of our website www.escea.com
to view the latest product Installation Manual.
530
375
Specifications
Suitable for outdoors only
121
Wood burning barbeque
and outdoor fire
Appliance Weight 460kg
The EK1550 requires 2 flues
for correct operation
Cavity Construction
Minimum Cavity Dimensions (mm):
When the fire is installed within the envelope of the building, the entire appliance must be fully enclosed in a concrete
material (concrete block and/or poured concrete) of 140mm thickness or greater. The firebox should be installed on the
platform prior to finishing the concrete surrounding the fire.
Cladding over the concrete cavity can consist of any non-combustible/heat resistant material.
Venting Requirements
The air vent(s) can be any size or shape, provided that the total combined surface area is at least 28000mm .
2
630472_0 EK1550 Builders and Architects Sheet
