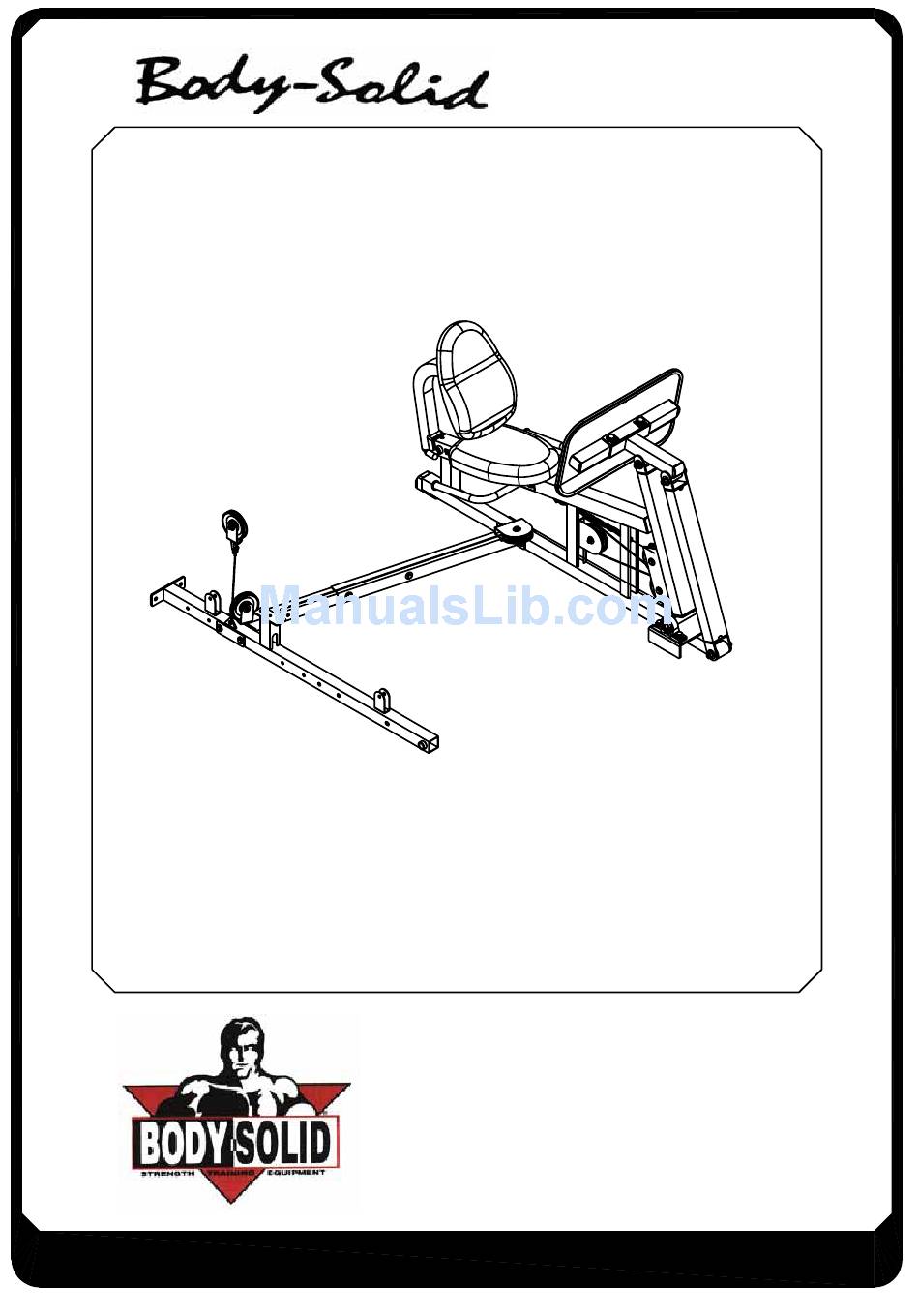

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL...
-
Page 2: Hardware Illustration
(A1)HEX BOLT 1/2"X3 1/4" PARTIAL THREAD QTY.2 (A2)HEX BOLT 3/8"X1 3/4" PARTIAL THREAD QTY.3 (A3)HEX BOLT 13/8"X2" PARTIAL THREAD QTY.2 (A4)HEX BOLT 3/8"X3" PARTIAL THREAD QTY.4 (A5)HEX BOLT 3/8"X3 1/4" PARTIAL THREAD QTY.2 (A7)HEX BOLT 3/8"X4 1/4" PARTIAL THREAD QTY.2 GLP-072004 Page... - Page 3 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A8)HEX BOLT 5/16"X1" PARTIAL THREAD QTY.4 (A9)HEX BOLT 5/16"X3 3/4" PARTIAL THREAD QTY.2 (A10)HEX BOLT 3/8"X2 1/2" PARTIAL THREAD QTY.2 GLP-072004 Page...
- Page 4 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT 1/2" QTY.2 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.6 (B2)NYLON LOCK NUT 3/8" QTY.15 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.4 (C2)3/8"(I.D.)FLAT WASHER 27 QTY.30 (C3) 5/16"SPRING WASHER QTY.6 GLP-072004 Page...
- Page 5 GLP ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D1. n 6 Spring Snap Link (8810-001)--------------------------[1PCS] 50x2.5T Round End Cap (9211-088)-------------------[4PCS] D3. 2"x2" Foot Cap (9211-025)----------------------------------[1PCS] D4. 45X60 Nylon Bushing (9211-047)-------------------------[1PCS] 5X50 Rubber Dount(9212-039)----------------------------[1PCS] 1 Round End Cap (9260-021)------------------------------[2PCS] 205 Steel Cable-------------------------------------------------[1PCS] 4 1/4" Pulley(9213-002C)------------------------------------[5PCS]...
- Page 6 GLP ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A1[1PCS] D[1PCS] C[1PCS] E[1PCS] F[1PCS] K[2PCS] G[1PCS] J[2PCS] H[2PCS] 8510-005 8312-090 L[1PCS] M[1PCS] N[1PCS] 9121-045 9111-049 Page 3 GLP-072004...
- Page 7 GLP-072004 IF Mode A: 50X50 Steel Tube ues A4 Bolt for G6B,G5S--(2PCS each) IF Mode B: 50X75 Steel Tube 5/8"x109L Shaft x2 ues A7 Bolt for G10B--(2PCS each) 1/2" Washer x4 1/2" Nylon Lock Nut x4 Mode B:50X75 Steel Tube...
- Page 8 GLP-072004 C4x4 C3x4 A8x4 C1x2 B1x2 PAGE 5...
- Page 9 GLP-072004 B2x2 C2x2 C2x2 D9x2 A3x2 PAGE 6...
- Page 10 GLP-072004 Suitable to model:G6B,G5S,G10B Suitable to model:G2B,G3S,G4I PAGE 7...
