Installation and
Operation Manual

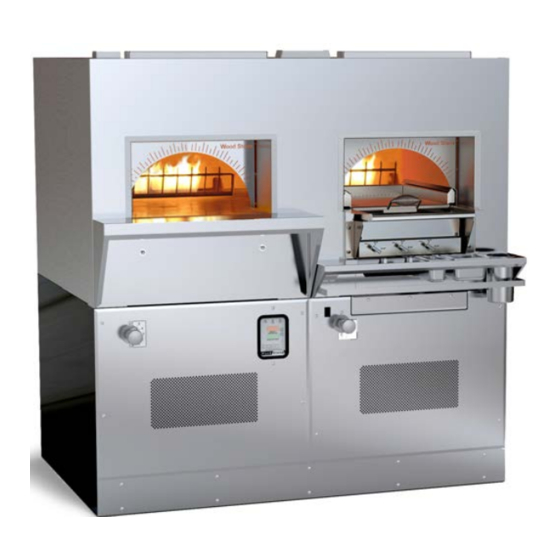

DESIGNER SERIES 1
Stone Hearth Oven
Gas-Fired, Gas/Wood Combination
with Broiler Option Models
DESIGNER SERIES 6348 WS-DS1-4048
DESIGNER SERIES 7248 WS-DS1-7248
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0078.03
REVISED November 2014
Advertisement
Table of Contents
Related Manuals for Wood Stone DESIGNER SERIES 6348 WS-DS1-4048
Summary of Contents for Wood Stone DESIGNER SERIES 6348 WS-DS1-4048
- Page 1 Installation and Operation Manual DESIGNER SERIES 1 Stone Hearth Oven Gas-Fired, Gas/Wood Combination with Broiler Option Models DESIGNER SERIES 6348 WS-DS1-4048 DESIGNER SERIES 7248 WS-DS1-7248 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166...
-
Page 2: Table Of Contents
ELECTRICAL DIAGRAM � � � � � � � � � � � � � � � � 21 LIMITED WARRANTY � � � � � � � � � � � � � � � � � 23 Wood Stone Corporation Toll Free 800.988.8103 1801 W. -
Page 3: Designer Series
DESIGNER SERIES Designer Series 1 w/ Broiler Option Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE DESIGNER SERIES OVEN NATURAL GAS OR PROPANE FUELED STONE HEARTH OVEN DESIGNER SERIES MODELS WS-DS1-(6348,7248)-(RFG)-(MB)-(NG, LP)-(W) (-MB MODELS WITH BROILER OPTION) -
Page 4: Cautions & Warnings
Designer Series 1 w/ Broiler Option Installation and Operation Manual INSTALLATION AND OPERATING INSTRUCTIONS FOR THE WOOD STONE DESIGNER SERIES OVEN WITH BROILER OPTION RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�... - Page 5 WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts. SAVE THE INSTRUCTIONS Wood Stone’s Designer Series ovens have been tested and approved by Intertek Testing Services and are ETL listed to ANSI Z83.11b-2009 / CSA 1.8b-2009, UL Subject 2162, UL 737, ULC-S627-00 and to ANSI/NSF 4 - 2009.
-
Page 6: 6348 Specifications
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION ANY REPRESENTATION OR USE IN PART OR AS A THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION ANY REPRESENTATION OR USE IN PART OR AS A... -
Page 7: 7248 Specifications
An ongoing program of product improvement may require us to change 154,000 BTU, NG 120VAC, Less than 5A 120VAC, Less than 5A WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS HE INFORMATION CONTAINED IN THIS DRAWING IS THE THE INFORMATION CONTAINED IN THIS DRAWING IS THE info@woodstone-corp.com or visit woodstone-corp.com 154,000 BTU, LP specifications without notice. -
Page 8: Moving The Oven
LIFTING THE OVEN – 6,000 LBS. FORKLIFT REQUIRED The Wood Stone Designer Series 7248 oven weighs approximately 4,500 lbs� The oven may be moved using a forklift using the forklift pockets provided at the front and rear of the unit� The oven may also be moved using a pallet jack� If the oven is to be installed against a wall, you may need to leave access to the back of the oven to complete the utility connections�... -
Page 9: Installation Clearances
1. The Wood Stone Designer Series Oven must have a minimum 1-inch clearance to combustibles from all sides, 7 inch clearance to combustibles from the top� If building a facade that will contact the oven, use completely non-combustible materials� Any facade wall on the front of the oven must be of non-combustible construction�... -
Page 10: Venting
Installation and Operation Manual All Wood Stone Designer Series ovens must be vented using a Listed Type 1 exhaust hood or one that is constructed and installed in accordance with all relevant local and national codes� Wood Stone offers eyebrow-type hoods designed specifically for Wood Stone ovens�... -
Page 11: Utility Connections
A 3/4 inch full-flow gas shut-off valve (supplied by others) must be installed on the gas supply near the oven in such a way that it is readily accessible� UTILITY LOCATIONS Utility locations shown below as left-side configuration� Right-side configuration would mirror left-side configuration� Wood Stone Corporation Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166... -
Page 12: Oven Gas Specifications
Propane (LP): 9�5" W�C� TOTAL BTU/HR RATING See data plate for your specific model. This information can also be found on the data plate located beneath the oven� Wood Stone Corporation Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166... -
Page 13: Broiler Gas Specifications
Broiler pressure regulator Located underneath the broiler, accessed behind the front service panel Broiler pressure regulator Close-up view Wood Stone Corporation Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 14: Oven Controller
WAIT 5 MINUTES BEFORE RELIGHTING and Celsius temperature ATTENDRE 5 MINUTES AVANT DE RÉALLUMER scales in display screens 1-800-988-8103 www.woodstone-corp.com Wood Stone Corporation Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 15: Initial Oven Start-Up
INITIAL OVEN START-UP NOTE: The ceramic materials used in the construction of your Wood Stone oven will absorb moisture if exposed to high humidity or damp conditions during shipment from the factory or extended periods of storage before installation� Occasionally, through the course of the Initial Start-Up, as the oven heats up it is possible that you will see some water dripping from the sides of the oven as moisture is driven out of the ceramic�... - Page 16 INITIAL RFG-IR OVEN START-UP NOTE: The ceramic materials used in the construction of your Wood Stone oven will absorb moisture if exposed to high humidity or damp conditions during shipment from the factory or extended periods of storage before installation� Occasionally, through the course of the initial start-up, as the oven heats up it is possible that you will see some water dripping from the sides of the oven as moisture is driven out of the ceramic�...
-
Page 17: Daily Operation
Use a natural fiber brush—always brushing away from the radiant burner well� For deeper cleaning, use a brass bristled brush� The oven floor can be then cleaned with a damp rag wrapped around the brass bristled brush head� (Wood Stone offers an assortment of oven brushes available through your dealer�... -
Page 18: Broiler Operation
Turn off the oven and broiler until the gas smell clears. If you suspect a problem with the oven or broiler, contact the Wood Stone Service Department immediately. Do not attempt to run the oven or the broiler until the problem is identified and corrected. -
Page 19: Daily Maintenance
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush—always brushing away from the radiant burner well� For deeper cleaning, use a brass bristled brush�... -
Page 20: Troubleshooting Guide
2. Damaged thermocouple� Contact Wood Stone for assistance� Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our service hours are 8am to 4:30pm Pacific Standard Time. Follow the recorded instructions for Emergency Service if you require assistance during non-business hours. -
Page 21: Interior Light Circuit
INTERIOR LIGHT CIRCUIT Designer Series 1 w/ Broiler Option Installation and Operation Manual OPTIONAL INTERIOR LIGHT CIRCUIT Wood Stone Corporation Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com... -
Page 22: Electrical Diagram
ELECTRICAL DIAGRAM Designer Series 1 w/ Broiler Option Installation and Operation Manual 2 RADIANT BURNER TYPE 4 CONTROLLER 120 VAC Dual RFG XFMR Junction CB 4A Pink White Left Radiant White 110-120 VAC 50/60Hz wired by others Temperature Controller Thermo Brown Couple Control Panel Type 4... - Page 23 ELECTRICAL DIAGRAM Designer Series 1 w/ Broiler Option Installation and Operation Manual 1 RADIANT BURNER - IR BURNER TYPE 2 CONTROLLER 120 VAC IR w/ Dual RFG Temperature Controller Control Panel Type 2 Infrared White Thermo TB4-R Couple TB4-Y Yellow TB3-2 5 orange TB3-5...
-
Page 24: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
