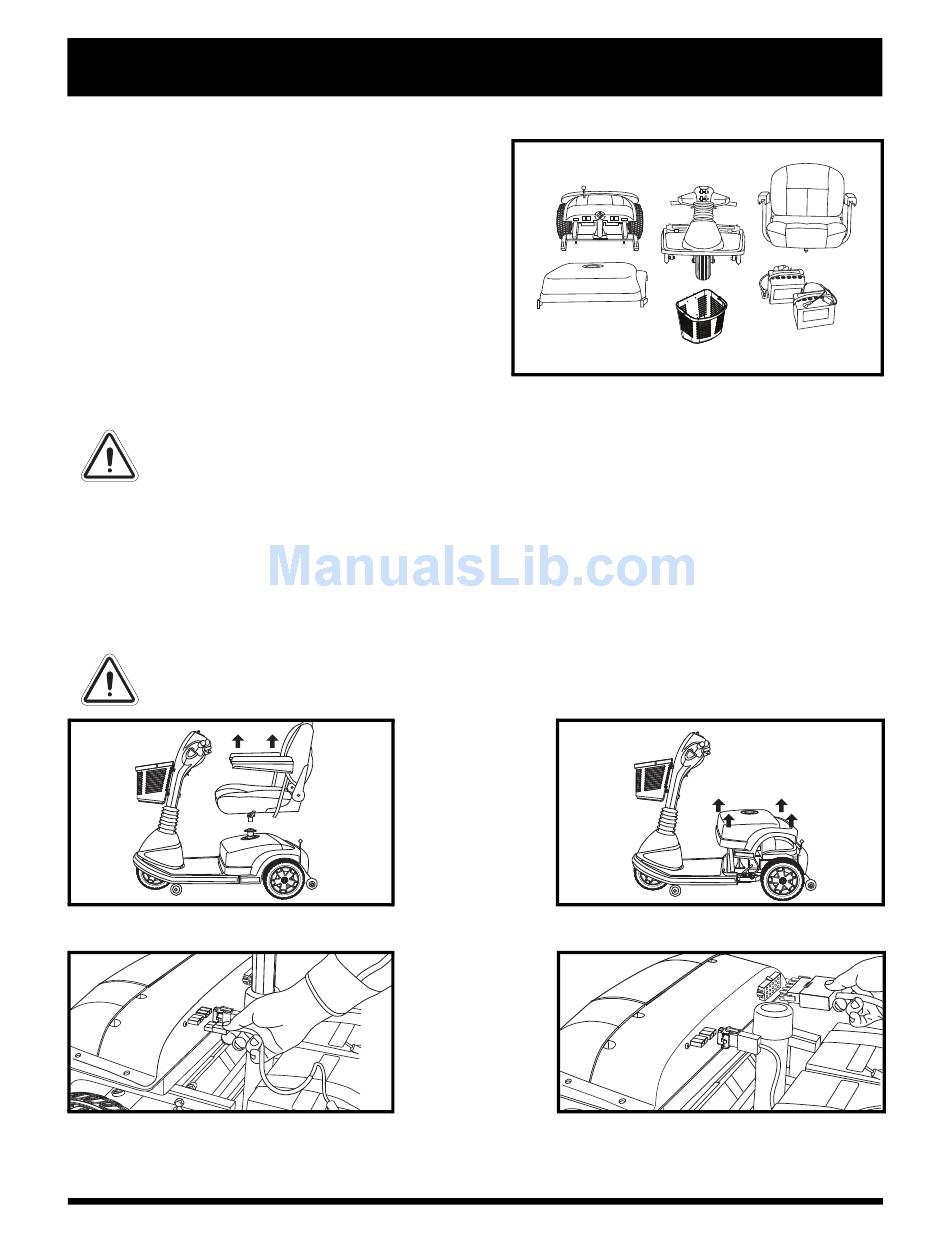

V I I . D I S A S S E M B L Y A N D A S S E M B L Y
DISASSEMBLY
You can disassemble the scooter into several pieces:
the seat, the front section, the rear section, the rear
shroud, the basket and the batteries. See figure 16.
No tools are required to disassemble or assemble
your scooter, but keep in mind that the disassembled
sections of the scooter take up more floor space than
the assembled unit. Always disassemble or assemble
your scooter on a level, dry surface with sufficient
room for you to work and move around your
scooter—about 2 metres (5 feet) in all directions.
Remember that some scooter components are heavy
and you may need assistance when lifting them.
WARNING! Do not lift beyond your physical capability. Ask for assistance when
necessary while disassembling or assembling your scooter.
To disassemble the scooter:
1. Place the manual freewheel lever in the drive (down) position.
2. Lift the seat straight up and off the scooter. See figure 17.
3. Gently lift the rear shroud off of the scooter. See figure 18.
4. Disconnect the battery tie-down strap that holds the batteries in place.
5. Unplug both black and white 2-pin battery harnesses. See figure 19.
6. Unplug the front-to-rear harness from its mating plug. See figure 20.
WARNING! Failure to unplug both battery harnesses and the front-to-rear harness prior to
frame separation could result in permanent damage to the scooter.
Figure 17. Seat Removal
Figure 19. Disconnecting The Battery Har-
nesses
30
REAR SECTION
REAR SHROUD
Figure 16. The Scooter Disassembled
www.pridemobility.com
FRONT SECTION
BASKET
Figure 18. Rear Shroud Removal
Figure 20. Disconnecting The Front-To-Rear
Harness
SEAT
BATTERIES
Maxima
